LTC2310-14
14-Bit + Sign, 2Msps Differential Input ADC with Wide Input Common Mode Range
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 2Msps Throughput Rate
- ±2.5LSB INL Guaranteed
- Guaranteed 14-Bit, No Missing Codes
- 8VP-P Differential Inputs with Wide Input Common Mode Range

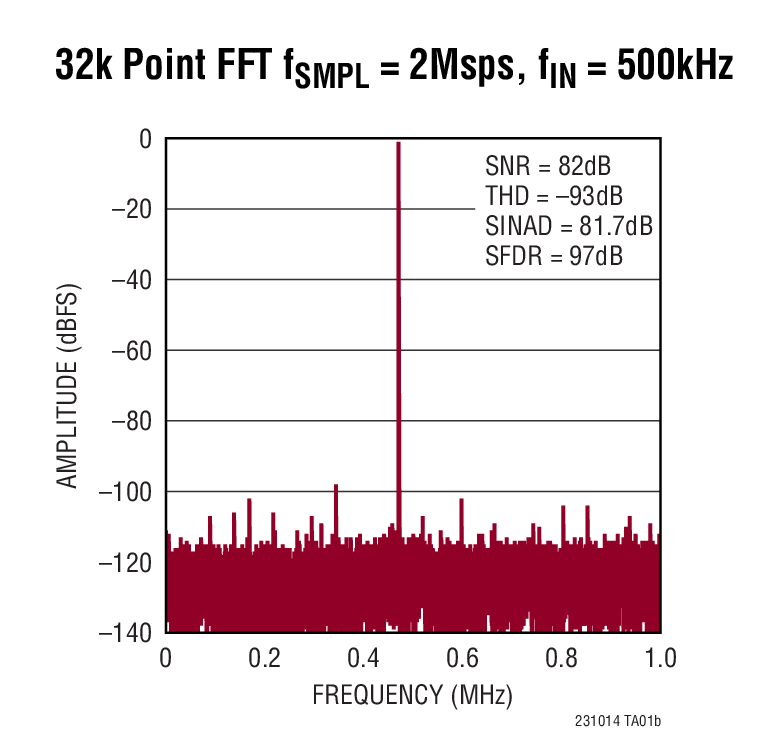

- 82dB SNR (Typ) at fIN = 500kHz
- –93dB THD (Typ) at fIN = 500kHz
- No Cycle Latency
- Guaranteed Operation –40°C to 125°C
- Single 3.3V or 5V Supply
- Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference with 1.25V External Reference Input
- 1.8V to 2.5V I/O Voltages
- CMOS or LVDS SPI-Compatible Serial I/O
- Power Dissipation 35mW at VDD = 5V (Typ)

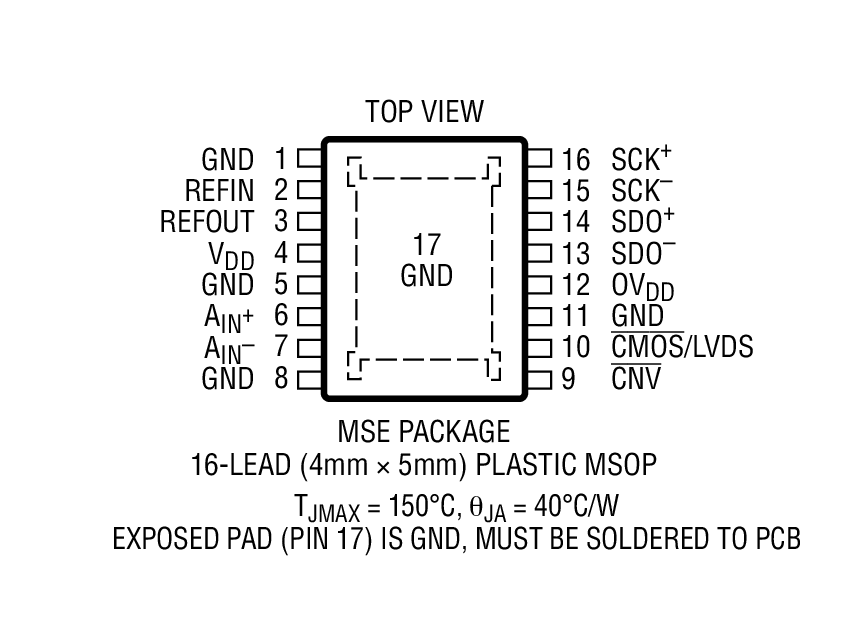

- Small 16-Lead (4mm × 5mm) MSOP Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

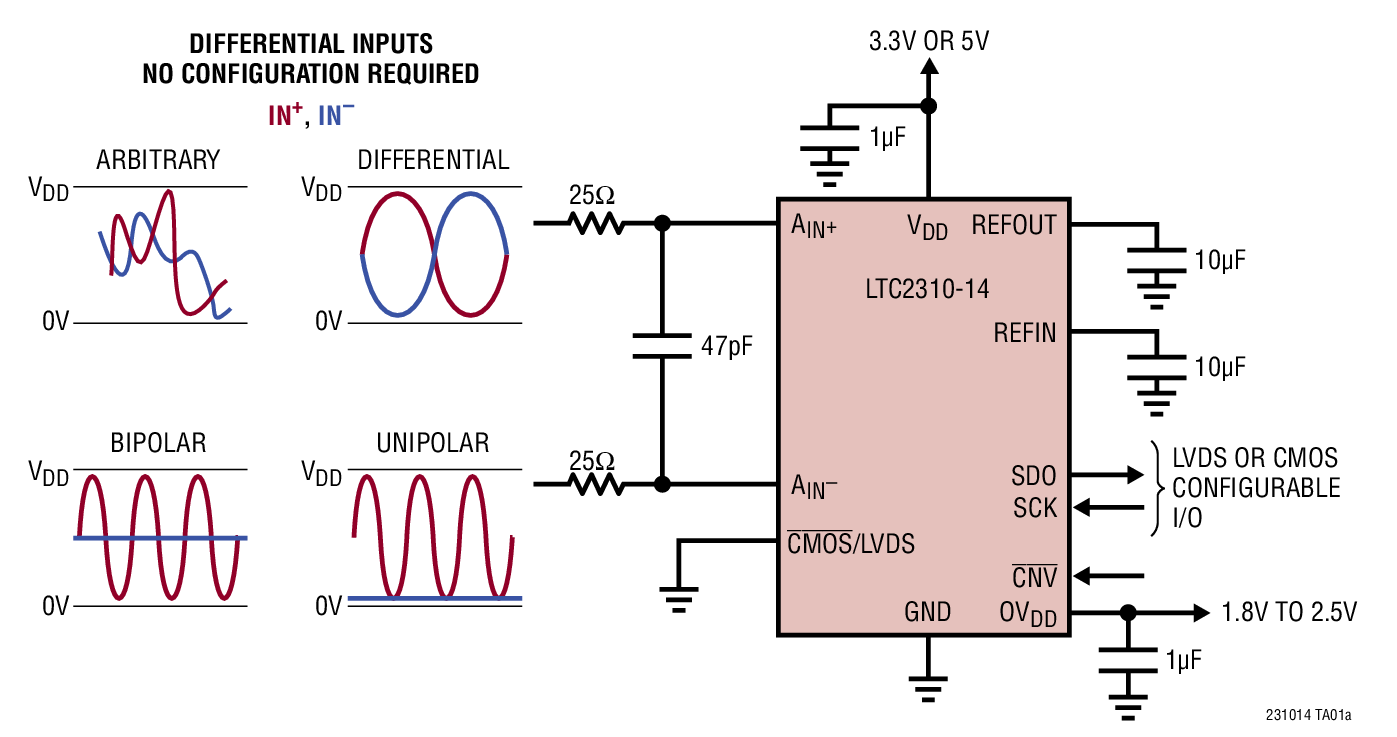

The LTC2310-14 is a low noise, high speed 14-bit + sign successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2310-14 has an 8VP-P differential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2310-14 achieves ±2.5LSB INL guaranteed, no missing codes at 14 bits and 82dB SNR typical.
The LTC2310-14 has an onboard low drift (20ppm/°C max) 2.048V or 4.096V temperature-compensated reference and provides an external 1.25V buffered reference input. The LTC2310-14 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 2Msps throughput with no cycle latency makes the LTC2310-14 ideally suited for a wide variety of high speed applications. The LTC2310-14 dissipates only 35mW with a 5V supply and offers nap and sleep modes to reduce the power consumption for further power savings during inactive periods.
Applications
- High Speed Data Acquisition Systems
- Communications
- Remote Data Acquisition
- Imaging
- Optical Networking
- Automotive
- Multiphase Motor Control
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC2310-14
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
Reliability Data
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
518.00K
Reliability Data
1
43.73 K
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC2310CMSE-14#PBF |
16-Lead MSOP w/ EP
|
|
|
| LTC2310CMSE-14#TRPBF |
16-Lead MSOP w/ EP
|
|
|
| LTC2310HMSE-14#PBF |
16-Lead MSOP w/ EP
|
|
|
| LTC2310HMSE-14#TRPBF |
16-Lead MSOP w/ EP
|
|
|
| LTC2310IMSE-14#PBF |
16-Lead MSOP w/ EP
|
|
|
| LTC2310IMSE-14#TRPBF |
16-Lead MSOP w/ EP
|
|
- LTC2310CMSE-14#PBF
- Pin/Package Drawing
-
16-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2310CMSE-14#TRPBF
- Pin/Package Drawing
-
16-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2310HMSE-14#PBF
- Pin/Package Drawing
-
16-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2310HMSE-14#TRPBF
- Pin/Package Drawing
-
16-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2310IMSE-14#PBF
- Pin/Package Drawing
-
16-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2310IMSE-14#TRPBF
- Pin/Package Drawing
-
16-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 5, 2024
- 24_0004
Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
LTC2310CMSE-14#PBF
PRODUCTION
LTC2310CMSE-14#TRPBF
PRODUCTION
LTC2310IMSE-14#PBF
PRODUCTION
LTC2310IMSE-14#TRPBF
PRODUCTION
Feb 4, 2020
- 20_0132
Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC
LTC2310CMSE-14#PBF
PRODUCTION
LTC2310CMSE-14#TRPBF
PRODUCTION
LTC2310HMSE-14#PBF
PRODUCTION
LTC2310HMSE-14#TRPBF
PRODUCTION
LTC2310IMSE-14#PBF
PRODUCTION
LTC2310IMSE-14#TRPBF
PRODUCTION
Oct 11, 2022
- 22_0244
Epoxy Change from Henkel 8290 to 8290A for MSOP Package
LTC2310HMSE-14#PBF
PRODUCTION
LTC2310HMSE-14#TRPBF
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 5, 2024
- 24_0004
Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
LTC2310CMSE-14#PBF
PRODUCTION
LTC2310CMSE-14#TRPBF
PRODUCTION
LTC2310IMSE-14#PBF
PRODUCTION
LTC2310IMSE-14#TRPBF
PRODUCTION
Feb 4, 2020
- 20_0132
Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC
LTC2310CMSE-14#PBF
PRODUCTION
LTC2310CMSE-14#TRPBF
PRODUCTION
LTC2310HMSE-14#PBF
PRODUCTION
LTC2310HMSE-14#TRPBF
PRODUCTION
LTC2310IMSE-14#PBF
PRODUCTION
LTC2310IMSE-14#TRPBF
PRODUCTION
Oct 11, 2022
- 22_0244
Epoxy Change from Henkel 8290 to 8290A for MSOP Package
LTC2310HMSE-14#PBF
PRODUCTION
LTC2310HMSE-14#TRPBF
PRODUCTION
Evaluation Kits 1
DC2425A-D
LTC2310-14 Demo Board | 14-Bit, 2Msps True Differential Input Serial SAR ADC (Req DC890)
Product Detail
Demonstration circuit 2425A features the LTC2311 family. With up to 5Msps, these differential, single channel, 16-bit, serial, high speed successive approximation register (SAR) ADCs are available in a 16-lead MSOP package. The LTC2311 family has an internal 20ppm/°C maximum drift reference and an SPI-compatible serial interface that supports CMOS and LVDS logic. Note the demo board is configured for CMOS operation by default; see the note under JP3 for LVDS operation. The demo manual refers to the LTC2311, but applies to all members of the family, the only difference being the sample rate and/or the number of bits.
