Overview

Features and Benefits

  • Sample Rate: 65Msps
  • 72dB SNR and 85dB SFDR (3.2V Range)
  • 70.5dB SNR and 87dB SFDR (2V Range)
  • No Missing Codes
  • Single 5V Supply
  • Power Dissipation: 1.275W
  • Selectable Input Ranges: ±1V or ±1.6V
  • 240MHz Full Power Bandwidth S/H
  • Pin Compatible Family
    25Msps: LTC1746 (14-Bit), LTC1745(12-Bit)
    50Msps: LTC1744 (14-Bit), LTC1743(12-Bit)
    65Msps: LTC1742 (14-Bit), LTC1741(12-Bit)
    80Msps: LTC1748 (14-Bit), LTC1747(12-Bit)

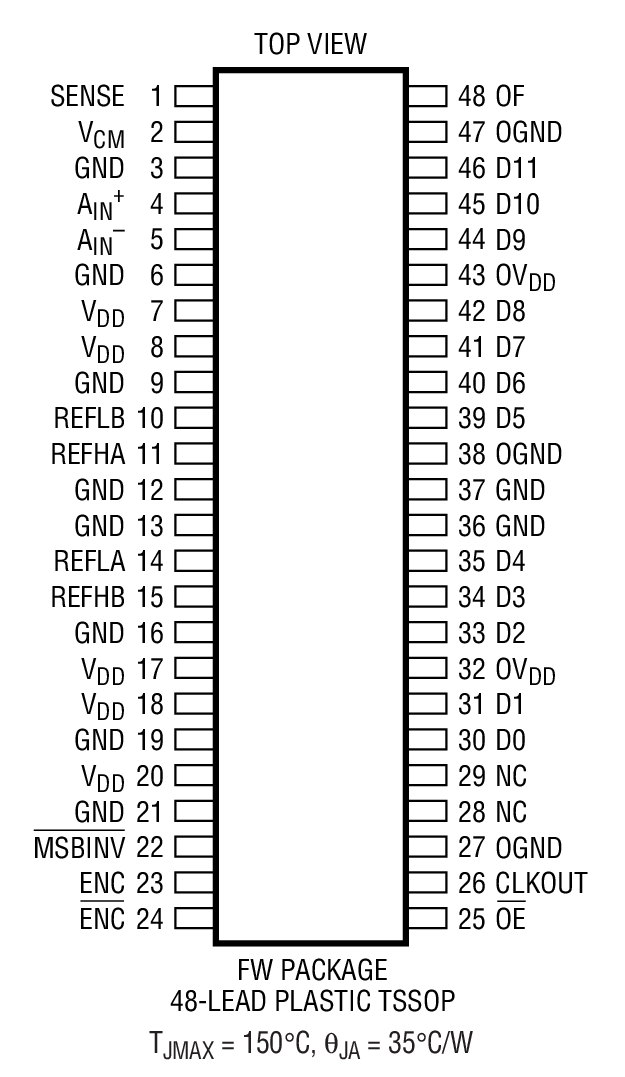

  • 48-Pin TSSOP Package

Product Details

The LTC1741 is an 65Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Pin selectable input ranges of ±1V and ±1.6V along with a resistor programmable mode allow the LTC1741’s input range to be optimized for a wide variety of applications.

The LTC1741 is perfect for demanding communications applications with AC performance that includes 72dB SNR and 85dB spurious free dynamic range. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies of up to 70MHz with excellent noise performance. DC specs include ±1 LSB INL and ±0.8LSB DNL over temperature.

The digital interface is compatible with 5V, 3V, 2V and LVDS logic systems. The ENC and ENC inputs may be driven differentially from PECL, GTL and other low swing logic families or from single-ended TTL or CMOS. The low noise, high gain ENC and ENC inputs may also be driven by a sinusoidal signal without degrading performance. A separate output power supply can be operated from 0.5V to 5V, making it easy to connect directly to any low voltage DSPs or FIFOs.

The TSSOP package with a flow-through pinout simplifies the board layout.

Applications

  • Telecommunications
  • Receivers
  • Cellular Base Stations
  • Spectrum Analysis
  • Imaging Systems

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (2)

Documentation & Resources

  • View All (4)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Product Selector Card (1)
    • Document Type

    Software & Systems Requirements

    Evaluation Software

    LinearLab Tools
    A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

    PScope
    The PScope System is a USB-based product demonstration and data acquisition system for use with high performance ADCs and signal chain receiver family. PScope allows users to evaluate the SNR, SFDR, THD, as well as other key parameters, quickly and easily.

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC1741CFW#PBF Material Declaration Reliability Data 48-Lead TSSOP
    LTC1741CFW#TRPBF Material Declaration Reliability Data 48-Lead TSSOP
    LTC1741IFW#PBF Material Declaration Reliability Data 48-Lead TSSOP
    LTC1741IFW#TRPBF Material Declaration Reliability Data 48-Lead TSSOP
    Wafer Fabrication Data R380 Reliability Data
