  5. LTC1706-19


Features and Benefits

  • Programs Regulator Output Voltage from 1.3V to 2V in 50mV Steps
  • Programs an Entire Family of DC/DC Converters
  • Fully Compliant with the Intel Mobile VID Specification
  • ±0.25% Accurate Output Voltage
  • Built-In 40k Pull-Up Resistors on VID Inputs

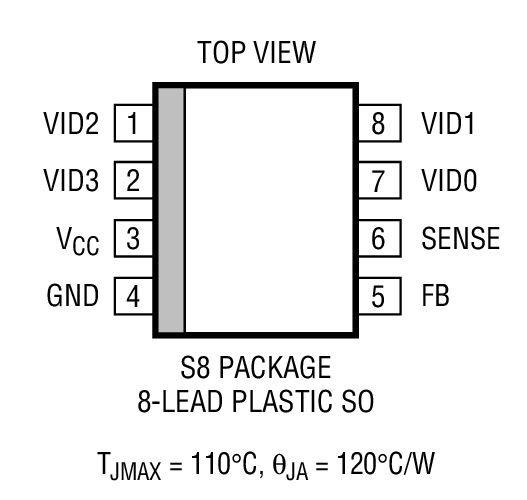

  • Available in SO-8 Packaging

Product Details

The LTC1706-19 is a precision, digitally programmed, resistive ladder which adjusts the output of any 1.19V referenced regulator. Depending on the state of the four VID inputs, an output voltage between 1.3V and 2V is programmed in 50mV increments.

The LTC1706-19 is designed specifically to program an entire family of DC/DC converters in full compliance with the Intel Mobile VID specification.

The LTC1706-19 programs the following DC/DC converter products: LTC1433, LTC1434, LTC1435, LTC1435A, LTC1436, LTC1437, LTC1438, LTC1439, LTC1538-AUX, LTC1539, LTC1624 and LTC1625. (Consult Analog Devices for future compatible DC/DC converter products.)

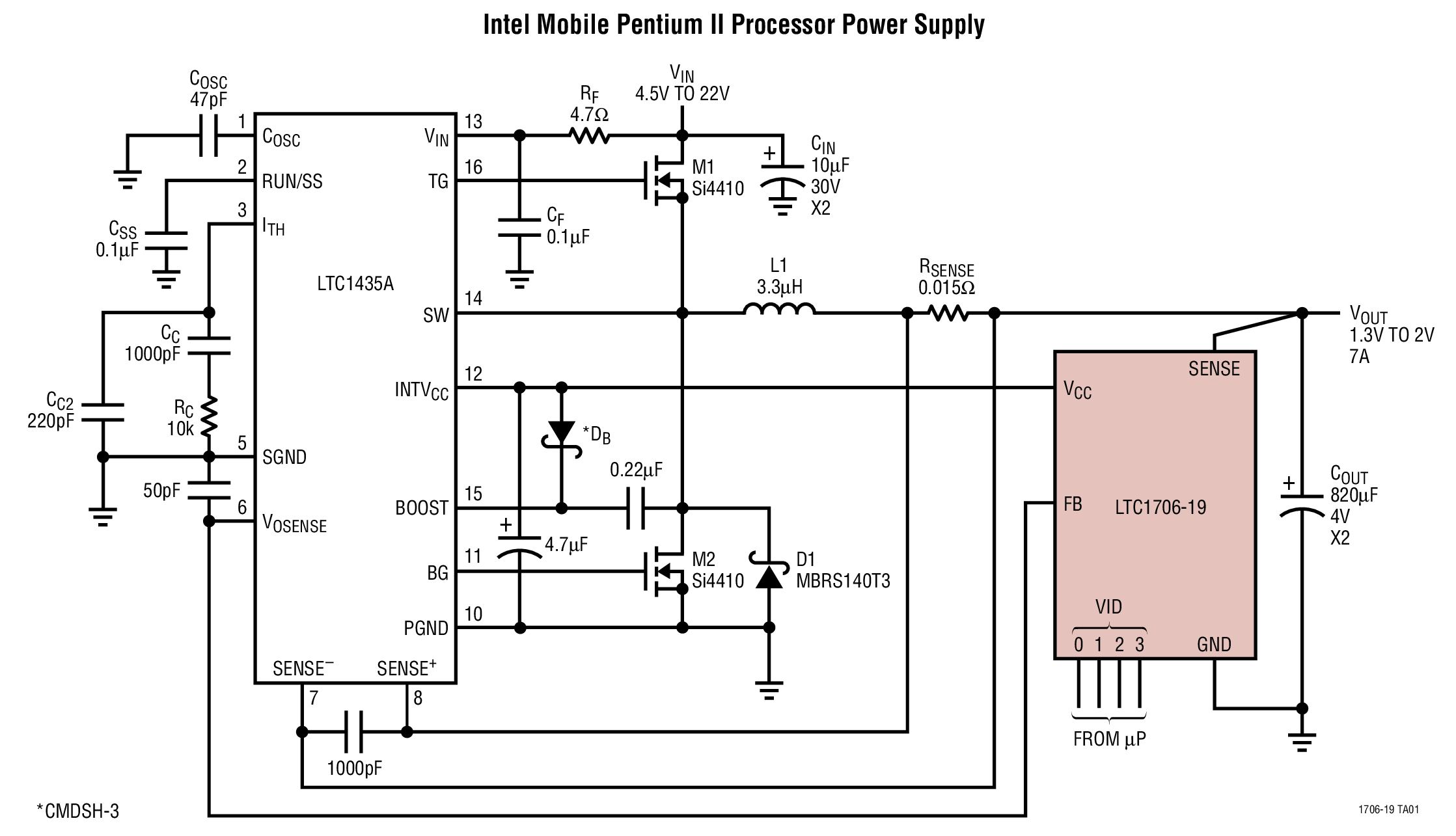

  • Intel Mobile Pentium® II Processor Power Supply
  • Notebook and Palmtop Computers, PDAs
  • Portable Instruments
  • Battery-Powered Equipment

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
