LTC1693-5

High Speed Single P-Channel MOSFET Driver

PRODUCTION

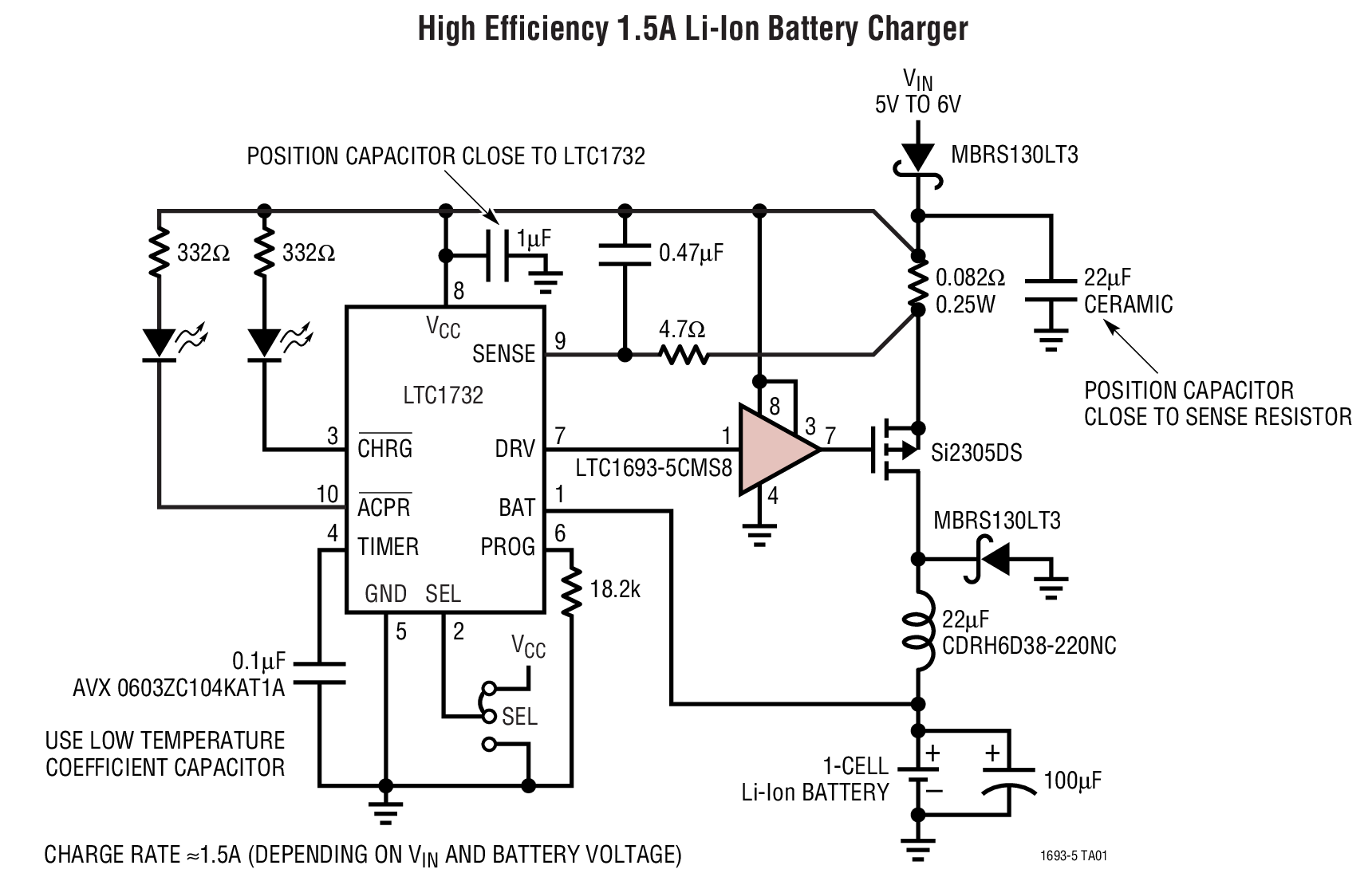

High Efficiency 1.5A Li-Ion Battery Charger slide

High Efficiency 1.5A Li-Ion Battery Charger

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $2.45

Features

Single MOSFET Driver in MSOP Package
1.5A Peak Output Current
16ns Rise/Fall Times at V_CC = 12V, C_L = 1nF
CMOS Compatible Input with Hysteresis
Input Threshold Is Independent of V_CC
Driver Input Can Be Driven Above V_CC
Undervoltage Lockout
Thermal Shutdown

Additional Details

The LTC1693-5 drives power P-channel MOSFETs at high speed. The 1.5A peak output current reduces switching losses in MOSFETs with high gate capacitance.

The LTC1693-5 is a single driver with an output polarity select pin. The MOSFET driver offers V_CC independent CMOS input thresholds with 1.2V of typical hysteresis. It can level-shift the input logic signal up or down to the rail-to-rail V_CC drive for the external MOSFET.

The LTC1693-5 contains an undervoltage lockout circuit and a thermal shutdown circuit that disables the external P-channel MOSFET gate drive if activated.

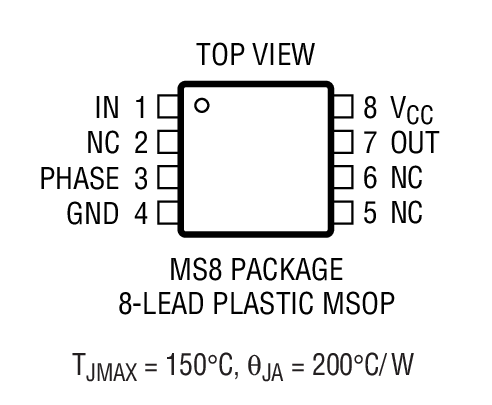

The LTC1693-5 comes in an 8-lead MSOP package.

Applications

Power Supplies
High Side Drivers
Motor/Relay Control
Line Drivers
Battery Chargers
