LTC1546

Software-Selectable Multiprotocol Transceiver with Termination

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 6
1ku List Price Starting From $14.43
Features
  • Software-Selectable Transceiver Supports: RS232, RS449, EIA530, EIA530-A, V.35, V.36, X.21
  • TUV Telecom Services Inc. Certified NET1, NET2 and TBR2 Compliant
  • On-Chip Cable Termination
  • Pin Compatible with LTC1543
  • Complete DTE or DCE Port with LTC1544
  • Operates from Single 5V Supply
  • Small Footprint
Additional Details
show more Icon

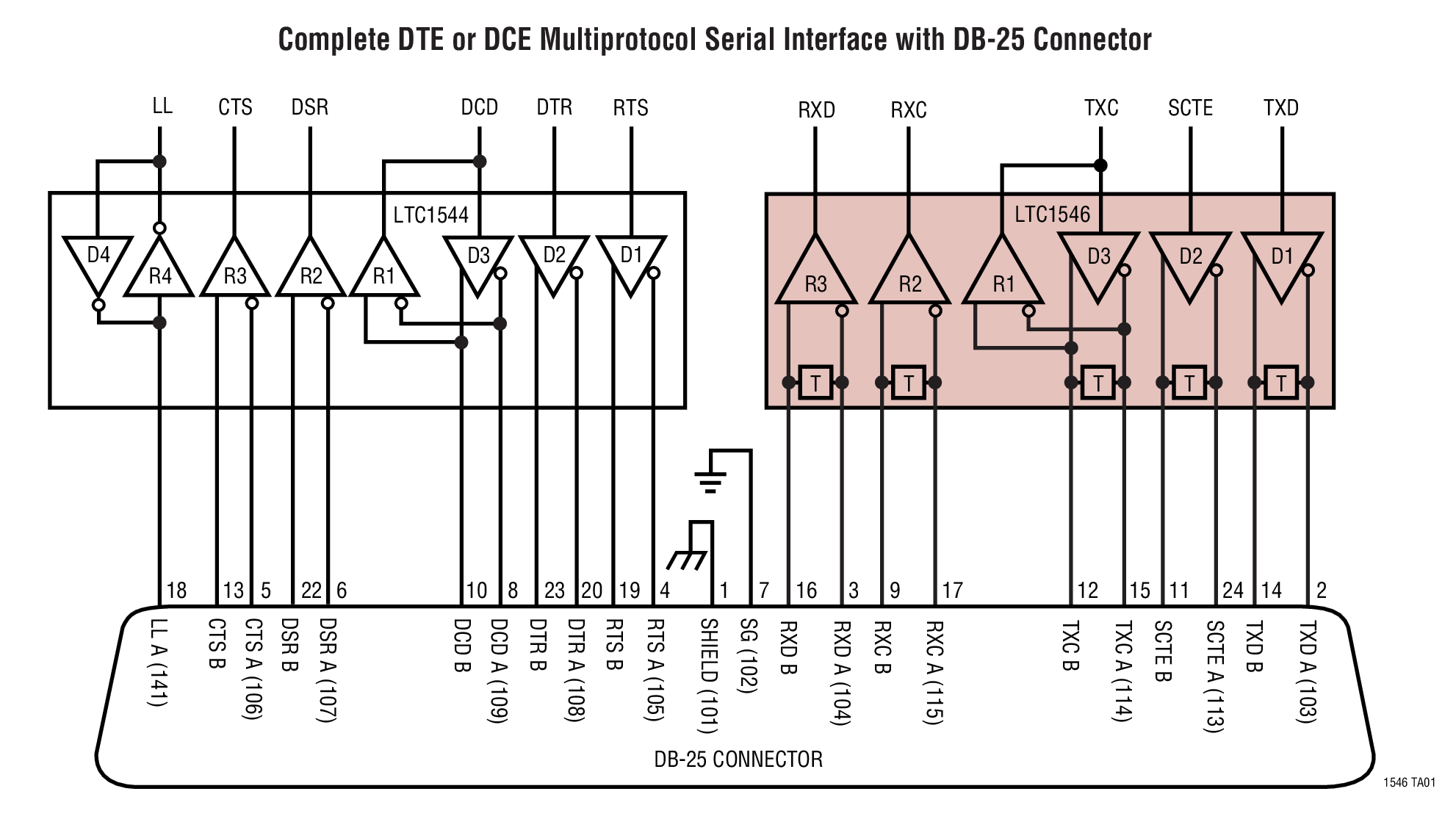

The LTC1546 is a 3-driver/3-receiver multiprotocol transceiver with on-chip cable termination. When combined with the LTC1544, this chip set forms a complete software-selectable DTE or DCE interface port that supports the RS232, RS449, EIA530, EIA530-A, V.35, V.36 and X.21 protocols. All necessary cable termination is provided inside the LTC1546. In most applications, the LTC1546 replaces both an LTC1543 and an LTC1344A without any changes to the PC board.

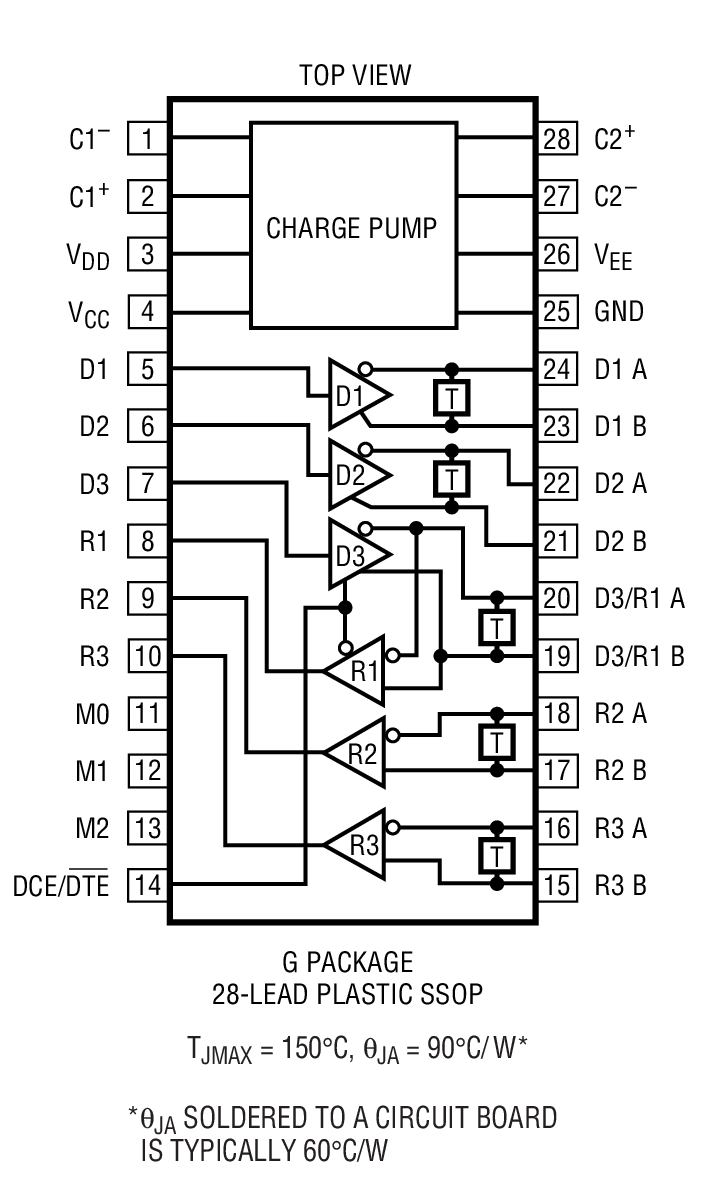

The LTC1546 runs from a single 5V supply using an internal charge pump that requires only five space-saving surface mounted capacitors. The LTC1546 is available in a 28-lead SSOP surface mount package.

Applications

  • Data Networking
  • CSU and DSU
  • Data Routers
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
Part Models 6
1ku List Price Starting From $14.43
