LTC1536

PRODUCTION

Precision Triple Supply Monitor for PCI Applications

Part Models: 6
1ku List Price: Starting From $3.84

Viewing:

Overview

Simultaneously Monitors 5V, 3.3V and Adjustable Inputs
Guaranteed Threshold Accuracy: ±0.75%
Low Supply Current: 100µA
Internal Reset Time Delay: 200ms
Manual Pushbutton Reset Input
Active Low and Active High Reset Outputs
Active Low “Soft” Reset Output
Power Supply Glitch Immunity
Guaranteed Reset for Either V_CC3> 1V or V_CC5 > 1V
Meets PCI t_FAIL Timing Specifications Rev 2.1

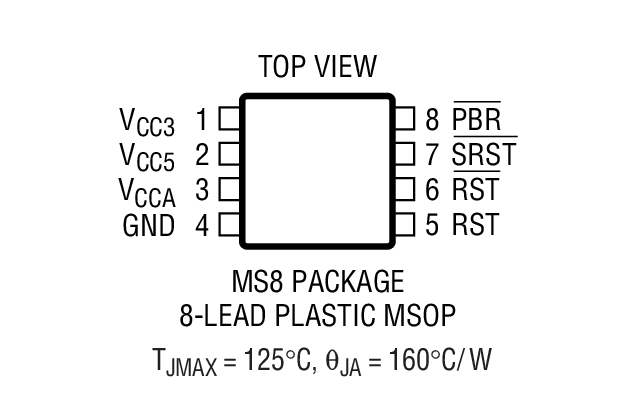

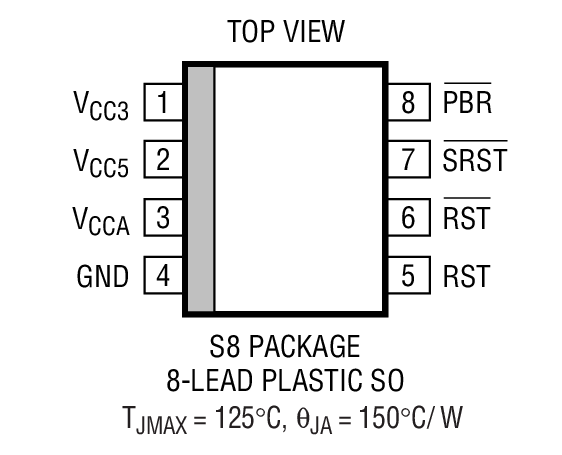

8-Pin SO and MSOP Packages

The LTC1536 is designed for PCI local bus applications with multiple supply voltages that require low power, small size, high speed and high accuracy supply monitoring.

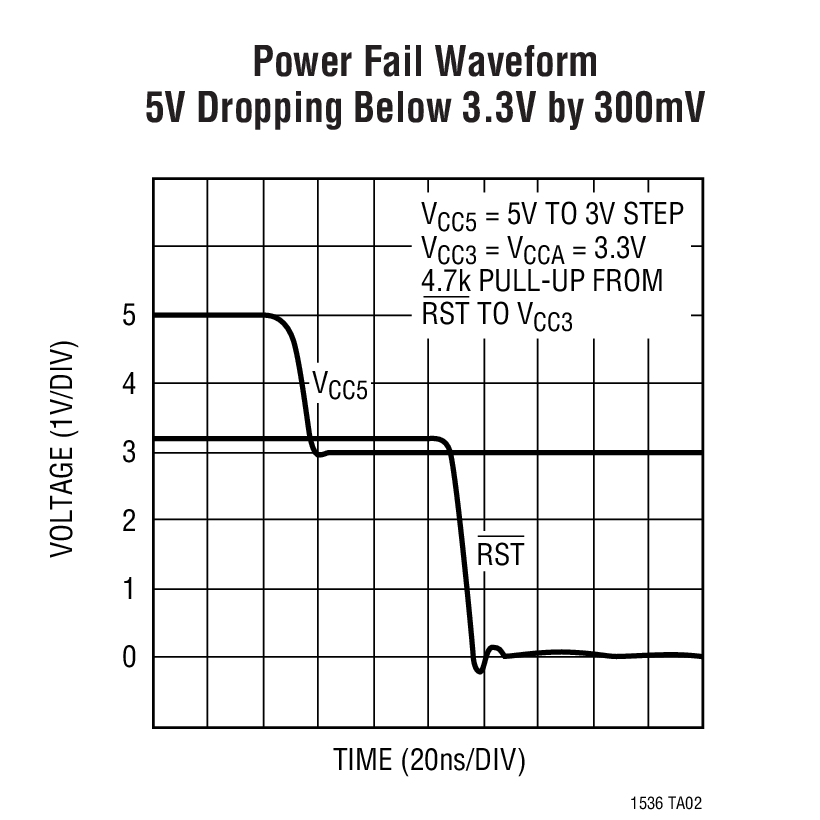

For 3.3V and 5V supplies that are >500mV below spec or for the condition when the 5V supply falls below the 3.3V supply, the LTC1536 has a very fast response time capable of meeting the PCI t_FAIL timing specification. Tight 0.75% threshold accuracy and glitch immunity ensure reliable reset operation without false triggering.

The RST output is guaranteed to be in the correct state for V_CC5 or V_CC3 down to 1V. The 100µA typical supply current makes the LTC1536 ideal for power-conscious systems.

A manual pushbutton reset input provides the ability to generate a very narrow “soft” reset pulse (100µs typ) or a 200ms reset pulse equivalent to a power-on reset. Both SRST and RST outputs are open-drain and can be OR-tied with other reset sources.

Applications

PCI-Based Systems
Desktop Computers
Notebook Computers
Intelligent Instruments
Portable Battery-Powered Equipment
Network Servers

Part Models: 6
1ku List Price: Starting From $3.84

Documentation

Data Sheet 1

LTC1536: Precision Triple Supply Monitor for PCI Applications Data Sheet 08/27/2007

Reliability Data 1

R351 Reliability Data 03/22/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1536CMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1536CMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1536CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1536CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1536IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1536IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 5, 2024 - 24_0004 Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
		PCN24_0004_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1536CMS8#PBF	PRODUCTION
LTC1536CMS8#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC1536CMS8#PBF	PRODUCTION
LTC1536CMS8#TRPBF	PRODUCTION
Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0246_Form Material_Report Marking Comparison Delta Qualification Matrix
LTC1536CS8#PBF	PRODUCTION
LTC1536CS8#TRPBF	PRODUCTION
LTC1536IS8#PBF	PRODUCTION
LTC1536IS8#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1536CS8#PBF	PRODUCTION
LTC1536CS8#TRPBF	PRODUCTION
LTC1536IS8#PBF	PRODUCTION
LTC1536IS8#TRPBF	PRODUCTION
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC1536CS8#PBF	PRODUCTION
LTC1536CS8#TRPBF	PRODUCTION
LTC1536IS8#PBF	PRODUCTION
LTC1536IS8#TRPBF	PRODUCTION
