LTC1516

PRODUCTION

Micropower, Regulated 5V Charge Pump DC/DC Converter

Part Models: 4
1ku List Price: Starting From $4.82

Viewing:

Overview

Ultralow Power: Typical Operating I_CC = 12µA
Short Circuit/Thermal Protection
Regulated 5V ±4% Output
2V to 5V Input Range
No Inductors
I_CC in Shutdown: < 1µA
Output Current:
- 20mA (V_IN> 2V)
- 50mA (V_IN> 3V)
Shutdown Disconnects Load from V_IN
Internal Oscillator: 600kHz
Compact Application Circuit (0.1 in²)

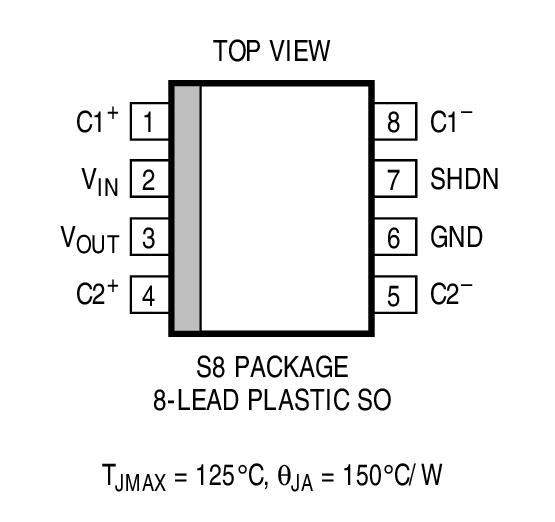

8-Pin SO Package

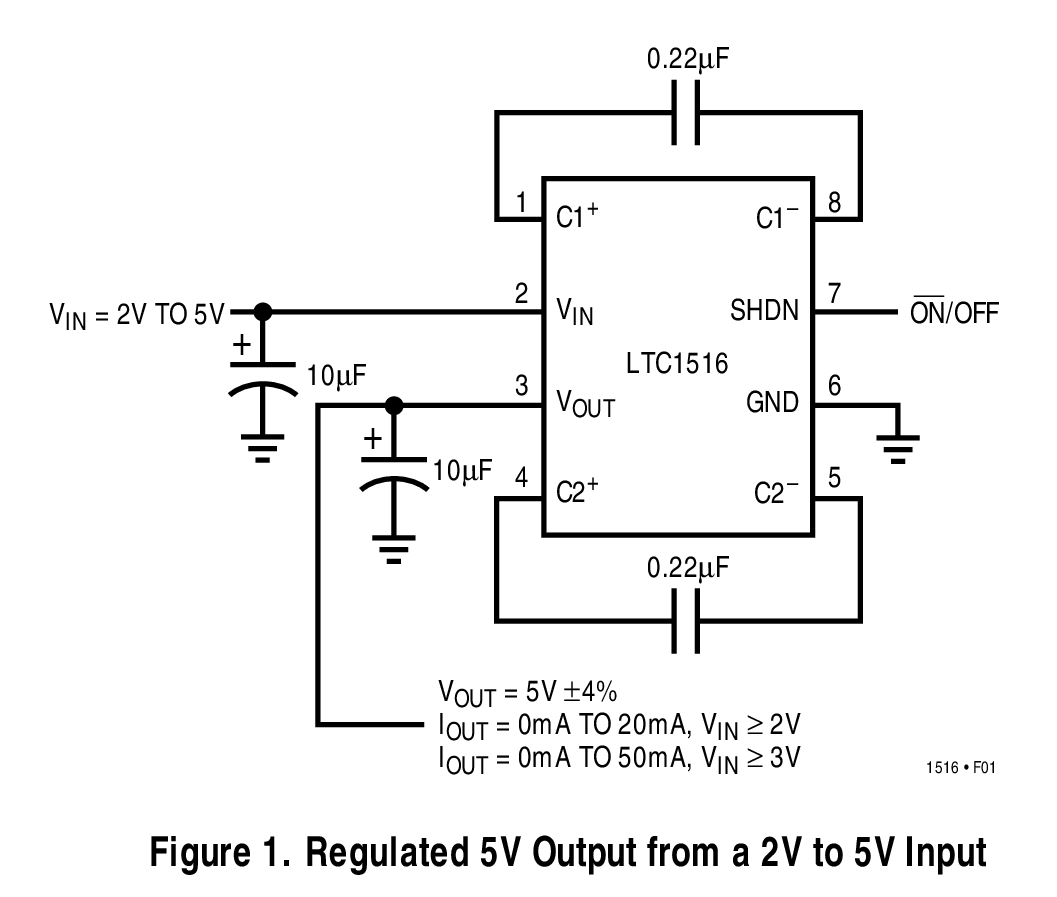

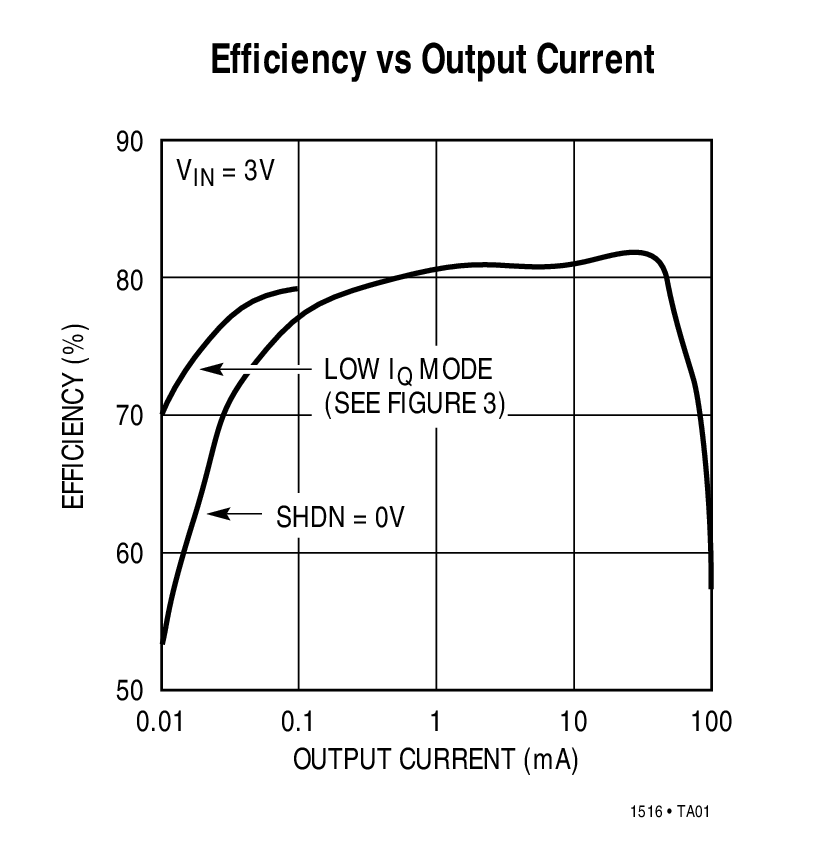

The LTC1516 is a micropower charge pump DC/DC converter that produces a regulated 5V output from a 2V to 5V supply. Extremely low supply current (12µA typical with no load, < 1µA in shutdown) and low external parts count (two 0.22µF flying capacitors and two 10µF capacitors at V_IN and V_OUT ) make the LTC1516 ideally suited for small, light load battery-powered applications. Typical efficiency (V_IN = 3V) exceeds 70% with load currents between 50µA and 50mA. Modulating the SHDN pin keeps the typical efficiency above 70% with load currents all the way down to 10µA.

The LTC1516 operates as either a doubler or a tripler depending on V _IN and output load conditions to improve overall efficiency. The part has thermal shutdown and can survive a continuous short from V_OUT to GND. In shut-down the load is disconnected from V_IN .

The LTC1516 is available in an 8-pin SO package in both commercial and industrial temperature grades.

Applications

2-Cell to 5V Conversion
Li-Ion Battery Backup Supplies
Local 3V to 5V Conversion
5V Flash Memory Programmer
Smart Card Readers

Part Models: 4
1ku List Price: Starting From $4.82

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1516CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1516CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1516IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LTC1516IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Dec 14, 2023 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1516CS8#PBF	PRODUCTION
LTC1516CS8#TRPBF	PRODUCTION
LTC1516IS8#PBF	PRODUCTION
LTC1516IS8#TRPBF	PRODUCTION
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC1516CS8#PBF	PRODUCTION
LTC1516CS8#TRPBF	PRODUCTION
LTC1516IS8#PBF	PRODUCTION
LTC1516IS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC1516

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
