LTC1470

Single and Dual PCMCIA Protected 3.3V/5V VCC Switches

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $3.09
Features

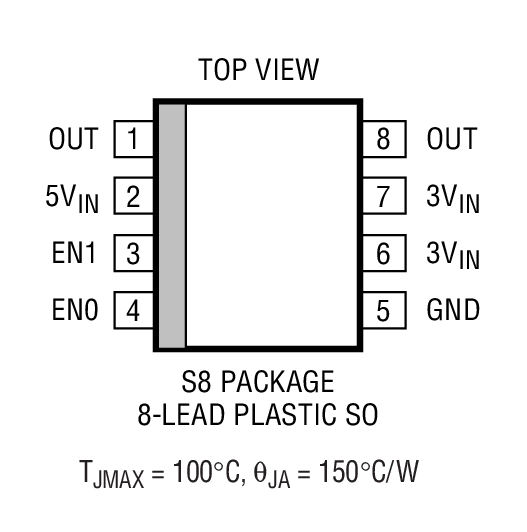

  • Single 3.3V/5V Switch in 8-Pin SO Package
  • Dual 3.3V/5V Switch in 16-Pin SO Package
  • Built-In Current Limit and Thermal Shutdown
  • Built-In Charge Pumps (No 12V Required)
  • Extremely Low RDS(ON) MOSFET Switches
  • Output Current Capability: 1A
  • Inrush Current Limited (Drives 150µF Loads)
  • Quiescent Current in Standby: 1µA
  • No Parasitic Body Diodes
  • Built-In XOR Function Eliminates “Glue” Logic
  • Break-Before-Make Switching
  • Controlled Rise and Fall Times
Additional Details
show more Icon

The LTC1470 switches the VCC pins of a Personal Computer Memory Card International Association (PCMCIA) card slot between three operating states: OFF, 3.3V and 5V. Two low RDS(ON) N-channel power MOSFETs are driven by a built-in charge pump which generates a voltage higher than the supply voltage to fully enhance each switch when selected by the input control logic.

The LTC1470 inputs are compatible with industry standard PCMCIA controllers. A built-in XOR ensures that both switches are never on at the same time. This function also makes the LTC1470 compatible with both active-low and active-high controllers (see Applications Information section). The switch rise times are controlled to eliminate power supply glitching.

The LTC1470 features built-in SafeSlot™ current limit and thermal shutdown. The output is limited to 1A during short circuit to ground but 2A of peak operating current is allowed.

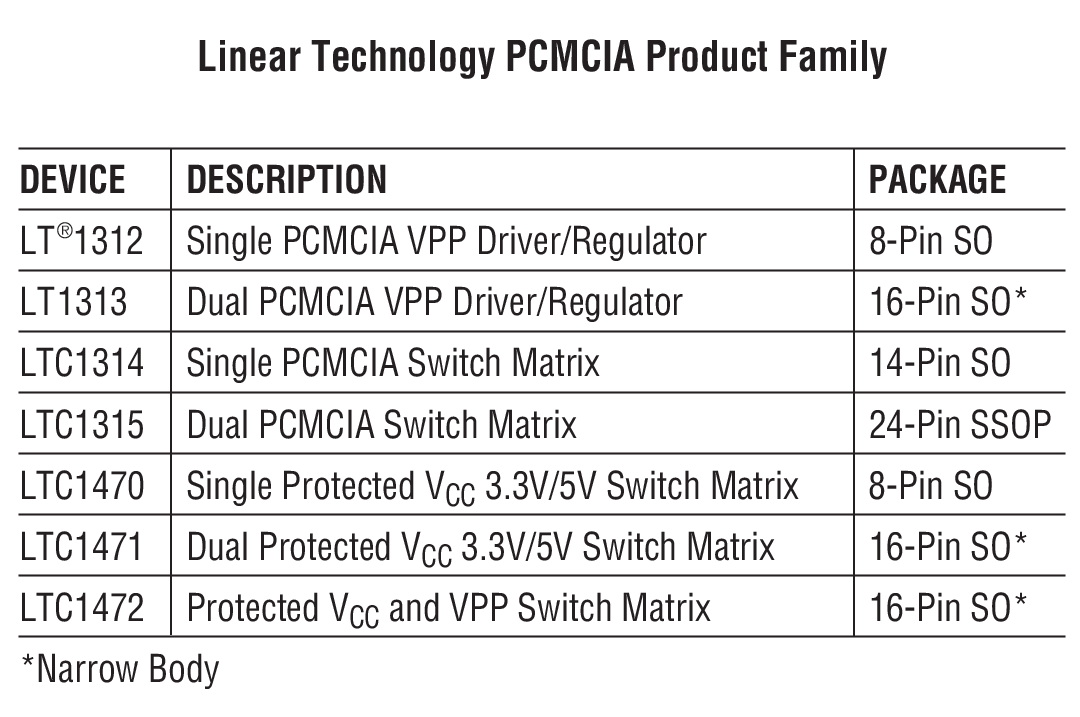

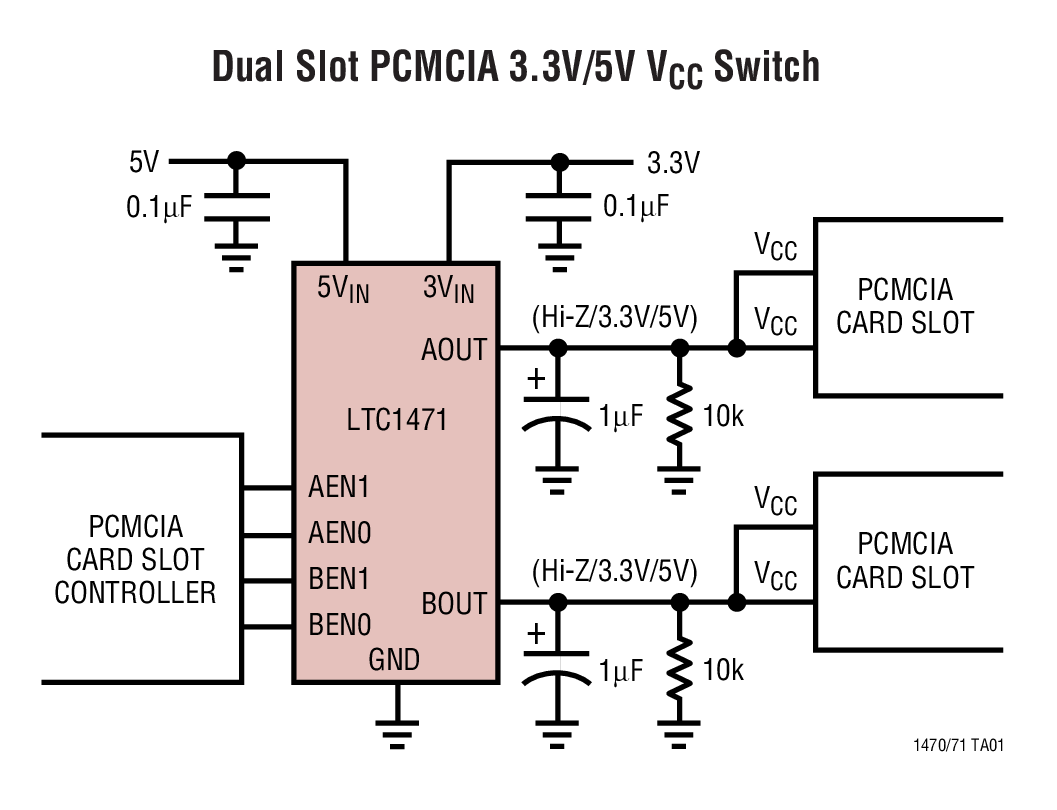

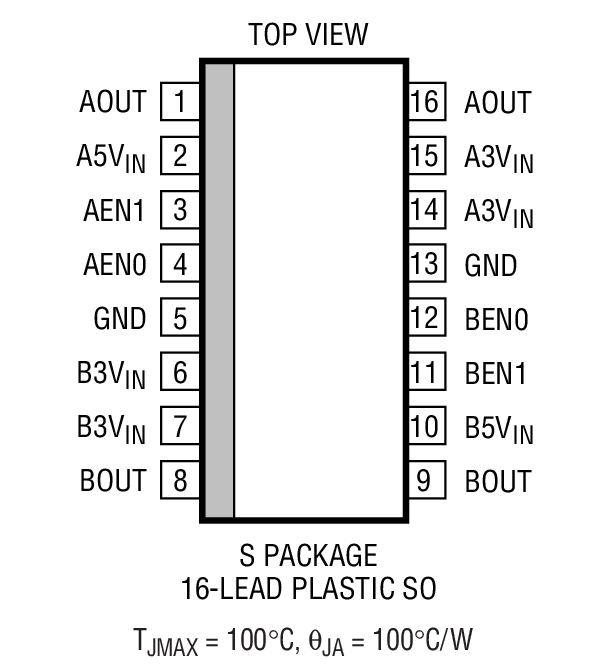

The LTC1471 is a dual version of the LTC1470 and is available in a 16-pin SO package.
