Overview

Features and Benefits

  • Sample Rate: 400ksps
  • Power Dissipation: 70mW
  • Guaranteed ±1.5LSB DNL, ±2LSB INL (Max)
  • 80.5dB S/(N + D) and 93dB THD at 100kHz
  • 80dB S/(N + D) and 90dB THD at Nyquist
  • Nap and Sleep Shutdown Modes
  • Operates with Internal or External Reference
  • True Differential Inputs Reject Common Mode Noise
  • 15MHz Full Power Bandwidth Sampling
  • ±2.5V Bipolar Input Range

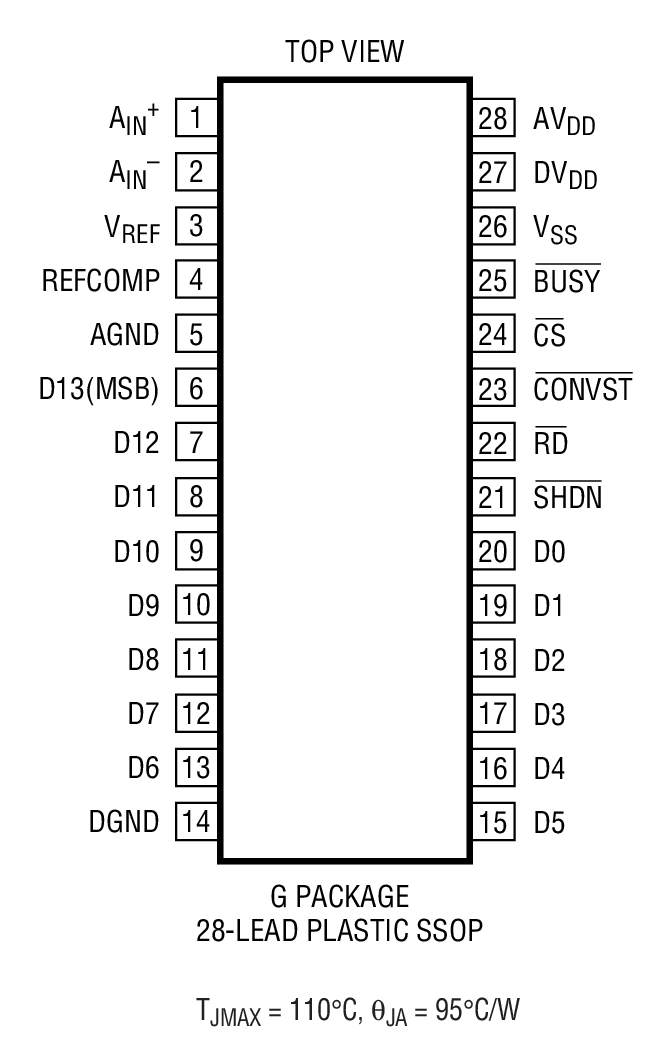

  • 28-Pin SSOP Package

Product Details

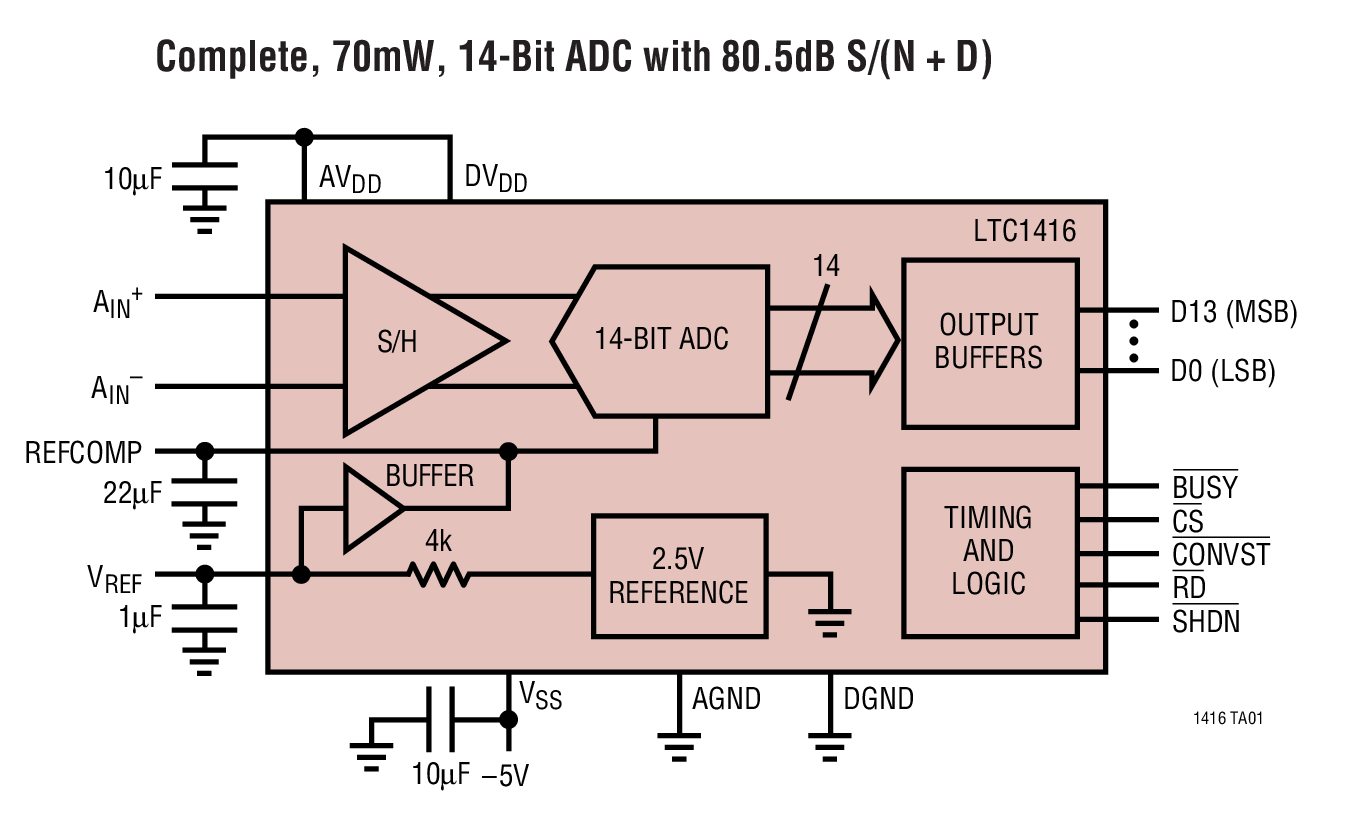

The LTC1416 is a 2.2µs, 400ksps, 14-bit sampling A/D converter that draws only 70mW from ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold and a precision reference. Two digitally selectable power shutdown modes provide flexibility for low power systems.

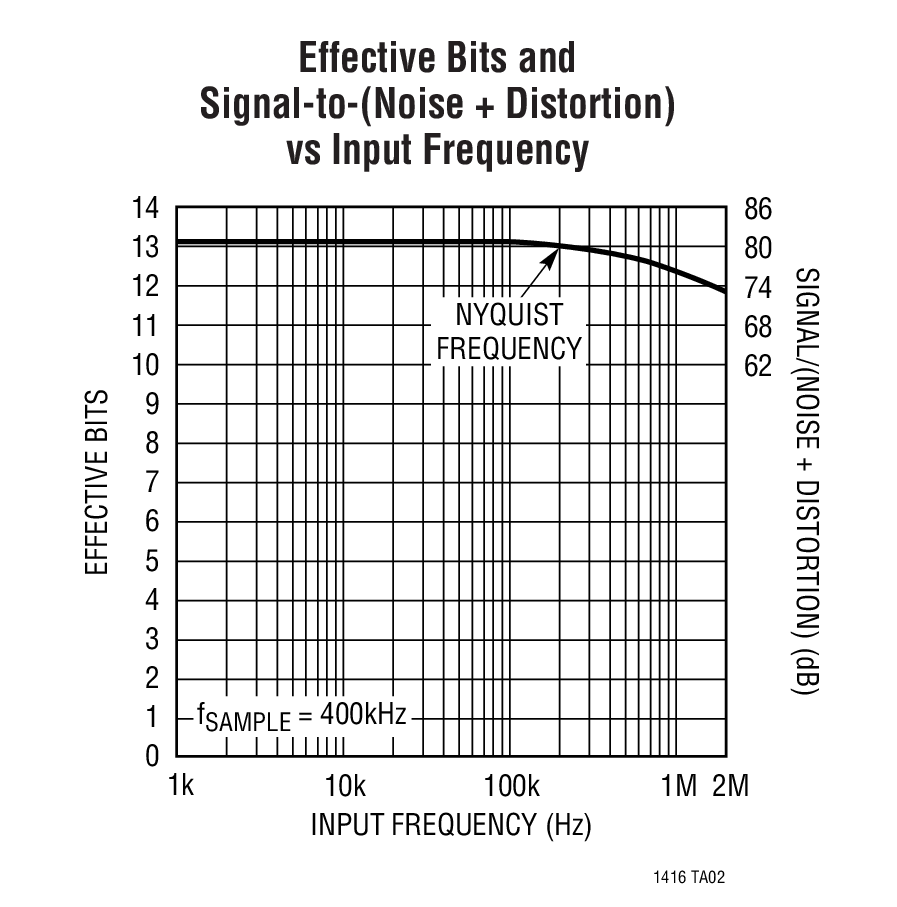

The LTC1416’s full-scale input range is ±2.5V. Maximum DC specifications include ±2LSB INL, ±1.5LSB DNL over temperature. Outstanding AC performance includes 80.5dB S/(N + D) and 93dB THD with a 100kHz input, and 80dB S/(N + D) and 90dB THD at the Nyquist input frequency of 200kHz.

The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 15MHz bandwidth. The 60dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source.

The ADC has a µP compatible, 14-bit parallel output port. There is no pipeline delay in the conversion results. A separate convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.

Applications

  • Telecommunications
  • Digital Signal Processing
  • Multiplexed Data Acquisition Systems
  • High Speed Data Acquisition
  • Spectrum Analysis
  • Imaging Systems

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
