LTC1326

PRODUCTION

Micropower Precision Triple Supply Monitor

Part Models: 17
1ku List Price: Starting From $3.20

Viewing:

Overview

Simultaneously Monitors Three Supplies
- LTC1326: 5V, 3.3V and ADJ
- LTC1326-2.5: 2.5V, 3.3V and ADJ
Guaranteed Threshold Accuracy: ±0.75%
Low Supply Current: 20µA
Internal Reset Time Delay: 200ms
Manual Push-Button Reset Input
Active Low and Active High Reset Outputs
Active Low “Soft” Reset Output
Power Supply Glitch Immunity
Guaranteed RESET for V_CC3 ≥ 1V or V_CC5 ≥ 1V or V_CC25 ≥ 1V

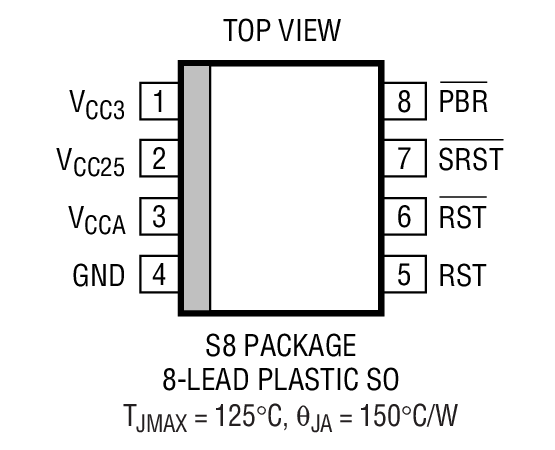

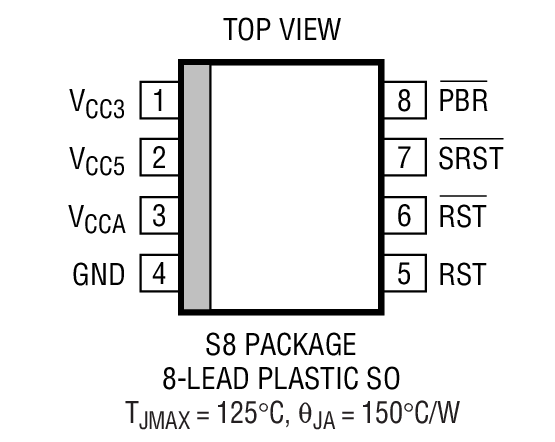

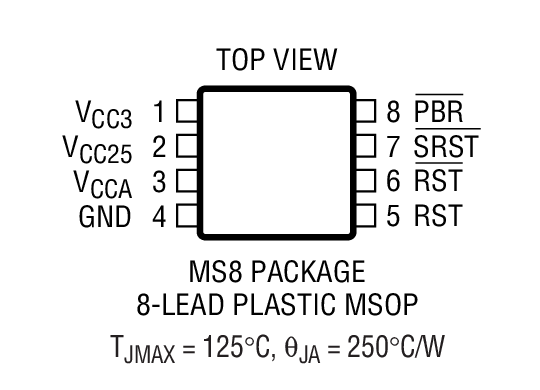

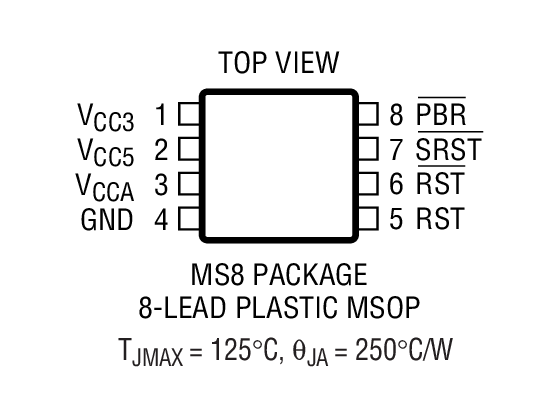

8-Pin SO and MSOP Packages

The LTC1326/LTC1326-2.5 are triple supply monitors intended for systems with multiple supply voltages. They provide micropower operation, small size and high accuracy supply monitoring.

Tight 0.75% threshold accuracy and glitch immunity ensure reliable reset operation without false triggering. The 20µA typical supply current makes the LTC1326/LTC1326-2.5 ideal for power-conscious systems.

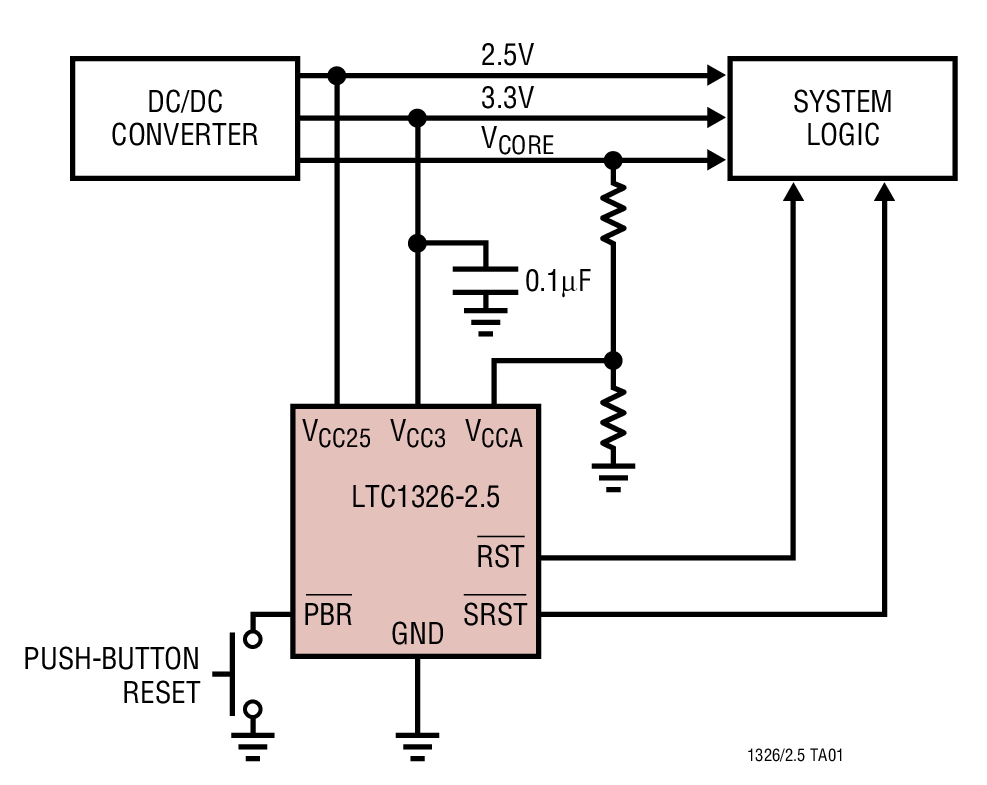

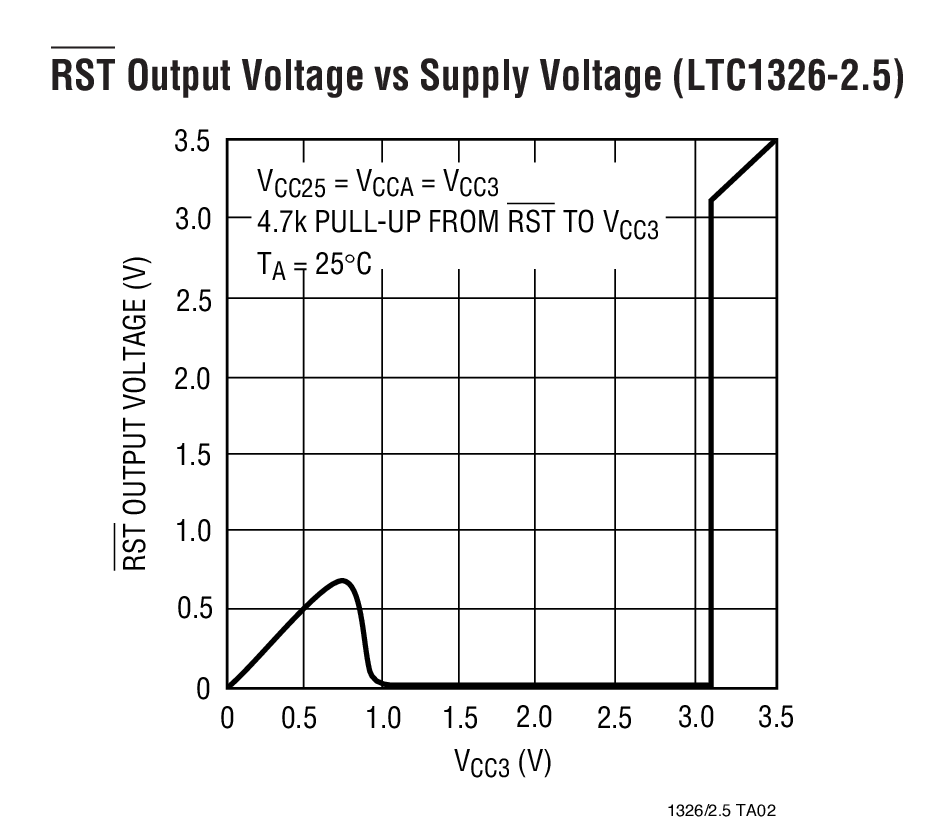

The RST output is guaranteed to be in the correct state for V_CC3, V_CC5 or V_CC25 down to 1V. The LTC1326/LTC1326-2.5 can be configured to monitor one, two or three inputs, depending on system requirements.

A manual push-button reset input provides the ability to generate a very narrow “soft” reset pulse (100µs typ) or a 200ms reset pulse equivalent to a power-on reset. Both SRST and RST outputs are open-drain and can be OR-tied with other reset sources.

Applications

Desktop Computers
Notebook Computers
Intelligent Instruments
Portable Battery-Powered Equipment

Part Models: 17
1ku List Price: Starting From $3.20

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1326CMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326CMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326CMS8-2.5#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326CMS8-2.5#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326CS8-2.5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326CS8-2.5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326IMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326IMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326IMS8-2.5#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326IMS8-2.5#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326IS8	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326IS8-2.5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1326IS8-2.5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)
		PCN24_0003_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1326CMS8#PBF	PRODUCTION
LTC1326CMS8#TRPBF	PRODUCTION
LTC1326CMS8-2.5#PBF	PRODUCTION
LTC1326CMS8-2.5#TRPBF	PRODUCTION
LTC1326IMS8#PBF	PRODUCTION
LTC1326IMS8#TRPBF	PRODUCTION
LTC1326IMS8-2.5#PBF	PRODUCTION
LTC1326IMS8-2.5#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC1326CMS8#PBF	PRODUCTION
LTC1326CMS8#TRPBF	PRODUCTION
LTC1326CMS8-2.5#PBF	PRODUCTION
LTC1326CMS8-2.5#TRPBF	PRODUCTION
LTC1326IMS8#PBF	PRODUCTION
LTC1326IMS8#TRPBF	PRODUCTION
LTC1326IMS8-2.5#PBF	PRODUCTION
LTC1326IMS8-2.5#TRPBF	PRODUCTION
Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0246_Form Material_Report Marking Comparison Delta Qualification Matrix
LTC1326CS8#PBF	PRODUCTION
LTC1326CS8#TRPBF	PRODUCTION
LTC1326CS8-2.5#PBF	PRODUCTION
LTC1326CS8-2.5#TRPBF	PRODUCTION
LTC1326IS8	LAST TIME BUY
LTC1326IS8#PBF	PRODUCTION
LTC1326IS8#TRPBF	PRODUCTION
LTC1326IS8-2.5#PBF	PRODUCTION
LTC1326IS8-2.5#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1326CS8#PBF	PRODUCTION
LTC1326CS8#TRPBF	PRODUCTION
LTC1326CS8-2.5#PBF	PRODUCTION
LTC1326CS8-2.5#TRPBF	PRODUCTION
LTC1326IS8	LAST TIME BUY
LTC1326IS8#PBF	PRODUCTION
LTC1326IS8#TRPBF	PRODUCTION
LTC1326IS8-2.5#PBF	PRODUCTION
LTC1326IS8-2.5#TRPBF	PRODUCTION
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC1326CS8#PBF	PRODUCTION
LTC1326CS8#TRPBF	PRODUCTION
LTC1326CS8-2.5#PBF	PRODUCTION
LTC1326CS8-2.5#TRPBF	PRODUCTION
LTC1326IS8	LAST TIME BUY
LTC1326IS8#PBF	PRODUCTION
LTC1326IS8#TRPBF	PRODUCTION
LTC1326IS8-2.5#PBF	PRODUCTION
LTC1326IS8-2.5#TRPBF	PRODUCTION
Jun 6, 2025 - 25_0029 Carsem SnPb Packaging End of Life
		PDN25_0029_Form Material_Report
LTC1326IS8	LAST TIME BUY	PDN25_0029_Form Material_Report
