Features and Benefits
- Low Power Dissipation: 10mW
- Sample Rate: 100ksps
- Samples Inputs Beyond Nyquist, 72dB S/(N + D) and 82dB THD at fIN = 100kHz
- Single Supply 5V or ±5V Operation
- Power Shutdown to 1µA in Sleep Mode
- 180µA Nap Mode (LTC1277) with Instant Wake-Up
- Internal Reference Can Be Overdriven
- Internal Synchronized Clock
- 0V to 4.096V or ±2.048V Input Ranges (1mV/LSB)
- 24-Lead SOL Package
The LTC1274/LTC1277 are 8µs sampling 12-bit A/D converters which draw only 2mA (typ) from single 5V or ±5V supplies. These easy-to-use devices come complete with a 2ms sample-and-hold, a precision reference and an internally trimmed clock. Unipolar and bipolar conversion modes add to the flexibility of the ADCs.

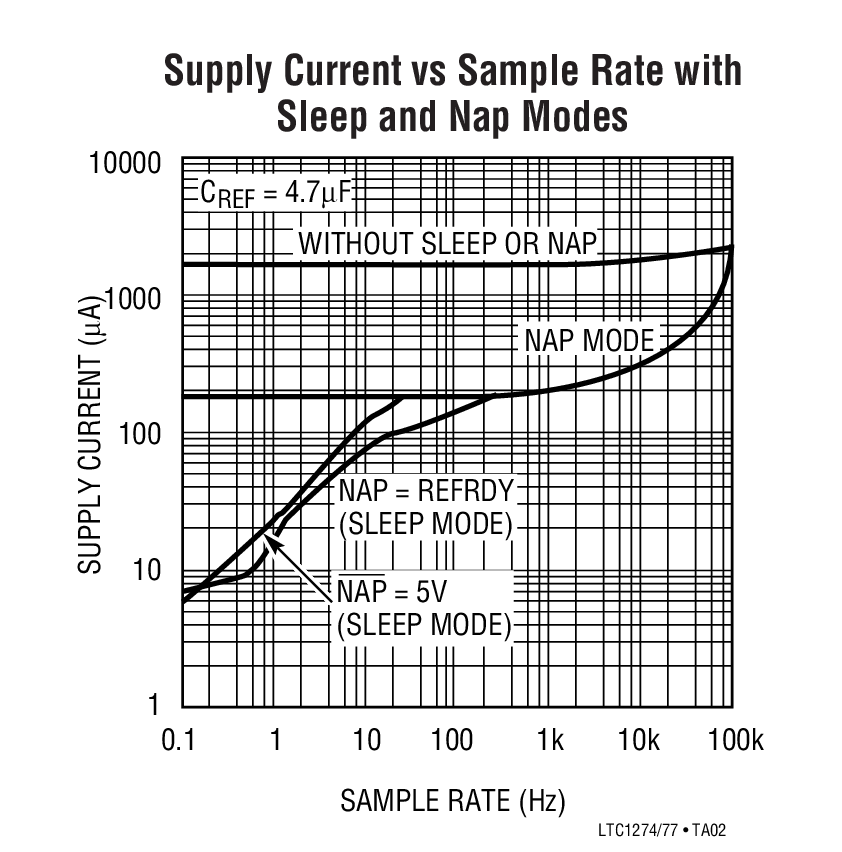

Two power-down modes are available in the LTC1277. In Napmode, the LTC1277 draws only 180µA and the instant wake-up from Nap mode allows the LTC1277 to be powered down even during brief inactive periods. In Sleep mode only 1µA will be drawn. A REFRDY signal is used to show the ADC is ready to sample after waking up from Sleep mode. The LTC1274 also provides the Sleep mode and REFRDY signal.
The A/D converters convert 0V to 4.096V unipolar inputs from a single 5V supply or ±2.048V bipolar inputs from ±5V supplies.

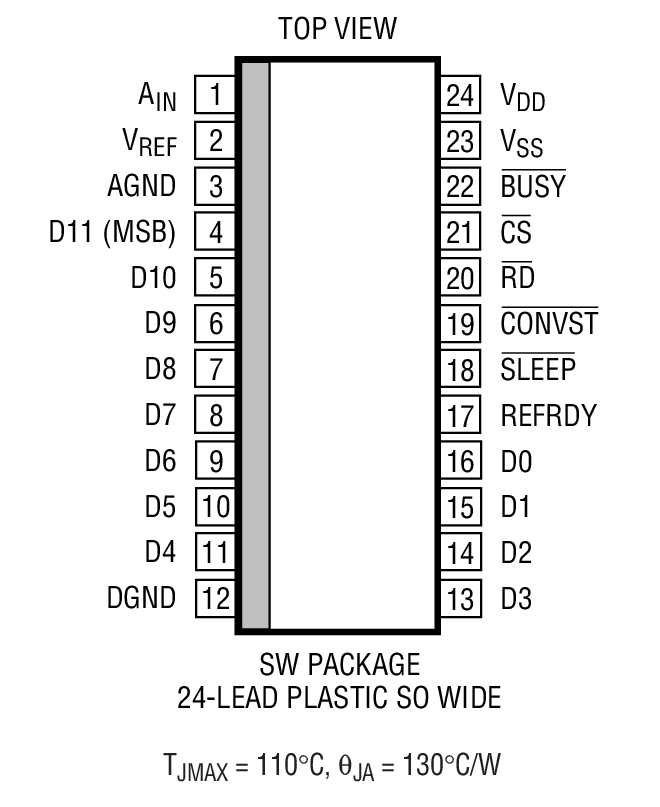

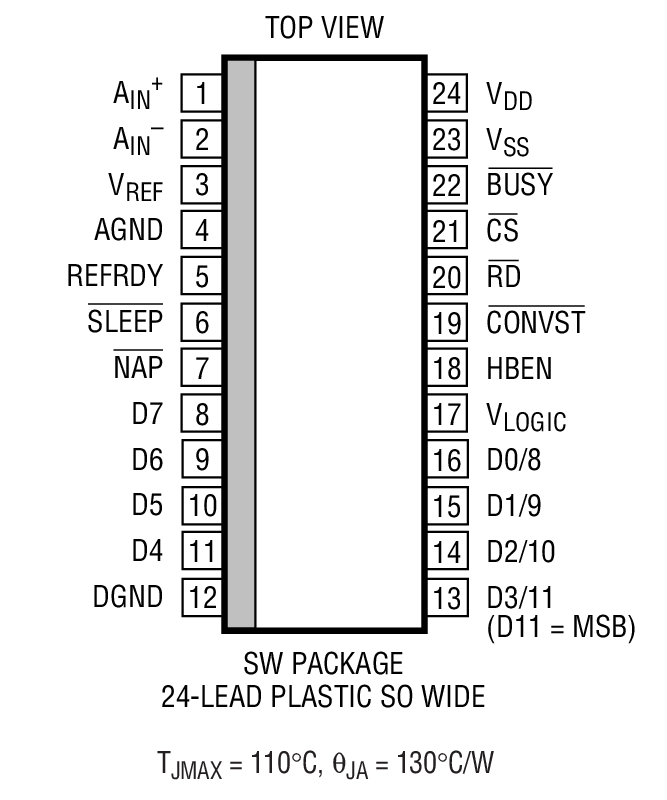

The LTC1274 has a single-ended input and a 12-bit parallel data format. The LTC1277 offers a differential input and a 2-byte read format. The bipolar mode is formatted as 2’s complement for the LTC1274 and offset binary for the LTC1277.
- Battery-Powered Portable Systems
- High Speed Data Acquisition for PCs
- Digital Signal Processing
- Multiplexed Data Acquisition Systems
- Audio and Telecom Processing
- Spectrum Analysis
