LTC1262

PRODUCTION

12V, 30mA Flash Memory Programming Supply

Part Models: 5
1ku List Price: Starting From $3.26

Viewing:

Overview

Regulated 12V ±5% Output Voltage
No Inductors
Supply Voltage Range: 4.75V to 5.5V
Guaranteed 30mA Output
Low Power: I_cc = 500µA
Icc in Shutdown: 0.5µA

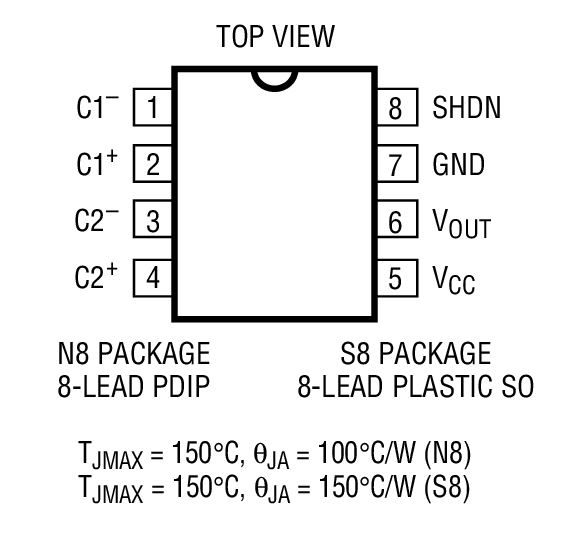

8-Pin PDIP or SO-8 Package

The LTC1262 is a regulated 12V, 30mA output DC/DC converter. It is designed to provide the 12V ±5% output necessary to program byte-wide flash memories. The output will provide up to 30mA from input voltages as low as 4.75V without using any inductors. Only four external capacitors are required to complete an extremely small surface mountable circuit.

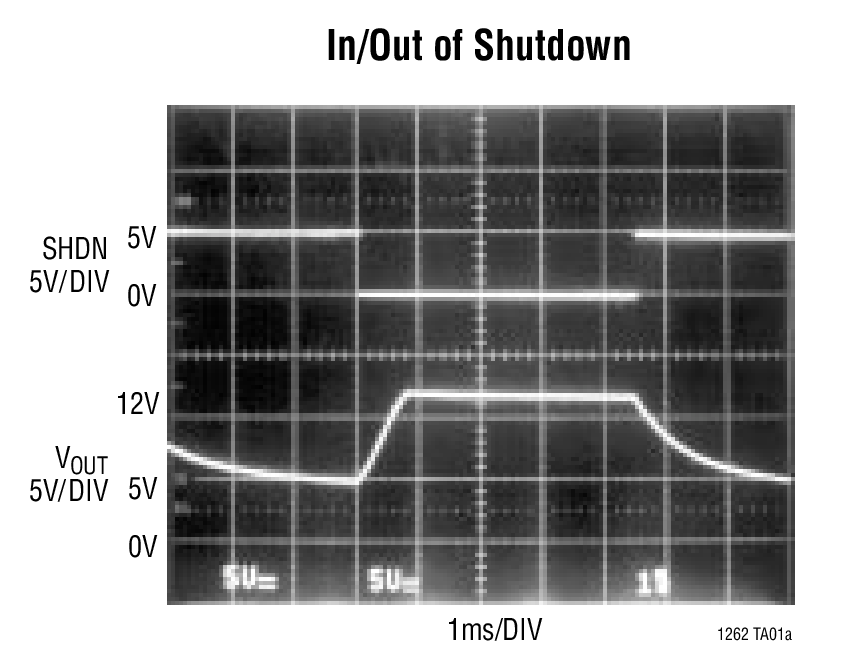

The TTL compatible shutdown pin can be directly connected to a microprocessor and reduces the supply current to less than 0.5µA. The LTC1262 offers improved shutdown current performance and requires fewer external components than competing solutions.

The LTC1262 is available in an 8-pin PDIP or SO-8 package.

Applications

12V Flash Memory Programming Supplies
Compact 12V Op Amp Supplies
Battery-Powered Systems

Part Models: 5
1ku List Price: Starting From $3.26

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1262CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1262CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1262CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1262IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1262IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package
		PCN24_0234_Form Material_Report Marking Comparison
LTC1262CN8#PBF	PRODUCTION	PCN24_0234_Form Material_Report Marking Comparison
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LTC1262CN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LTC1262CN8#PBF	PRODUCTION
Dec 14, 2023 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1262CS8#PBF	PRODUCTION
LTC1262CS8#TRPBF	PRODUCTION
LTC1262IS8#PBF	PRODUCTION
LTC1262IS8#TRPBF	PRODUCTION
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC1262CS8#PBF	PRODUCTION
LTC1262CS8#TRPBF	PRODUCTION
LTC1262IS8#PBF	PRODUCTION
LTC1262IS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC1262

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Latest Discussions

No discussions on LTC1262 yet. Have something to say?

Start a Discussion on EngineerZone®
