LTC1255: Dual 24V High-Side MOSFET Driver Data Sheet8/31/2007287K
Features and Benefits
- Fully Enhances N-Channel Power MOSFETs

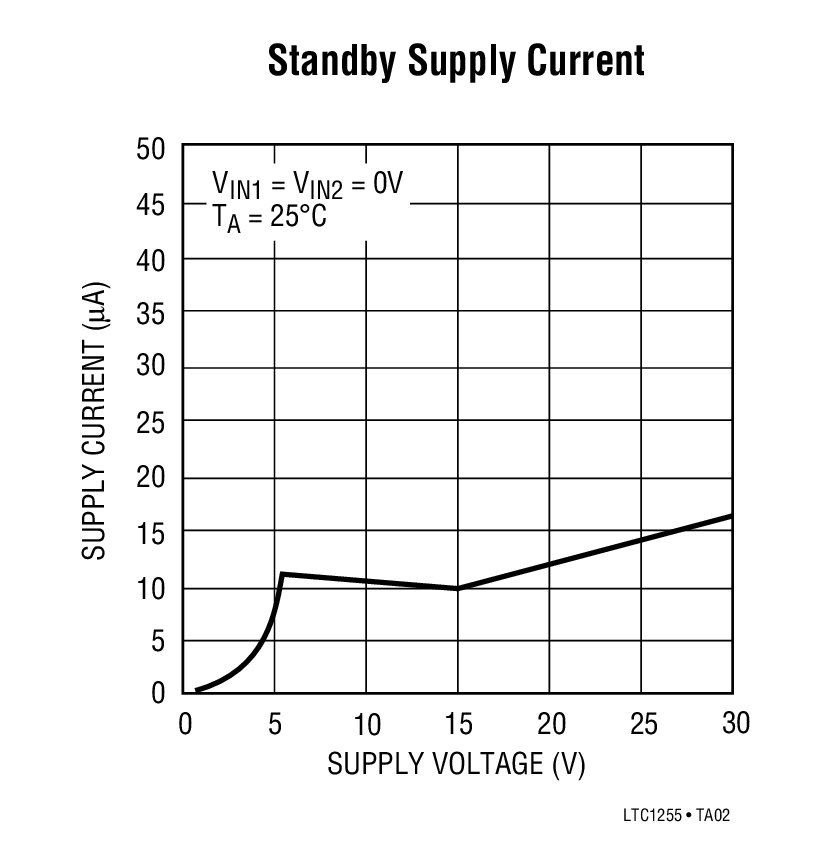

- 12µA Standby Current
- Operates at Supply Voltages from 9V to 24V
- Short Circuit Protection
- Easily Protected Against Supply Transients
- Controlled Switching ON and OFF Times
- No External Charge Pump Components
- Compatible With Standard Logic Families

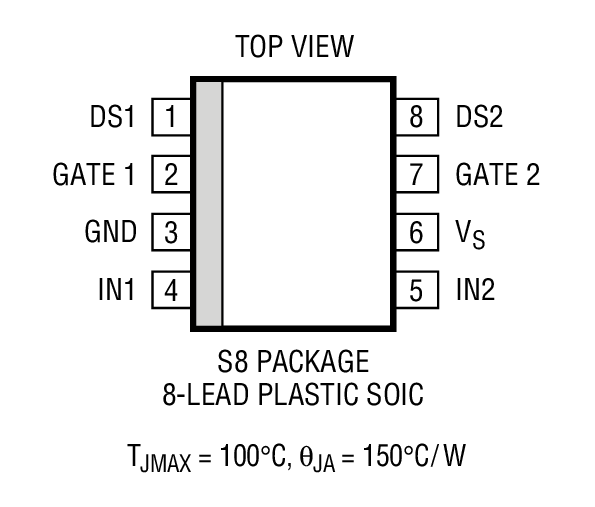

- Available in 8-Pin SOIC
The LTC1255 dual high-side driver allows using low cost N-channel FETs for high-side industrial and automotive switching applications. An internal charge pump boosts the gate drive voltage above the positive rail, fully enhancing an N-channel MOS switch with no external components. Low power operation, with 12µA standby current, allows use in virtually all systems with maximum efficiency.
Included on-chip is independent overcurrent sensing to provide automatic shutdown in case of short circuits. A time delay can be added to the current sense to prevent false triggering on high in-rush current loads.
The LTC1255 operates from 9V to 24V supplies and is well suited for industrial and automotive applications.

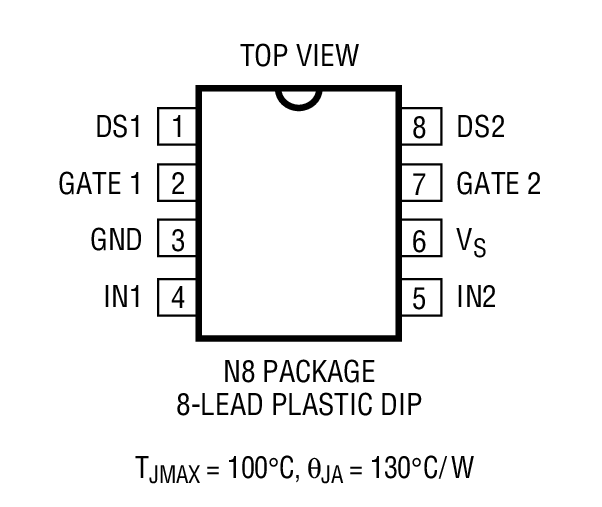

The LTC1255 is available in both an 8-pin DIP and an 8-pin SOIC.
- Solenoid Drivers
- DC Motor Drivers
- Stepper Motor Drivers
- Lamp Drivers/Dimmers
- Relay Drivers
- Low Frequency H-Bridge
- P-Channel Switch Replacement
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
R020 Reliability Data3/26/201821 K
AN53 - Micropower High Side MOSFET Drivers8/20/2007221K
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LTC1255CN8#PBF||Material Declaration||Reliability Data||8-Lead PDIP (Narrow 0.3 Inch)|
|LTC1255CS8#PBF||Material Declaration||Reliability Data||8-Lead SOIC (Narrow 0.15 Inch)|
|LTC1255CS8#TRPBF||Material Declaration||Reliability Data||8-Lead SOIC (Narrow 0.15 Inch)|
|LTC1255IN8#PBF||Material Declaration||Reliability Data||8-Lead PDIP (Narrow 0.3 Inch)|
|LTC1255IS8#PBF||Material Declaration||Reliability Data||8-Lead SOIC (Narrow 0.15 Inch)|
|LTC1255IS8#TRPBF||Material Declaration||Reliability Data||8-Lead SOIC (Narrow 0.15 Inch)|
|Wafer Fabrication Data||R020 Reliability Data|
