LTC1235

PRODUCTION

LTC1235

Microprocessor Supervisory Circuit

PRODUCTION

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

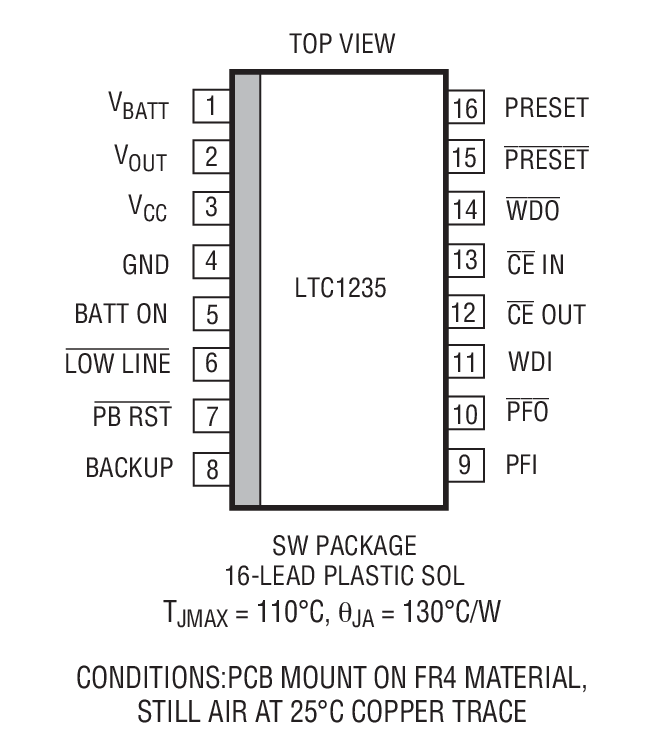

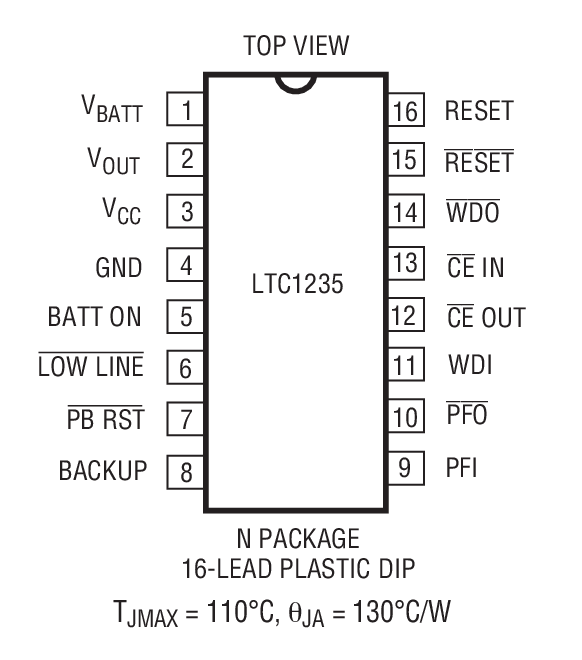

Part Models 3

1ku List Price Starting From $4.95

Features

Guaranteed Reset Assertion at V_CC = 1V
1.5mA Maximum Supply Current
Fast (35ns Max.) Onboard Gating of RAM Chip Enable Signals

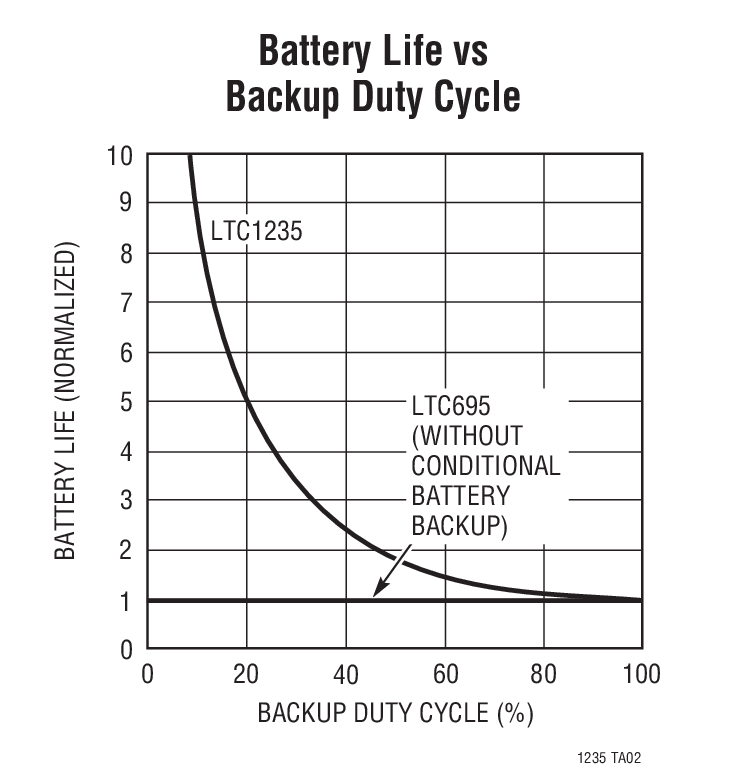

Conditional Battery Backup Extends Battery Life
4.65V Precision Voltage Monitor
Power OK/Reset Time Delay: 200ms
External Reset Control
Minimum External Component Count
1µA Maximum Standby Current
Voltage Monitor for Power Fail or Low Battery Warning
Thermal Limiting
Performance Specified Over Temperature
All the LTC695 Features Plus Conditional Battery Backup and External Reset Control

Additional Details

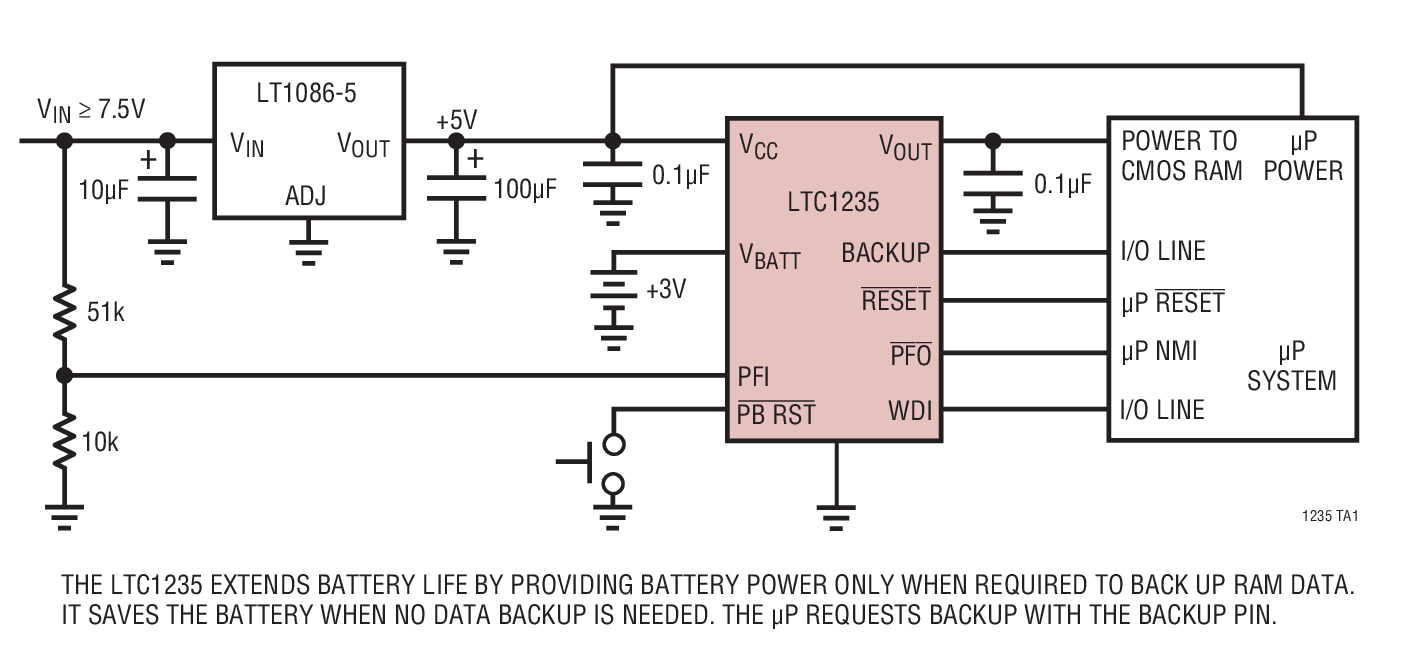

The LTC1235 provides complete power supply monitoring and battery control functions for microprocessor reset, battery backup, RAM write protection, power failure warning and watchdog timing. The LTC1235 has all the LTC695 features plus conditional battery backup and external reset control. When an out-of-tolerance power supply condition occurs, the reset outputs are forced to active states and the Chip Enable output write-protects external memory. The RESET output is guaranteed to remain logic low with V_CC as low as 1V. External reset control is provided by a debounced push-button reset input.

The LTC1235 powers the active CMOS RAMs with a charge pumped NMOS power switch to achieve low dropout and low supply current. When primary power is lost, auxiliary power, connected to the battery input pin, provides backup power to the RAMs. The LTC1235 can be programmed by a P signal to either back up the RAMs or not. This extends the battery life in situations where RAM data need not always be saved when power goes down.

For an early warning of impending power failure, the LTC1235 provides an internal comparator with a user-defined threshold. An internal watchdog timer is also available, which forces the reset pins to active states when the watchdog input is not toggled prior to the time-out period.

Applications

Critical µP Power Monitoring
Intelligent Instruments
Battery-Powered Computers and Controllers
Automotive Systems
