LTC1177

Obsolete

Isolated MOSFET Drivers

Data Sheet Product Selection Table
Viewing:

Part Details

OBSOLETE: For Information Purposes Only. Contact Analog Devices for Potential Replacement.

  • UL Recognized File E151738 to UL1577
  • No Secondary Power Supply
  • Drives Any Logic Level FET
  • Low Input Current: 1mA Typ (LTC1177-5), 2.5mA Typ (LTC1177-12)
  • Turns On in 1ms Typ and Turns Off in 1ms Typ
  • 2500VRMS of Isolation Voltage
  • Isolates Input from High Voltage Transients at Load
  • Clean, Bounce-Free Switching
  • Current Limit
  • Small Outline Package
LTC1177
Isolated MOSFET Drivers

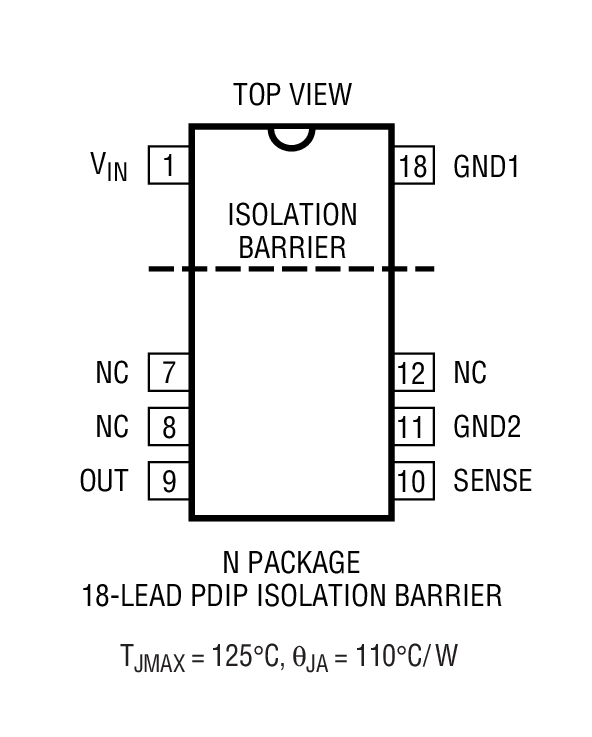

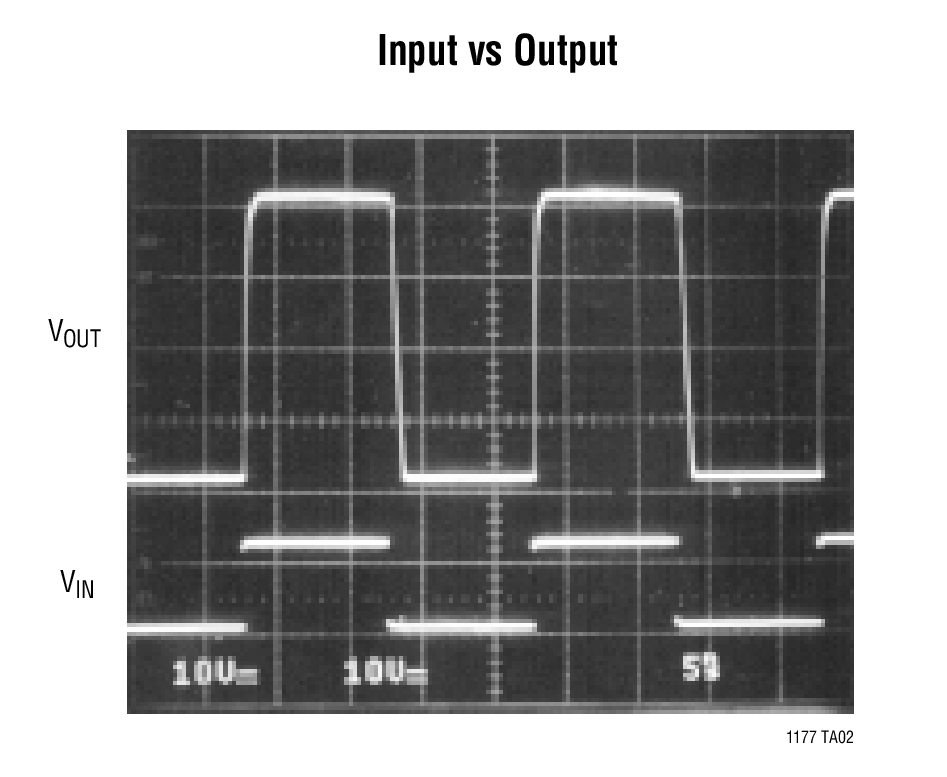

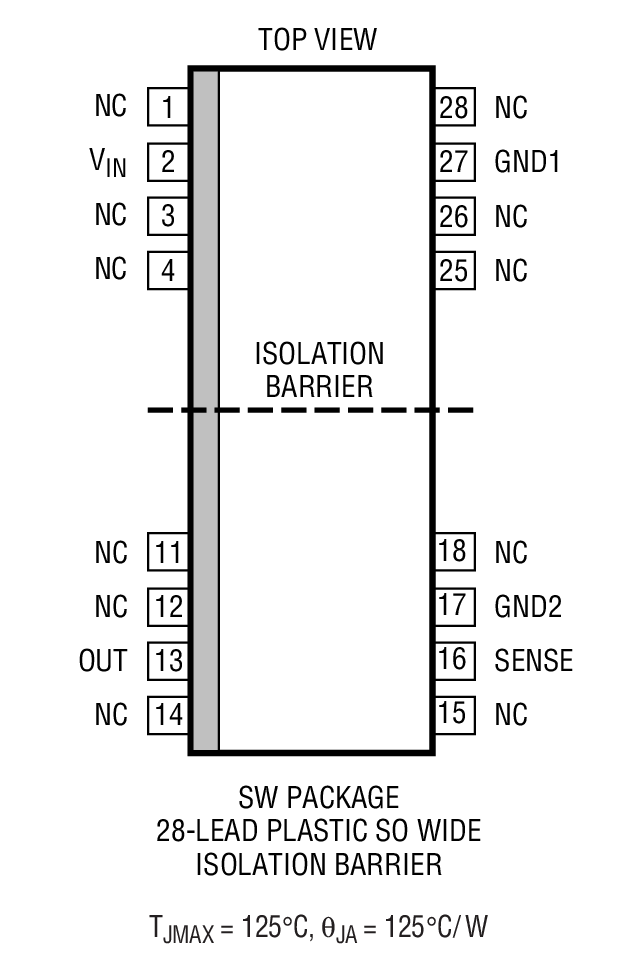

Isolated High Side Switch Input vs Output Product Package 1 Product Package 2
