LTC1165

Obsolete

Triple 1.8V to 6V High-Side MOSFET Drivers

Viewing:

Part Details

  • Operates from 1.8V to 6V
  • 0.01µA Standby Current
  • 95µA Operating Current per Channel at 3.3V
  • Fully Enhances N-Channel Switches
  • No External Charge Pump Components
  • Built-In Gate Voltage Clamps
  • Easily Protected Against Supply Transients
  • Controlled Switching ON and OFF Times
  • Compatible with 5V, 3V and Sub-3V Logic Families
  • Available in 8-Pin SOIC
LTC1165
Triple 1.8V to 6V High-Side MOSFET Drivers

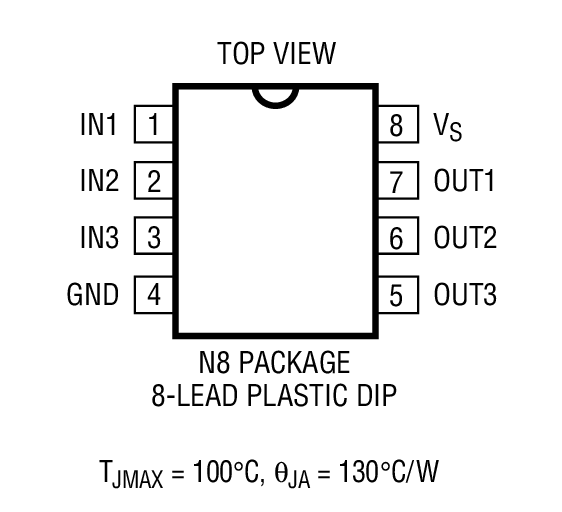

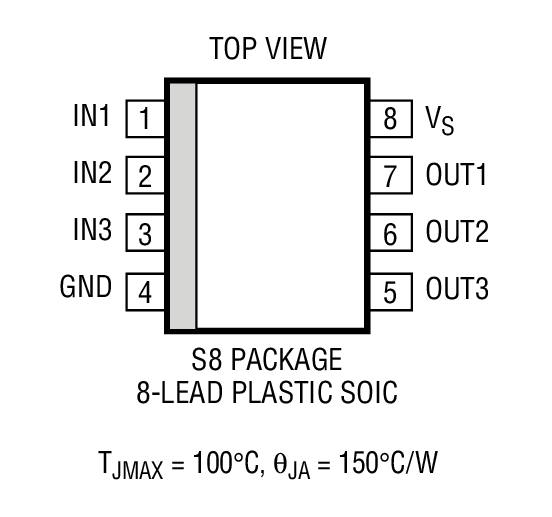

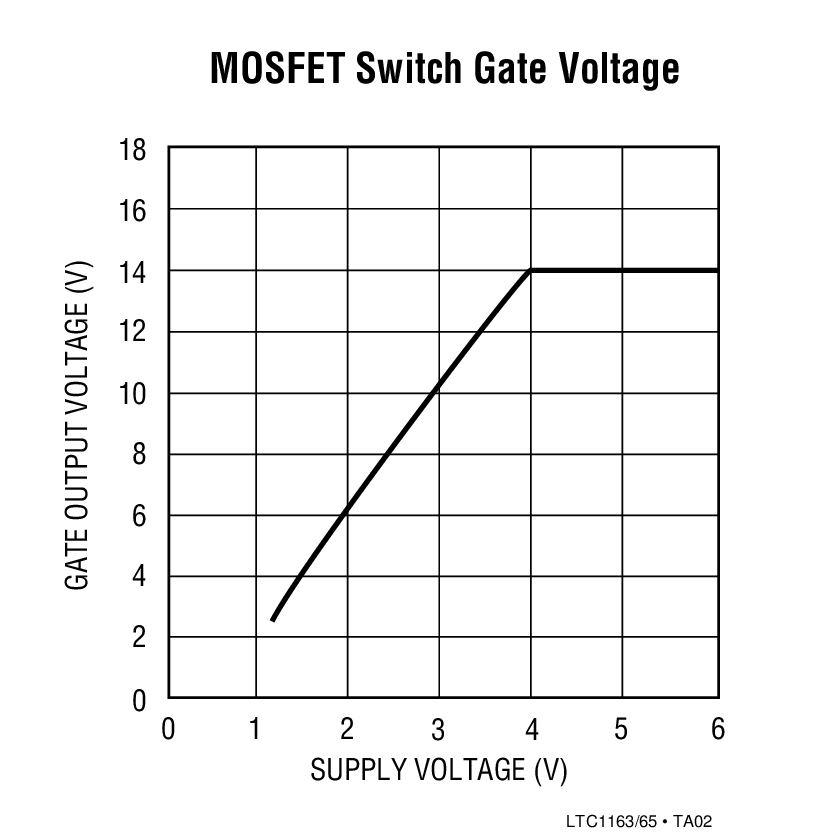

2-Cell Triple High-Side Switch MOSFET Switch Gate Voltage Product Package 1 Product Package 2
