Overview
Features and Benefits
- Dual Outputs: 3.3V and 5V or User Programmable
- Ultra-High Efficiency: Over 95% Possible
- Current Mode Operation for Excellent Line and Load Transient Response
- High Efficiency Maintained over 3 Decades of Output Current
- Low Standby Current at Light Loads: 160µA/Output
- Independent Micropower Shutdown: IQ < 40µA
- Wide VIN Range: 3.5V to 20V
- Very Low Dropout Operation: 100% Duty Cycle
- Synchronous FET Switching for High Efficiency

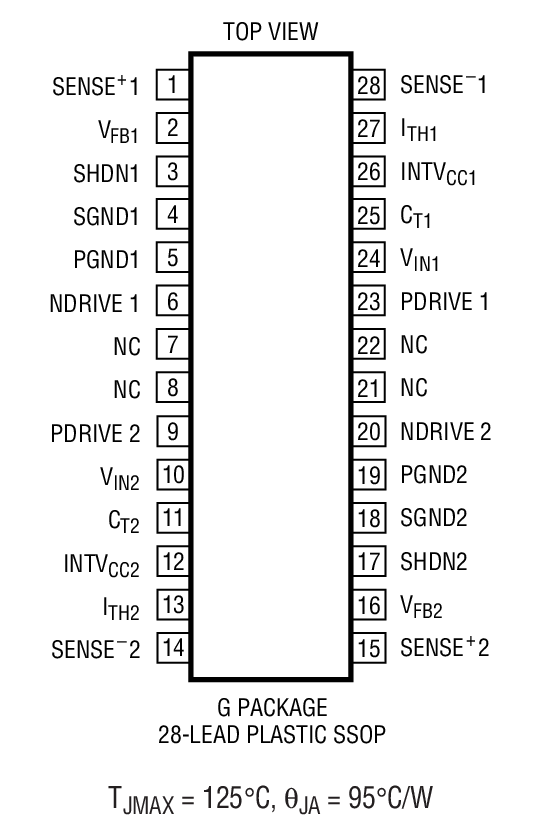

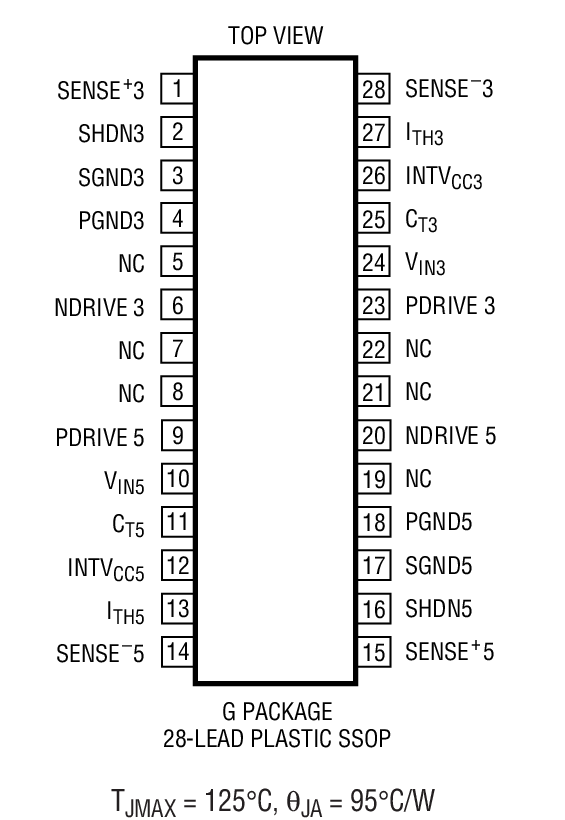

- Available in Standard 28-Pin SSOP
Product Details

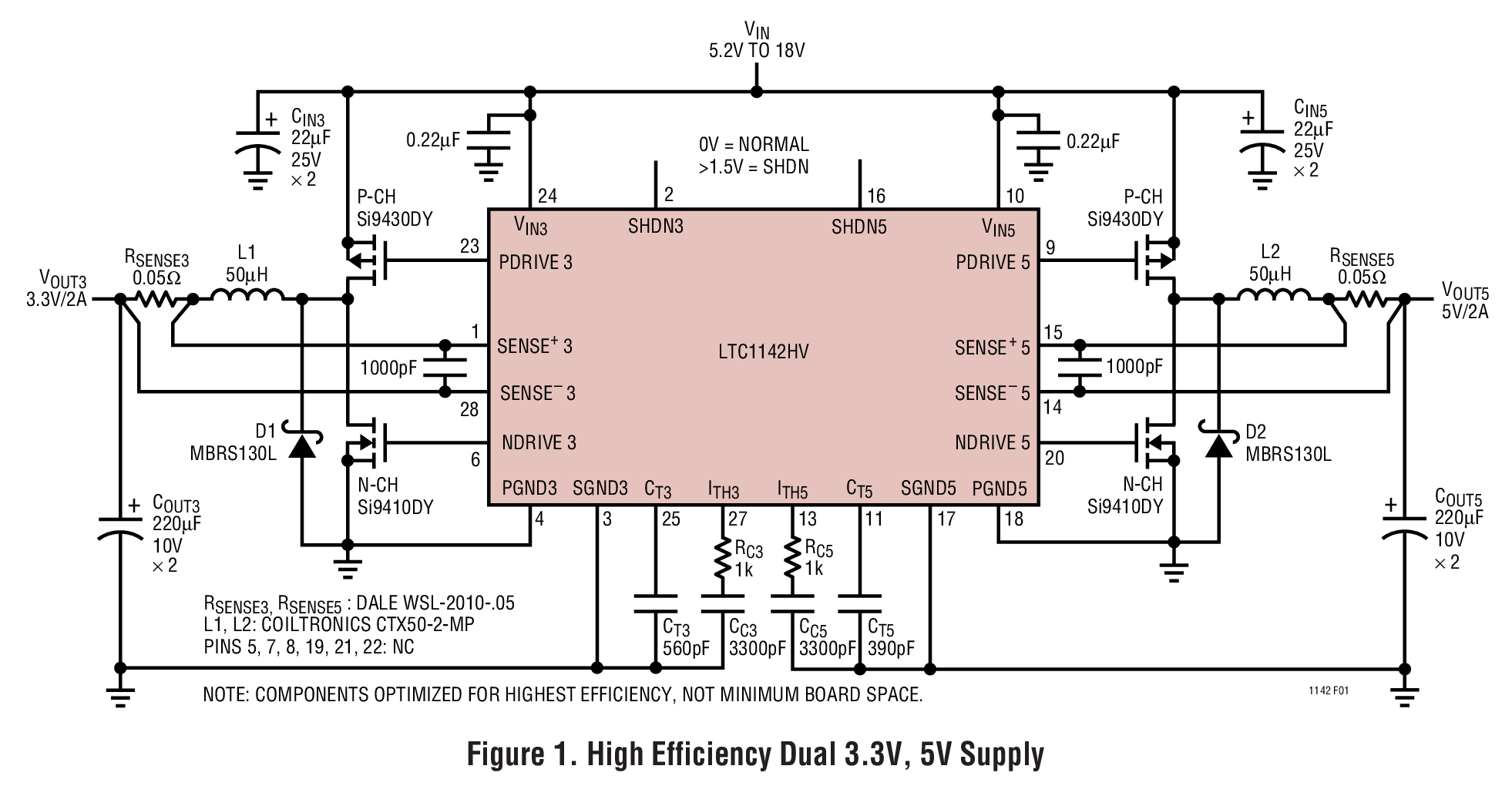

The LTC1142/LTC1142L/LTC1142HV are dual synchronous step-down switching regulator controllers featuring automatic Burst Mode™ operation to maintain high efficiencies at low output currents. The devices are composed of two separate regulator blocks, each driving a pair of external complementary power MOSFETs, at switching frequencies up to 250kHz, using a constant off-time current mode architecture providing constant ripple current in the inductor.
The operating current level for both regulators is user programmable via an external current sense resistor. Wide input supply range allows operation from 3.5V to 18V (20V maximum). Constant off-time architecture provides low dropout regulation limited only by the RDS(ON) of the external MOSFET and resistance of the inductor and current sense resistor.
The LTC1142 series is ideal for applications requiring dual output voltages with high conversion efficiencies over a wide load current range in a small amount of board space.
Applications
- Notebook and Palmtop Computers
- Battery-Operated Digital Devices
- Portable Instruments
- DC Power Distribution Systems
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R245 Reliability Data3/22/2018PDF21 K
-
AN60 - PCMCIA Card and Card Socket Power Management:8/20/2007PDF253K
-
AN54 - Power Conversion from Milliamps to Amps at Ultra-High Efficiency (Up to 95%)8/20/2007PDF454K
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Models for the following parts are available in LTspice:
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
---|---|---|---|---|
LTC1142CG#PBF | Material Declaration | Reliability Data | 28-Lead SSOP | |
LTC1142CG#TRPBF | Material Declaration | Reliability Data | 28-Lead SSOP | |
LTC1142HVCG#PBF | Material Declaration | Reliability Data | 28-Lead SSOP | |
LTC1142HVCG#TRPBF | Material Declaration | Reliability Data | 28-Lead SSOP | |
LTC1142HVCG-ADJ#PBF | Material Declaration | Reliability Data | 28-Lead SSOP | |
LTC1142HVCG-ADJ#TRPBF | Material Declaration | Reliability Data | 28-Lead SSOP | |
LTC1142LCG-ADJ#PBF | Material Declaration | Reliability Data | 28-Lead SSOP | |
LTC1142LCG-ADJ#TRPBF | Material Declaration | Reliability Data | 28-Lead SSOP | |
Wafer Fabrication Data | R245 Reliability Data |
