Features and Benefits
- Wide Input Voltage Range: 3.4V to 42V
- 2.5A and 1.5A Buck Regulators with Separate Inputs
- Fast Minimum Switch On-Time: 35ns
- Ultralow Quiescent Current Burst Mode® Operation:
- 6.5μA IQ Regulating 12VIN to 5VOUT and 3.3VOUT
- Output Ripple < 15mV
- 180° Out of Phase Switching
- Adjustable: 200kHz to 3MHz
- Synchronizable: 250kHz to 3MHz
- Accurate 1V Enable Pin Thresholds
- Internal Compensation
- Output Soft-Start and Tracking
- TSSOP Package: Output Stays at or Below Regulation Voltage During Adjacent Pin Short or When a Pin Is Left Floating
- Thermally Enhanced 28-Lead TSSOP and 3mm × 6mm QFN Packages
The LT8616 is a high efficiency, high speed, dual synchronous monolithic step-down switching regulator that consumes only 6.5μA of quiescent current with both channels enabled. Both channels contain all switches and necessary circuitry to minimize the need for external components. Low ripple Burst Mode operation enables high efficiency down to very low output currents while minimizing output ripple. A SYNC pin allows synchronization to an external clock. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The enable pins have accurate 1V thresholds and can be used to program undervoltage lockout. Capacitors on the TR/SS pins programs the output voltage ramp rate during startup while the PG pins signal when each output is within 10% of the programmed output voltage. The LT8616 is available in a TSSOP package for high reliability.
- Automotive and Industrial Supplies
- General Purpose Step-Down
Markets and Technologies
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

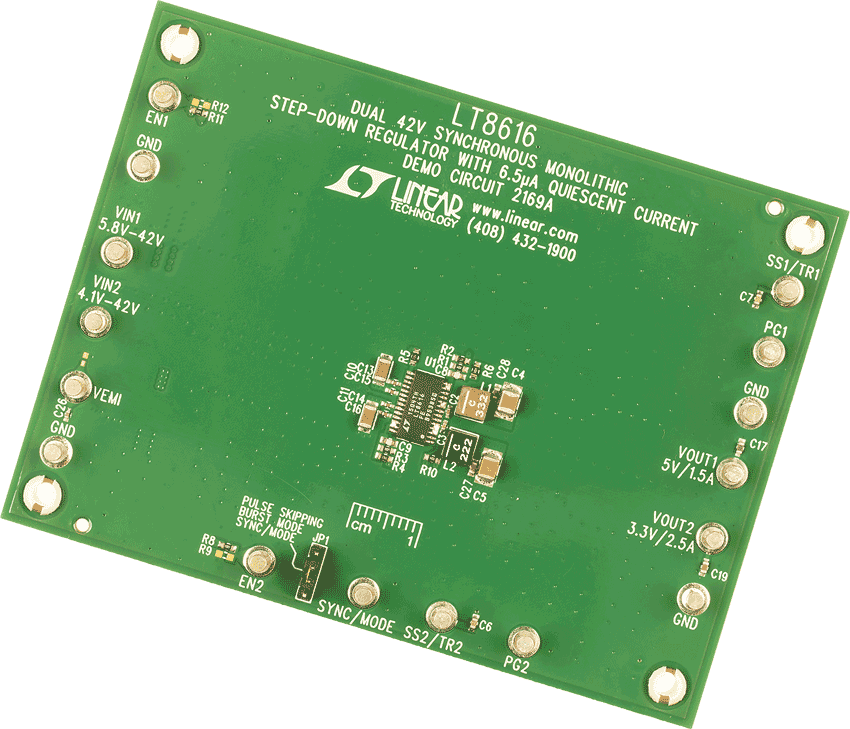

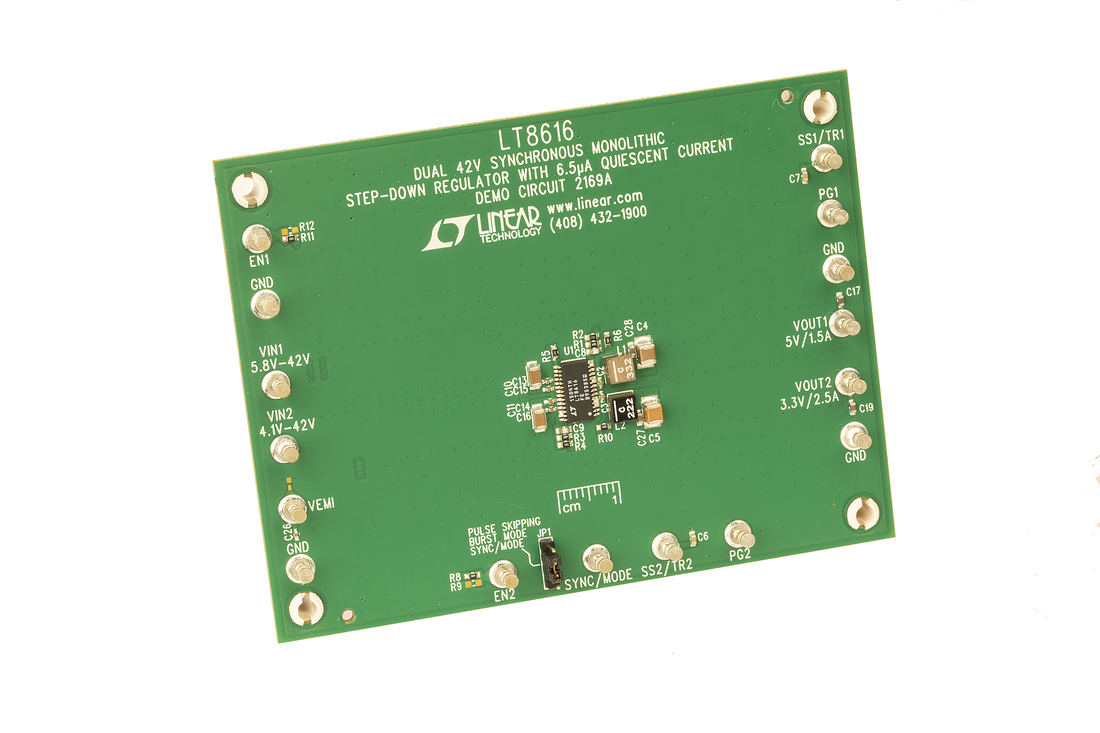

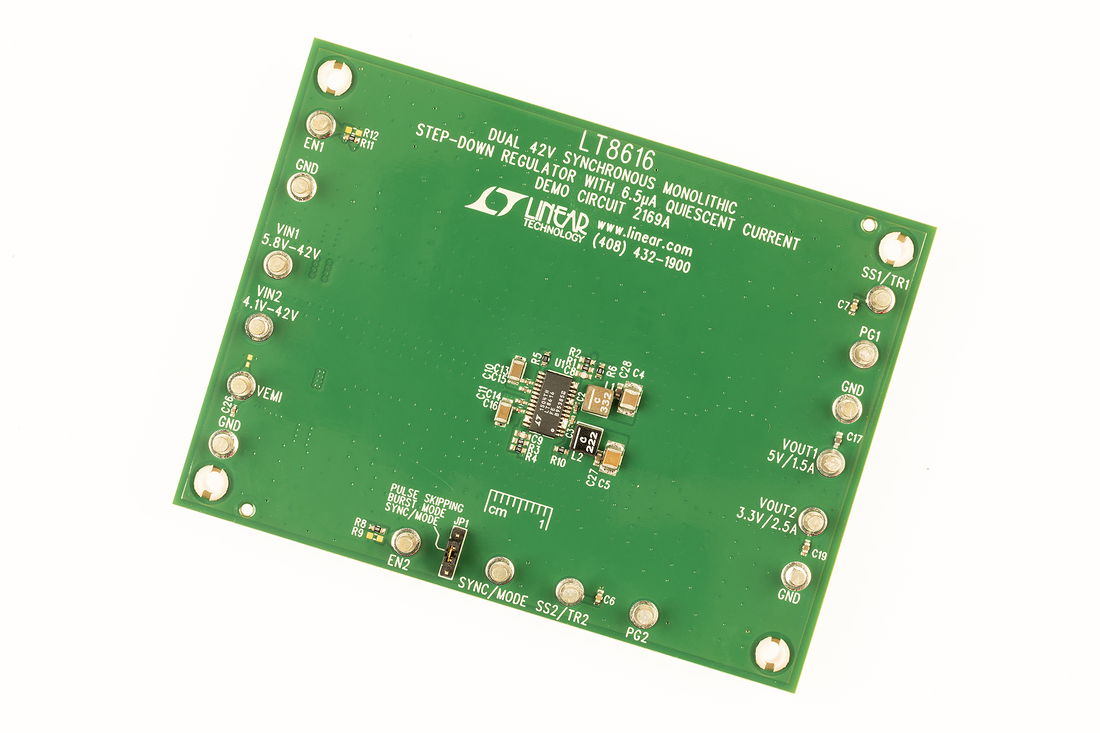

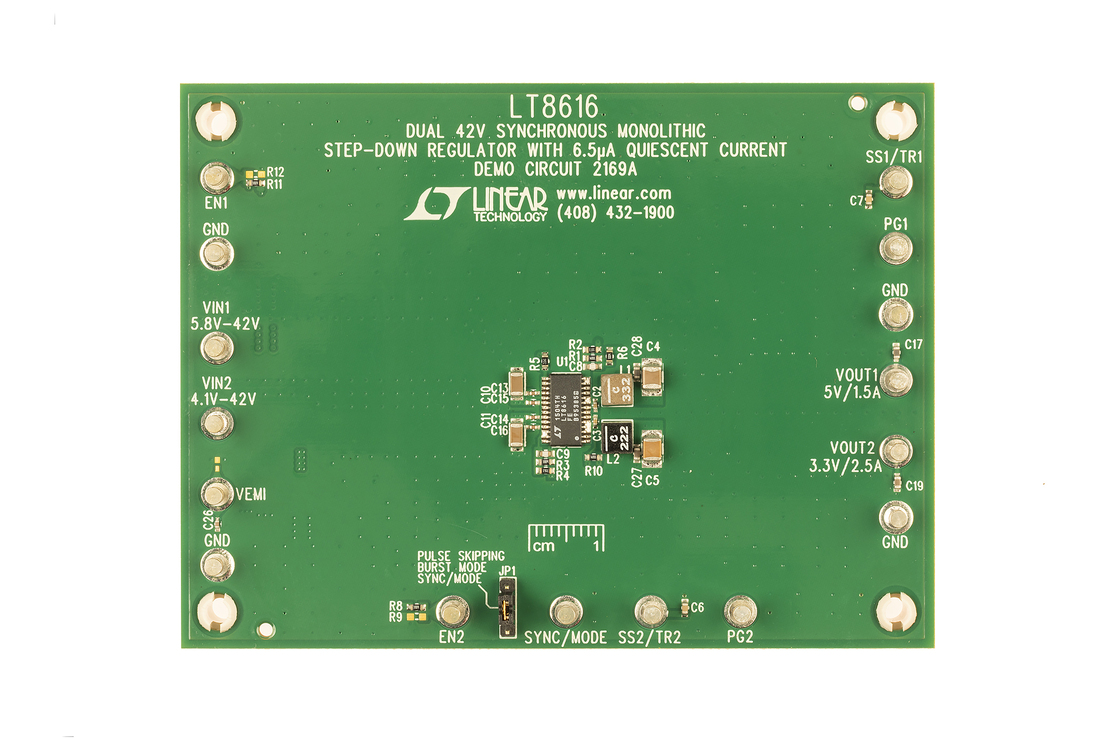

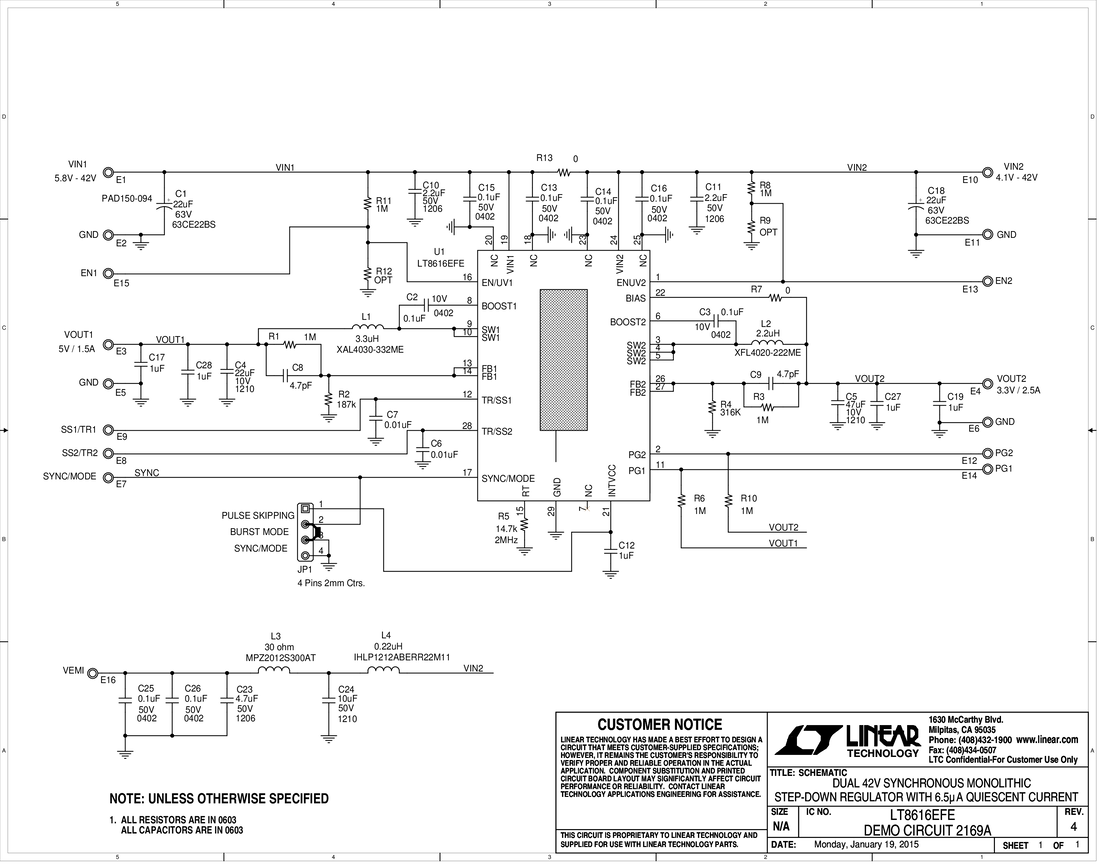

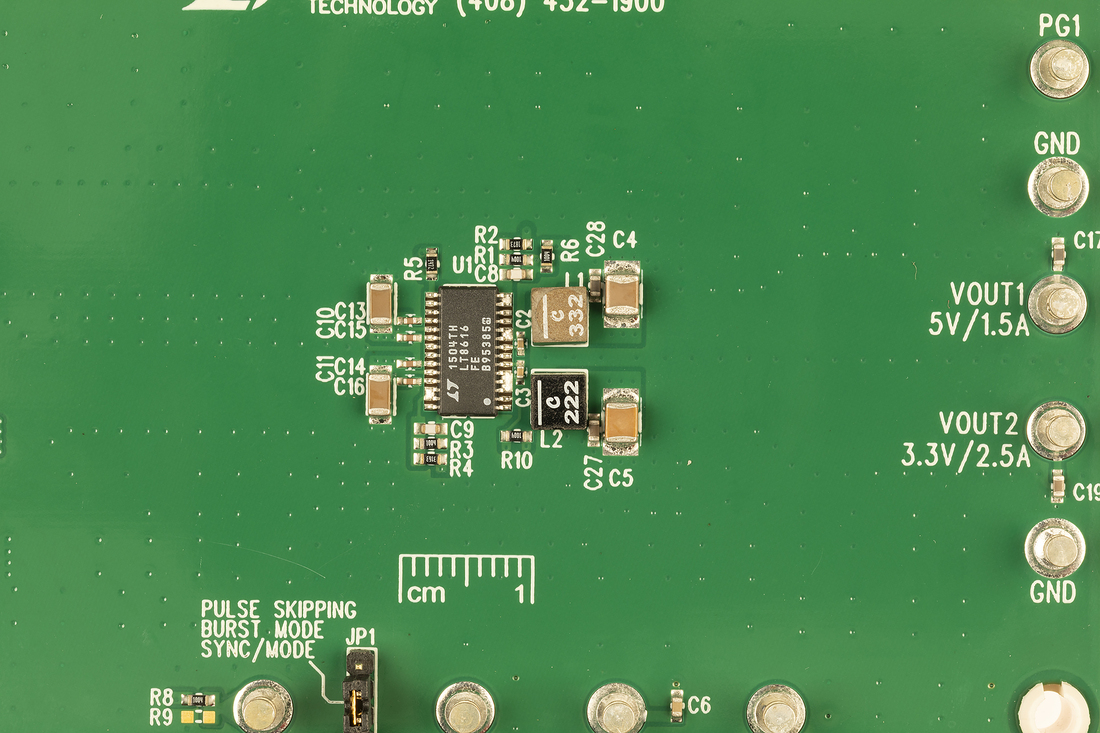

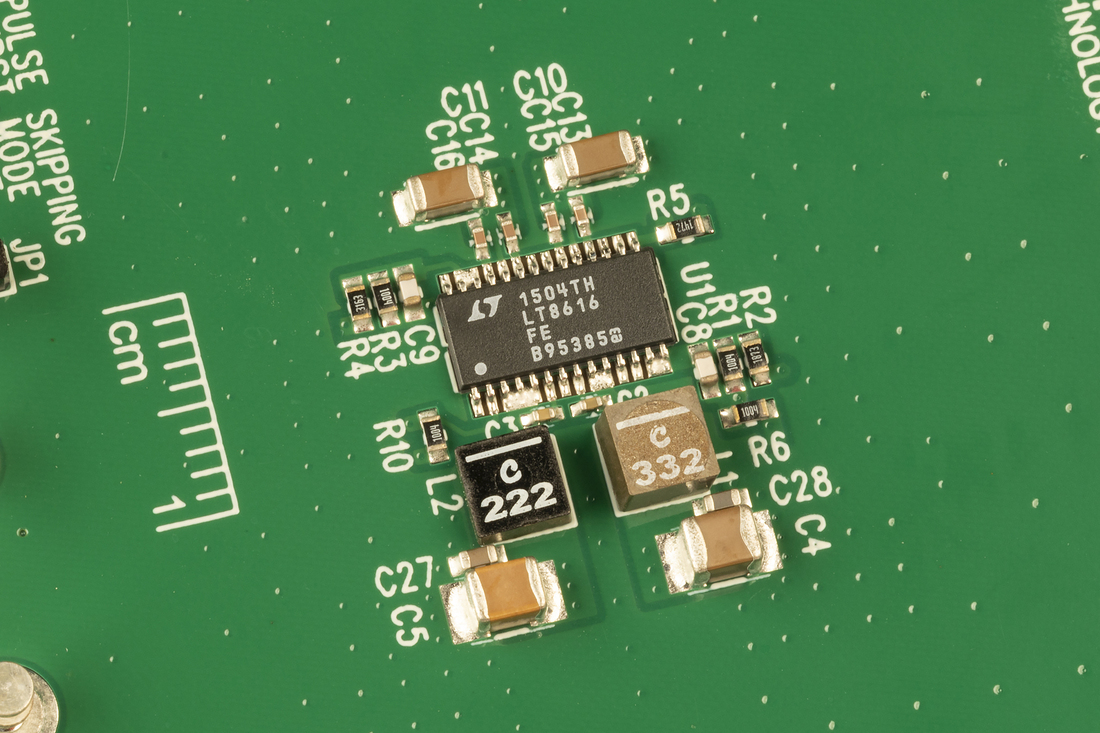

Demonstration circuit 2169A is a dual monolithic step-down DC/DC switching regulator featuring the LT8616. The LT8616 is a high efficiency, high speed, dual synchronous monolithic step-down switching regulator that consumes only 6.5μA of quiescent current with both channels enabled. The demo circuit is designed for 5V, 1.5A and 3.3V, 2.5A outputs. Both channels contain all switches and necessary circuitry to minimize the external components and solution size. Fast minimum ON time of 35ns enables high VIN to low VOUT conversion at high switching frequency. Independent input voltage, feedback, soft-start and power good pins for each channel simplify complex power supply tracking/sequencing requirements.
Documentation & Resources
R570 Reliability Data3/23/2018
DC2169A - Demo Manual5/6/2015
DUAL 42V, 2MHz Sync Buck5/12/2015
Electric Vehicle Wireless Battery Management Revolution Has Begun and the ROI Potential Is Huge11/5/2021 Thought Leadership
95% Efficient at 2MHz 42V Synchronous Buck6/24/2016
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.
To open the project file for this circuit:
Step 1: Download and install LTpowerCAD on your computer.
Step 2: Click on the link(s) in the section below to download part-specific project files.
Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.
LTpowerCAD Project Files
Design tools for the following parts are available in LTpowerCAD:
LT8616 Companion Parts
Recommended Related Parts
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT8616EFE#PBF||Material Declaration||Reliability Data||28-Lead TSSOP w/ EP|
|LT8616EFE#TRPBF||Material Declaration||Reliability Data||28-Lead TSSOP w/ EP|
|LT8616EUDE#PBF||Material Declaration||Reliability Data||28-Lead QFN (3mm x 6mm x 0.75mm w/ EP)|
|LT8616EUDE#TRPBF||Material Declaration||Reliability Data||28-Lead QFN (3mm x 6mm x 0.75mm w/ EP)|
|LT8616HFE#PBF||Material Declaration||Reliability Data||28-Lead TSSOP w/ EP|
|LT8616HFE#TRPBF||Material Declaration||Reliability Data||28-Lead TSSOP w/ EP|
|LT8616IFE#PBF||Material Declaration||Reliability Data||28-Lead TSSOP w/ EP|
|LT8616IFE#TRPBF||Material Declaration||Reliability Data||28-Lead TSSOP w/ EP|
|LT8616IUDE#PBF||Material Declaration||Reliability Data||28-Lead QFN (3mm x 6mm x 0.75mm w/ EP)|
|LT8616IUDE#TRPBF||Material Declaration||Reliability Data||28-Lead QFN (3mm x 6mm x 0.75mm w/ EP)|
|Wafer Fabrication Data||R570 Reliability Data|
