LT8610AC
LT8610AC-1

PRODUCTION

42V, 3.5A Synchronous Step-Down Regulator with 2.5μA Quiescent Current

Data Sheet (Rev. B) Product Selection Table

Part Models: 24
1ku List Price: Starting From $4.48

Viewing:

Part Details

LT8610 Feature Set, Plus:
- 3V Minimum Input Voltage
- 800mV Feedback Voltage
- 3.5A Maximum Output Current
- Fast 30ns Minimum Switch-On Time
- Improved Burst Mode Efficiency
- Improved EMI
Wide Input Voltage Range: 3V to 42V
Ultralow Quiescent Current Burst Mode^® Operation:
- 2.5μA I_Q Regulating 12V_IN to 3.3V_OUT
Low Dropout Under All Conditions: 200mV at 1A

High Efficiency Synchronous Operation:

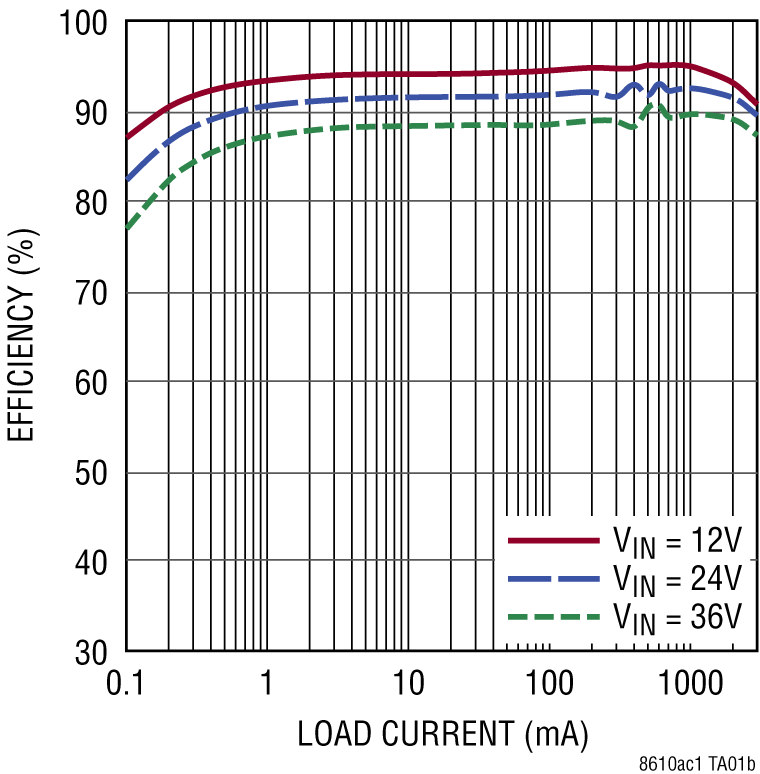

- 95% Efficiency at 1A, 5V_OUT from 12V_IN
- 93% Efficiency at 1A, 3.3V_OUT from 12V_IN
Safely Tolerates Inductor Saturation in Overload
Adjustable and Synchronizable Frequency:
- LT8610AC: 200kHz to 2.2MHz
- LT8610AC-1: 1.5MHz to 2.2MHz
Accurate 1.015V Enable Pin Threshold
Output Soft-Start and Tracking

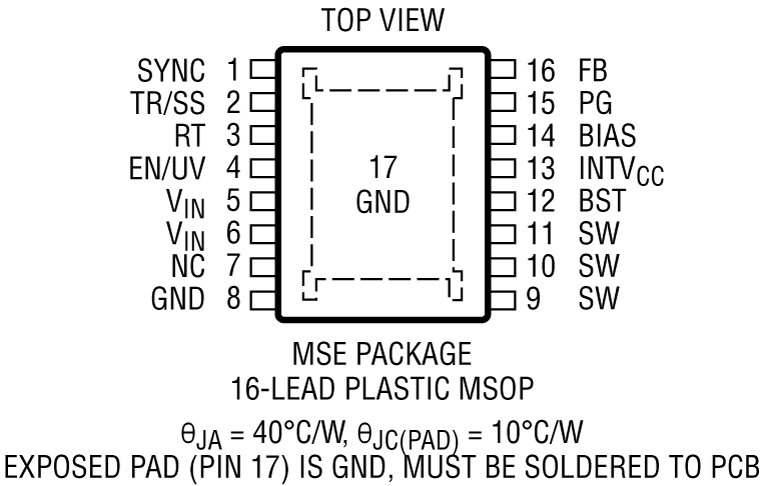

Small Thermally Enhanced 16-Lead MSOP Package
AEC-Q100 Qualified for Automotive Applications

The LT8610AC/LT8610AC-1 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5μA of quiescent current. Compared to the LT8610AB, the LT8610AC/LT8610AC-1 has a lower feedback voltage of 800mV and a lower minimum V_IN of 3V. The LT8610AC/LT8610AC-1 has the same additional features of the LT8610AB as compared to the LT8610: higher maximum output current of 3.5A, faster minimum on time of 30ns, and higher light load efficiency.

The LT8610AC/LT8610AC-1 has a SYNC pin for synchronization to an external clock. A capacitor on the TR/SS pin programs the output voltage ramp rate during startup. The PG flag signals when V_OUT is within ±8% of the programmed output voltage as well as fault conditions. The LT8610AC-1 has internal compensation optimized for high switching frequencies resulting in improved transient response compared to the LT8610AC. The LT8610AC-1 also has a feature which will soft-start the part when exiting dropout or brownout conditions reducing output voltage overshoot.


	Feedback Voltage	Min V_IN	Output Current	Notes
LT8610AC-1	0.80V	3.0V	3.5A	F_SW = 1.5MHz to 2.2MHz, Optimized Transient Response
LT8610AC	0.80V	3.0V	3.5A	F_SW = 200kHz to 2.2MHz
LT8610AB	0.97V	3.4V	3.5A	Improved Burst Mode Efficiency
LT8610AX	0.97V	3.4V	3.5A	175°C Max Junction Temp
LT8610A	0.97V	3.4V	3.5A	Higher I_OUT, 30ns Min On Time
LT8610	0.97V	3.4V	2.5A	-

Applications

Automotive and Industrial Supplies
GSM Power Supplies

Part Models: 24
1ku List Price: Starting From $4.48
