LT8471
Dual Multitopology DC/DC Converters with 2A Switches and Synchronization
Top
Overview
Features and Benefits
- Dual 2A and One 500mA, 50V Internal Power Switch Channels
- 2A Primary Channels Can Be Buck, Boost, SEPIC, ZETA, Flyback or Inverting DC/DC Converter
- 500mA Skyhook Channel Efficiently Generates Boosted Input Voltage
- Wide Input Voltage Range of 2.6V to 50V
- UVLO and OVLO Programmable on OV/UV Pin
- Soft-Start Programmable for Each Channel
- Fixed Frequency PWM (Set by RT Pin or Synchronized to External Clock)
- Anti-Phase Switching Reduces Input Ripple
- 20-Lead TSSOP and 28-Lead QFN Packages
Product Details
The LT8471 is a dual PWM DC/DC converter containing two internal 2A, 50V switches and an additional 500mA switch to facilitate step-down and inverting conversion. Each 2A channel can be independently configured as a buck, boost, SEPIC, flyback or inverting converter. Capable of generating positive and negative outputs from a single input rail, the LT8471 is ideal for many local power supply designs.
The LT8471 has an adjustable oscillator, set by a resistor placed from the RT pin to ground. Additionally, the LT8471 can be synchronized to an external clock. The free running or synchronized switching frequency range of the part can be set between 100kHz and 2MHz.
Additional features such as frequency foldback, soft-start, and power good are integrated. The LT8471 is available in 20-lead TSSOP and 28-Lead (4mm × 5mm) QFN packages.
Applications
- Dual Rail Power for Signal Chain.
- Buck/Buck, Buck/Boost, Boost/Boost, Boost/Invert, Invert/Invert, Buck/Invert
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
-
R530 Reliability Data3/26/2018PDF20 K
-

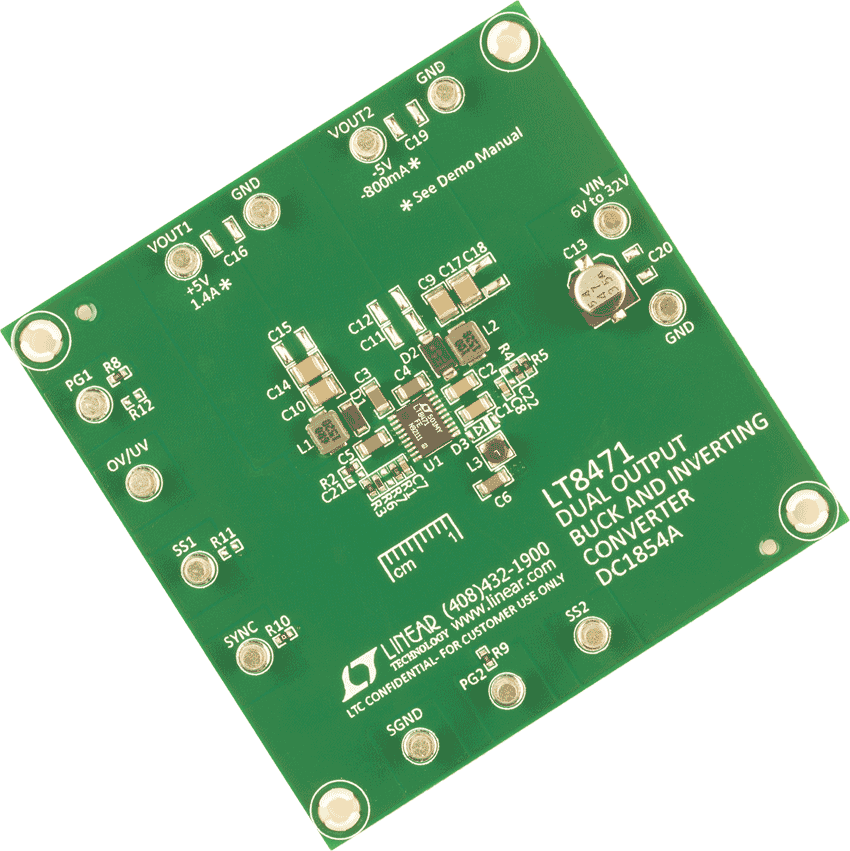

DC1854A - Demo Manual2/21/2014PDF394K
-
One Switcher Does It All9/2/2014PDF653K
-
LT8471 Video Product Brief10/15/2018
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LT8471
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LT8471EFE#PBF | Material Declaration | Reliability Data | 20-Lead TSSOP w/ EP | |
| LT8471EFE#TRPBF | Material Declaration | Reliability Data | 20-Lead TSSOP w/ EP | |
| LT8471EUFD#PBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LT8471EUFD#TRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LT8471HFE#PBF | Material Declaration | Reliability Data | 20-Lead TSSOP w/ EP | |
| LT8471HFE#TRPBF | Material Declaration | Reliability Data | 20-Lead TSSOP w/ EP | |
| LT8471IFE#PBF | Material Declaration | Reliability Data | 20-Lead TSSOP w/ EP | |
| LT8471IFE#TRPBF | Material Declaration | Reliability Data | 20-Lead TSSOP w/ EP | |
| LT8471IUFD#PBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| LT8471IUFD#TRPBF | Material Declaration | Reliability Data | 28-Lead QFN (4mm x 5mm x 0.75mm w/ EP) | |
| Wafer Fabrication Data | R530 Reliability Data |
