LT8312

Boost Controller with Power Factor Correction

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT8312 Demo Circuit - Universal Input 150W PFC Boost Converter (90-265VAC to 400V @ 375mA) Download 7.00KB LTspice LT8312 - Step-Up (Boost) Regulators Download 5.75 KB
Part Models 8
1ku List Price Starting From $2.72
Features
  • PFC Boost with Minimum Number of External Components
  • VIN and VOUT Limited Only by External Components
  • Active Power Factor Correction
  • Low Harmonic Distortion
  • Overvoltage Protection
  • Energy Star Compliant (<0.5W No-Load Operation)
  • 16-Lead MSOP Package
Additional Details
show more Icon

The LT8312 is a power factor correction (PFC) boost controller. A LT8312-based design can achieve a power factor of greater than 0.99 by actively modulating the input current, allowing compliance with most Harmonic Current Emission requirements.

The LT8312 is well suited for a wide variety of off-line applications. The input range can be scaled up or down, depending mainly on the choice of external components. Efficiencies higher than 95% can be achieved with output power levels up to 250W.

Applications

  • Industrial
  • Aviation
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT8312 Demo Circuit - Universal Input 150W PFC Boost Converter (90-265VAC to 400V @ 375mA) Download 7.00KB LTspice LT8312 - Step-Up (Boost) Regulators Download 5.75 KB
Part Models 8
1ku List Price Starting From $2.72
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT8312

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 02/22/2016
English

LT8312: Boost Controller with Power Factor Correction Data Sheet

Open PDF File

redirect
217.00K
download

Download PDF

PDF Vector

PDF

UPDATED 03/17/2015
Japanese

LT8312: 力率補正回路内蔵の昇圧コントローラ データシート

Open PDF File

redirect
409.00K
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 03/16/2015
English
DC2104A - Demo Manual (Rev.A) redirect icon

833.15 K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R530 Reliability Data redirect icon

20.92 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8312EMS#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8312EMS#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8312HMS#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8312HMS#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8312IMS#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8312IMS#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8312MPMS#PBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8312MPMS#TRPBF 16-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT8312EMS#PBF

PRODUCTION

LT8312EMS#TRPBF

PRODUCTION

LT8312HMS#PBF

PRODUCTION

LT8312HMS#TRPBF

PRODUCTION

LT8312IMS#PBF

PRODUCTION

LT8312IMS#TRPBF

PRODUCTION

LT8312MPMS#PBF

PRODUCTION

LT8312MPMS#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LT8312EMS#PBF

PRODUCTION

LT8312EMS#TRPBF

PRODUCTION

LT8312HMS#PBF

PRODUCTION

LT8312HMS#TRPBF

PRODUCTION

LT8312IMS#PBF

PRODUCTION

LT8312IMS#TRPBF

PRODUCTION

LT8312MPMS#PBF

PRODUCTION

LT8312MPMS#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT8312EMS#PBF

PRODUCTION

LT8312EMS#TRPBF

PRODUCTION

LT8312HMS#PBF

PRODUCTION

LT8312HMS#TRPBF

PRODUCTION

LT8312IMS#PBF

PRODUCTION

LT8312IMS#TRPBF

PRODUCTION

LT8312MPMS#PBF

PRODUCTION

LT8312MPMS#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LT8312EMS#PBF

PRODUCTION

LT8312EMS#TRPBF

PRODUCTION

LT8312HMS#PBF

PRODUCTION

LT8312HMS#TRPBF

PRODUCTION

LT8312IMS#PBF

PRODUCTION

LT8312IMS#TRPBF

PRODUCTION

LT8312MPMS#PBF

PRODUCTION

LT8312MPMS#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4366
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Voltage Surge Stopper

Evaluation Kits 1

reference details image

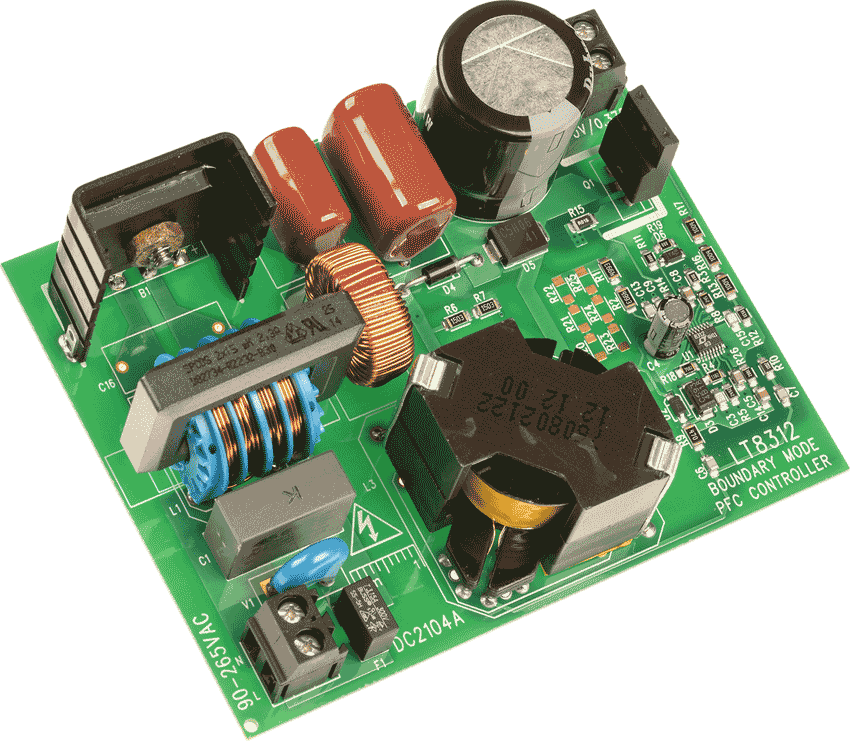

DC2104A

LT8312EMS Demo Board | Boost Controller with PFC, 90VAC ≤ VIN ≤ 265VAC; VOUT = 400Vdc @ 0.375A

zoom

DC2104A

LT8312EMS Demo Board | Boost Controller with PFC, 90VAC ≤ VIN ≤ 265VAC; VOUT = 400Vdc @ 0.375A

download icon

Download

 print icon

Print
DC2104A
LT8312EMS Demo Board | Boost Controller with PFC, 90VAC ≤ VIN ≤ 265VAC; VOUT = 400Vdc @ 0.375A
Buy Now View Details

Product Detail

Demonstration Circuit 2104A is an off-line boundary conduction mode power factor correction (PFC) boost converter featuring the LT8312. Boundary conduction mode offers inherent MOSFET valley switching to reduce the switching loss and the boost diode zero current switching to remove the diode reverse-recovery loss. The demo board provides a 400V/150W single constant-voltage output suitable for applications requiring regulated input voltage.

Resources

pdf icon

PDF

DC2104A - Demo Manual (Rev.A) Download

833.15 K

pdf icon

ZIP

DC2104A - Design Files Download

700.00K

pdf icon

PDF

DC2104A - Schematic Download

32.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC2104A

LT8312EMS Demo Board | Boost Controller with PFC, 90VAC ≤ VIN ≤ 265VAC; VOUT = 400Vdc @ 0.375A

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT8312 Demo Circuit - Universal Input 150W PFC Boost Converter (90-265VAC to 400V @ 375mA) Download

7.00K

spice tool Lt Spice

LT8312 - Step-Up (Boost) Regulators Download

5.75 K
