LT8204

NOT RECOMMENDED FOR NEW DESIGNS

40V Full-Bridge or Dual Half-Bridge Controller

Data Sheet (Rev. 0) Product Selection Table

Viewing:

Overview

Full-Bridge or Dual Half-Bridge Controller
Dual Bidirectional, Rail-to-Rail Precision Current Monitors (200μV V_OS)
Dual On-Chip 16-Bit Monotonic DACs
4-Wire SPI with Error Detection and Correction
Quad N-Channel MOSFET 5.3V Gate Drivers
V_IN Range: 5.5V to 40V

Configurable Output Current or Voltage Regulation
Configurable PWM Control Methods for Loop Stability
100kHz to 1MHz Fixed Switching Frequency with SYNC and Spread Spectrum
System Monitor and Fault Report via SPI Interface

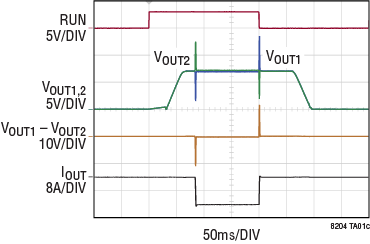

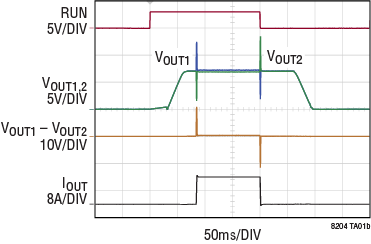

The LT8204 is a 40V full-bridge or dual half-bridge controller. It can be configured as either a four-switch full-bridge controller or dual two-switch half-bridge controllers to regulate either the output voltage or the output current. The LT8204 provides two selectable PWM control methods (i.e., peak current mode control and voltage mode control) to ease loop frequency compensation for applications with different load types (inductive, resistive, or capacitive loads).

The LT8204 features dual bidirectional rail-to-rail precision (200μV V_OS) load current monitors, output voltage monitors, and dual on-chip 16-bit monotonic digital-to-analog converters (DACs). Together with the serial peripheral interface (SPI), the output current or voltage can be programmed precisely on-the-fly. The LT8204 also monitors the system operation status and reports via SPI interface in case of failure (e.g., loss of load connection, failure of external MOSFET devices).
