LT4351

PRODUCTION

LT4351

MOSFET Diode-OR Controller

PRODUCTION

Part Details

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $3.32

Features

Low Loss Replacement for ORing Diode in Multiple Sourced Power Supplies
External N-Channel MOSFETs for High Current Capability
Internal Boost Regulator Supply for MOSFET Gate Drive
Wide Input Range: 1.2V to 18V
Fast Switching MOSFET Gate Control
Input Under and Overvoltage Detection
STATUS and FAULT Outputs for Monitoring
Internal MOSFET Gate Clamp

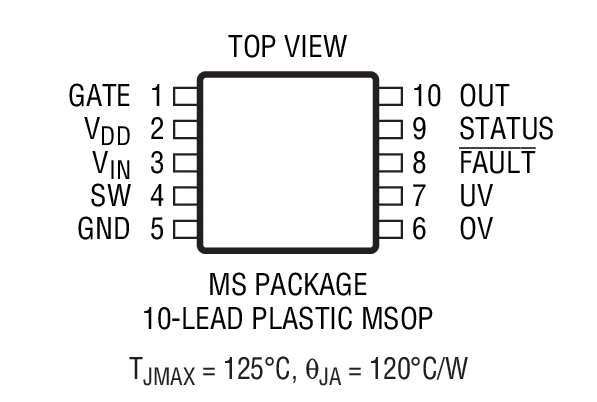

Available in a 10-pin MSOP

Additional Details

The LT4351 creates a near-ideal diode using external single or back-to-back N-channel MOSFETs. This ideal diode function permits low loss ORing of multiple power sources. Power sources can easily be ORed together to increase total system power and reliability with minimal effect on supply voltage or efficiency. Disparate power supplies can be efficiently ORed together.

The IC monitors the input supply with respect to the load and turns on the MOSFET(s) when the input supply is higher. If the MOSFET’s R_DS(ON) is sufficiently small, the LT4351 will regulate the voltage across the MOSFET(s) to 15mV. A STATUS pin indicates the MOSFET on-state.

An internal boost regulator generates the MOSFET gate drive voltage. Low operating voltage allows for ORing of supplies as low as 1.2V.

The LT4351 will disable power passage during undervoltage or overvoltage conditions. These voltages are set by resistive dividers on the UV and OV pins. The undervoltage threshold has user programmable hysteresis. Overvoltage detection is filtered to reduce false triggering.

The LT4351 is available in a 10-pin MSOP.

Applications

Paralleled Power Supplies
Uninterrupted Supplies
High Availability Systems
N + 1 Redundant Power Supplies

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $3.32

Documentation

Technical Documents 2

LT4351: MOSFET Diode-OR Controller Data Sheet 12/05/2011

R356 Reliability Data 03/26/2018

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT4351CMS#PBF	10-Lead MSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT4351CMS#TRPBF	10-Lead MSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT4351IMS#PBF	10-Lead MSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT4351IMS#TRPBF	10-Lead MSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LT4351CMS#PBF
Pin/Package Drawing
10-Lead MSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LT4351CMS#TRPBF
Pin/Package Drawing
10-Lead MSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LT4351IMS#PBF
Pin/Package Drawing
10-Lead MSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LT4351IMS#TRPBF
Pin/Package Drawing
10-Lead MSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT4351CMS#PBF

PRODUCTION

LT4351CMS#TRPBF

PRODUCTION

LT4351IMS#PBF

PRODUCTION

LT4351IMS#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

xls

Material_Report

pdf

Qualification Results Summary

xlsm

Delta Qualification Matrix

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT4351CMS#PBF

PRODUCTION

LT4351CMS#TRPBF

PRODUCTION

LT4351IMS#PBF

PRODUCTION

LT4351IMS#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

xls

Material_Report

Filter by Model

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT4351CMS#PBF

PRODUCTION

LT4351CMS#TRPBF

PRODUCTION

LT4351IMS#PBF

PRODUCTION

LT4351IMS#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

xls

Material_Report

pdf

Qualification Results Summary

xlsm

Delta Qualification Matrix

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT4351CMS#PBF

PRODUCTION

LT4351CMS#TRPBF

PRODUCTION

LT4351IMS#PBF

PRODUCTION

LT4351IMS#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

xls

Material_Report

Software & Part Ecosystem

Alternative Parts 1

Parts	Product Life Cycle	Description
LTC4352	RECOMMENDED FOR NEW DESIGNS	Low Voltage Ideal Diode Controller with Monitoring

Tools & Simulations

LTspice 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
