Features
- Ideal for CCD, LCD, LED Backlight and OLED Applications
- Easy Generation of 15V (50mA), –8V (100mA) and 20V (20mA) from a Li-Ion Cell
- VIN Range: 2.5V to 6V
- Wide Output Ranges: Up to 32V for the Boosts and Up to –32V for the Inverter
- Output Disconnect for the Boost Channels
- Boost3 Allows Voltage Programming and/or Current Programming for a ‘One Wire Current Source’
- Overload Fault Protection with Fault I/O Pin Indicator
- Combined Soft-Start and Enable Pins
- Small 20-Pin 3mm × 3mm QFN Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LT3587 provides a one-chip solution for applications requiring two positive and one negative high voltage supplies.The LT3587 input voltage range of 2.5V to 6V makes it ideal for various battery-powered systems.
A single resistor programs each of the three output voltage levels and the output current of Boost3. The intelligent soft-start allows for sequential soft-start of the Boost1 output followed by the negative output with a single capacitor. Internal sequencing circuitry also disables the inverter until the Boost1 output has reached 87% of its final value.
The LT3587 integrates all the power switches, soft-start, and output-disconnect circuits into a small 3mm × 3mm QFN package. This high level of integration combined with small external components makes the LT3587 ideal for space constrained applications.
Applications
- Digital Still and Video Cameras
- Scanner and Display Systems
- PDA, Cellular Phones and Handheld Computers
- LED Backlight and OLED Display Drivers
- CCD Imager Bias
- General High Voltage Supply Bias
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LT3587
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
Reliability Data
-
Technical Articles
-
All
-
English
Data Sheet
1
User Guide
1
1.00M
Reliability Data
1
20.92 K
Technical Articles
2
HTML
HTML
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Technical Articles 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LT3587EUD#PBF |
20-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
|
|
|
| LT3587EUD#TRPBF |
20-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
|
|
- LT3587EUD#PBF
- Pin/Package Drawing
-
20-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3587EUD#TRPBF
- Pin/Package Drawing
-
20-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Evaluation Kits 1

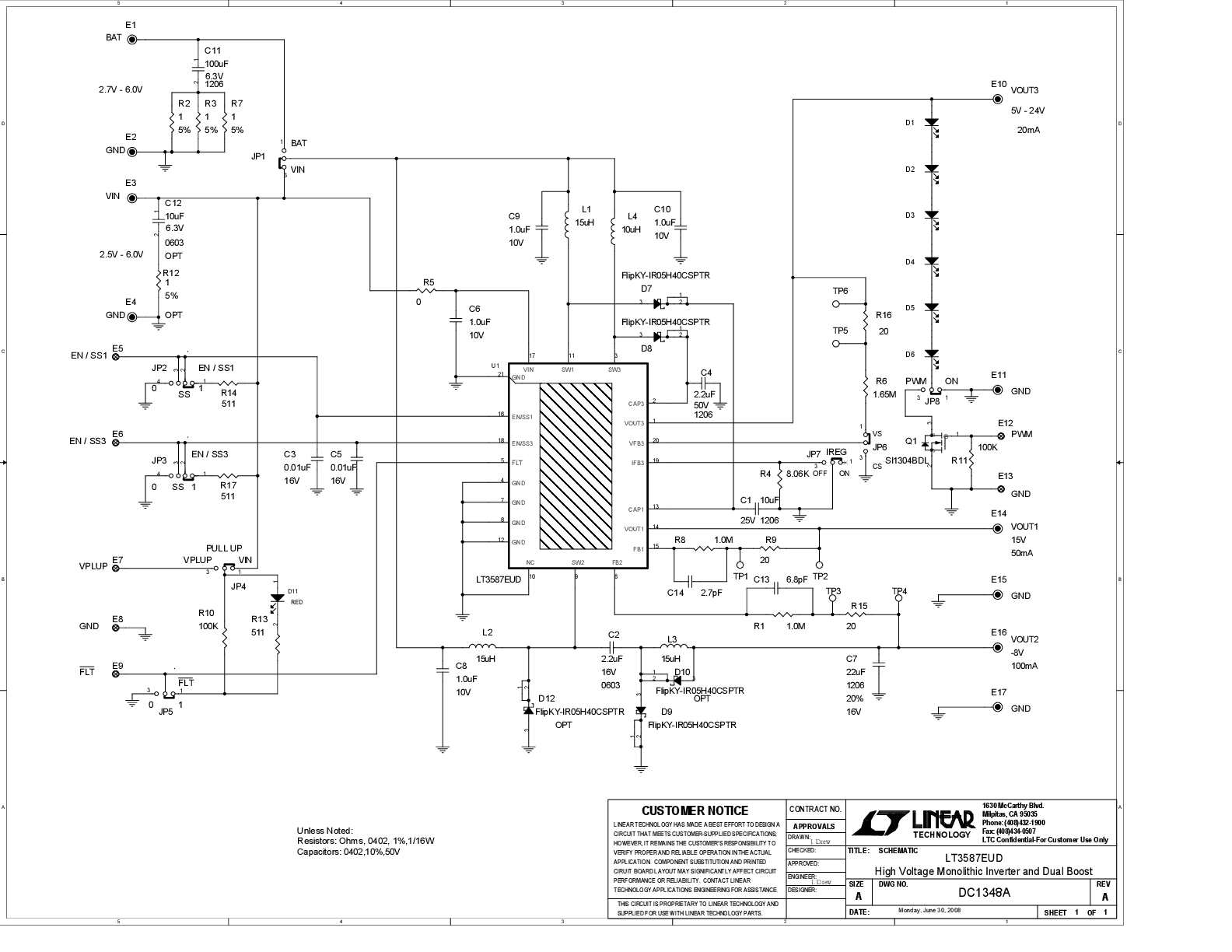

DC1348A
LT3587EUD DEMO BOARD | High Voltage Monolithic Inverter and Dual Boost
Product Detail
DC1348A: Demo Board for the LT3587 High Voltage Monolithic Inverter and Dual Boost
Resources
Tools & Simulations 1
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Lt Spice
