LT3572

Dual Full-Bridge Piezo Driver with 900mA Boost Converter

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LT3572 - Switching Regulators Download 2.61 KB LTspice LT3572 Demo Circuit - Dual Full-Bridge Piezo Driver w/ 900mA Boost Converter (3V to 30V@50mA) Download 3.00KB
Part Models 4
1ku List Price Starting From $3.31
Features
  • 2.7V to 10V Input Voltage Range
  • 900mA Boost Converter
  • Dual Full-Bridge Piezo Drivers
  • Programmable Switching Frequency from 500kHz to 2.25MHz
  • Synchronizable Up to 2.5MHz
  • Soft-Start
  • Separate Enable for Each Piezo Driver and Boost Converter
  • Available in a 4mm × 4mm 20-Pin QFN Package
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT3572 is a highly integrated dual Piezo motor driver capable of driving two Piezo motors at up to 40V from a 5V supply. Each Piezo driver can be independently turned on or off along with the boost converter.

The boost regulator has a soft-start capability that limits the inrush current at start-up. The boost regulator switching frequency is set by an external resistor or the frequency can be synchronized by an external clock. A PGOOD pin indicates when the output of the boost converter is in regulation and the Piezo drivers are allowed to start switching.

The LT3572 is available in a (4mm × 4mm) 20-pin QFN package.

Applications

  • Piezo Motor Drive
Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
LTspice LT3572 - Switching Regulators Download 2.61 KB LTspice LT3572 Demo Circuit - Dual Full-Bridge Piezo Driver w/ 900mA Boost Converter (3V to 30V@50mA) Download 3.00KB
Part Models 4
1ku List Price Starting From $3.31
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3572

Documentation

8
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Design Note
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 07/04/2024
English

LT3572: Dual Full-Bridge Piezo Driver with 900mA Boost Converter Data Sheet (Rev.C)

Open PDF File

redirect
442.67 K
download

Download PDF

PDF Vector

PDF

UPDATED 04/23/2009
Japanese

LT3572: 900mA昇圧コンバータ付きデュアル・フルブリッジ・ピエゾ・ドライバ データシート

Open PDF File

redirect
1.00M
download

Download PDF

Design Note

3

PDF Vector

PDF

UPDATED 03/17/2008
English
DN436 - Tiny Dual Full-Bridge Piezo Motor Driver Operates from Low Input Voltage redirect icon

113.00K

download

Download PDF

PDF Vector

PDF

UPDATED 07/21/2008
Chinese
DN436 - 纤巧型双通道全桥式压电电动机驱动器从低输入电压获取工作电源 redirect icon

815.00K

download

Download PDF

PDF Vector

PDF

UPDATED 04/25/2008
Japanese
DN436 - 低入力電圧で動作する小型デュアル・フルブリッジ圧電モーター・ドライバ redirect icon

663.00K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1197A - Demo Manual redirect icon

214.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R530 Reliability Data redirect icon

20.92 K

download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 01/01/2008
English
Small, High Efficiency Solution Drives Two Piezo Motors redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3572EUF#PBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3572EUF#TRPBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3572EUF#WPBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3572EUF#WTRPBF 20-Lead QFN (4mm x 4mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LT3572EUF#PBF

PRODUCTION

LT3572EUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LT3572EUF#PBF

PRODUCTION

LT3572EUF#TRPBF

PRODUCTION

pdf

PCN21_0269_Form

external-icon

xls

Material_Report

Download

pdf

Detailed Change Description

external-icon

pdf

Qualification Results Summary

external-icon

Software & Part Ecosystem

Evaluation Kits 1

Evaluation Kits1

evaluation kit item images

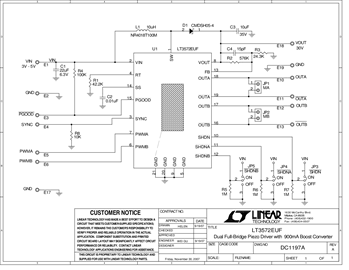

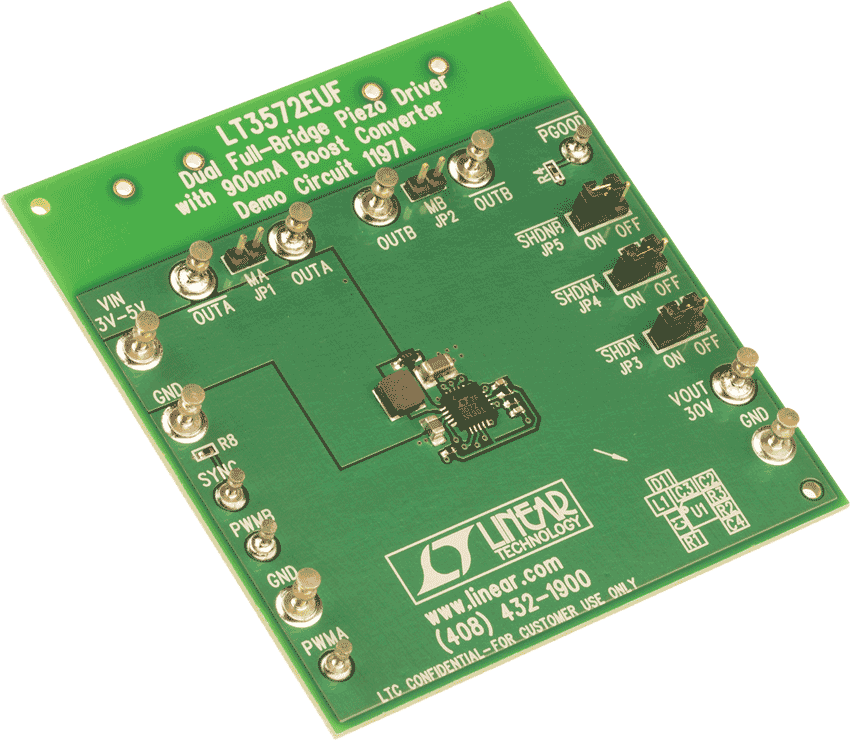

DC1197A
