Features and Benefits
- 2.5A, 0.12Ω, 40V Internal Switch
- 2MHz Switching Frequency
- Integrated Soft-Start Function
- VIN Range: 2.6V to 16V
- Adjustable Output from VIN to 40V
- Low VCESAT Switch: 110mV at 1A (Typical)
- 8V at 610mA from a 3.3V Input
- Internal or External Loop Compensation
- Small 8-Lead MS8E
The LT3489 is a ﬁxed frequency step-up DC/DC converter containing an internal 2.5A, 40V switch. The LT3489 is ideal for large TFT-LCD panel power supplies. The LT3489 switches at 2MHz, allowing the use of tiny, low proﬁle inductors and low value ceramic capacitors. Loop compensation can be either internal or external, giving the user ﬂexibility in setting loop compensation and allowing optimized transient response with low ESR ceramic output capacitors. Soft-start is controlled with an external capacitor, which determines the input current ramp rate during start-up.
The 8-lead MS8E package and high switching frequency ensure a low proﬁle overall solution less than 1.1mm high.
- TFT-LCD Bias Supplies
- GPS Receivers
- DSL Modems
- Local Power Supply
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

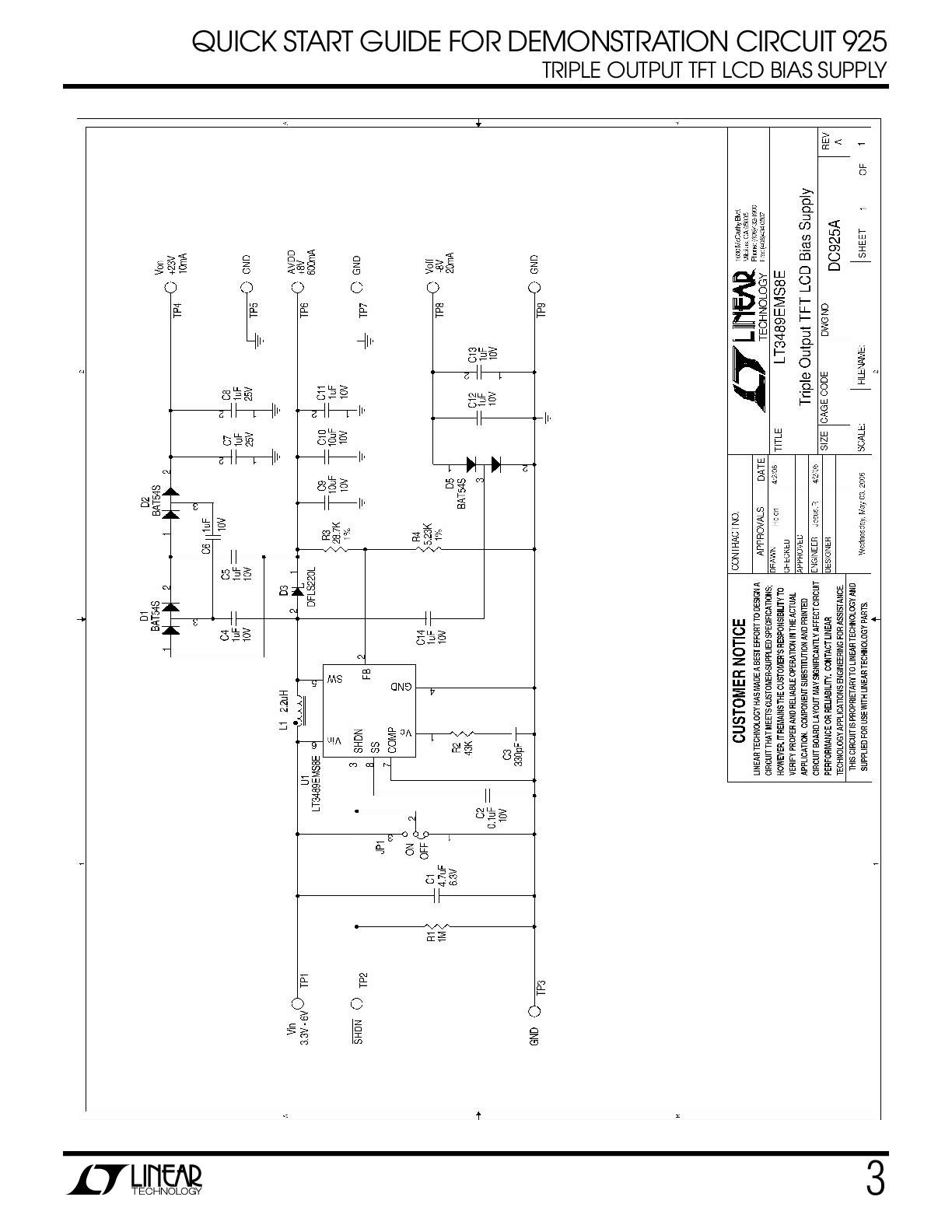

Demonstration circuit 925 features the LT3489EMS8E in a circuit specifically designed to drive large TFT/LCD displays. The demo circuit demonstrates small size and low component count in a Boost Circuit. It converts a 3.3V-6V input to 8V at 600mA, 23V at 10mA and -8V at 20mA. Since the maximum Vin of the LT3489 is 16V, this Demo circuit will work well at higher inputs. The only limitation is that the input has to be lower than the Boost converter output (8V) in order to stay in regulation. This circuit is designed to demonstrate the capacitor programmable Soft-Start feature, advantages of the 2MHz constant switching frequency and the internal 2.5A, 40V switch.
Documentation & Resources
R530 Reliability Data3/26/201820 K
DC925A - Demo Manual9/24/20091M
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT3489EMS8E#PBF||Material Declaration||Reliability Data||8-Lead MSOP w/ EP|
|LT3489EMS8E#TRPBF||Material Declaration||Reliability Data||8-Lead MSOP w/ EP|
|Wafer Fabrication Data||R530 Reliability Data|
