LT3436

PRODUCTION

LT3436

3A, 800kHz Step-Up Switching Regulator

PRODUCTION

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $3.72

Features

Constant 800kHz Switching Frequency
Wide Operating Voltage Range: 3V to 25V
High Efficiency 0.1Ω/3A Switch
1.2V Feedback Reference Voltage
±2% Overall Output Voltage Tolerance
Uses Low Profile Surface Mount External Components
Low Shutdown Current: 11µA
Synchronizable from 1MHz to 1.4MHz
Current-Mode Control
Constant Maximum Switch Current Rating at All Duty Cycles*

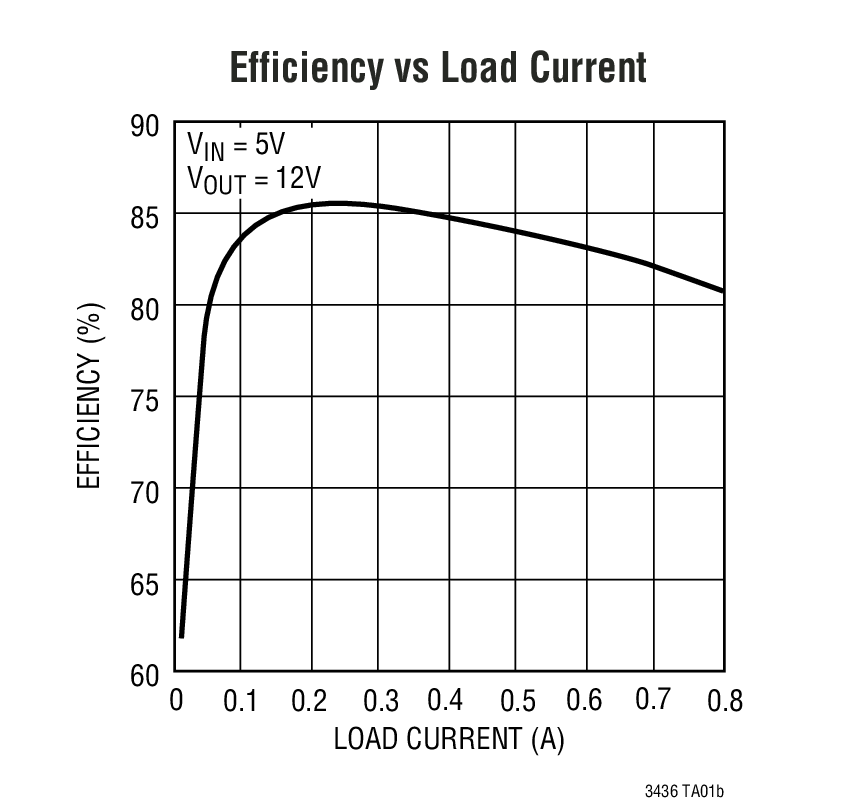

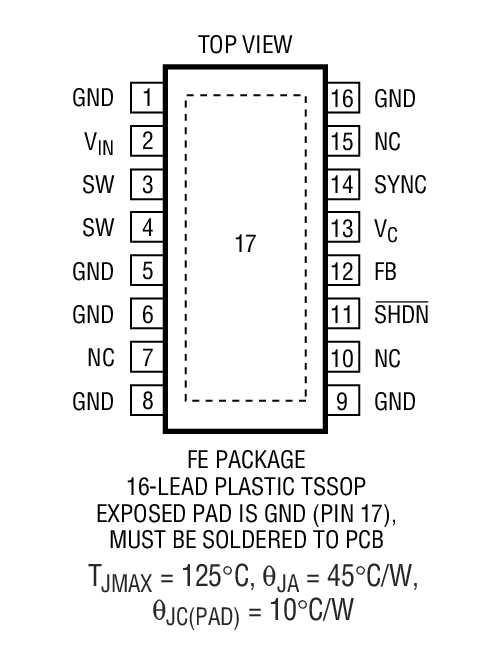

Available in a Small Thermally Enhanced TSSOP-16 Package

Additional Details

The LT3436 is an 800kHz monolithic boost switching regulator. A high efficiency 3A, 0.1Ω switch is included on the die together with all the control circuitry required to complete a high frequency, current-mode switching regulator. Current-mode control provides fast transient response and excellent loop stability.

New design techniques achieve high efficiency at high switching frequencies over a wide operating range. A low dropout internal regulator maintains consistent performance over a wide range of inputs from 24V systems to Li- Ion batteries. An operating supply current of 1mA maintains high efficiency, especially at lower output currents. Shutdown reduces quiescent current to 11µA. Maximum switch current remains constant at all duty cycles. Synchronization capability allows an external logic level signal to increase the internal oscillator from 1MHz to 1.4MHz.

Full cycle-by-cycle switch current limit protection and thermal shutdown are provided. High frequency operation allows the reduction of input and output filtering components and permits the use of tiny chip inductors. The LT3436 is available in an exposed pad, 16-pin TSSOP package.

*Patent numbers 6,535,042; 6,611,131; 6,498,466

Applications

DSL Modems
Portable Computers
Battery-Powered Systems
Distributed Power

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $3.72

Technical Documents 6

LT3436: 3A, 800kHz Step-Up Switching Regulator Data Sheet 08/28/2007

R388 Reliability Data 03/26/2018

DC533A - Demo Manual 09/24/2009

AN-105: Current Sense Circuit Collection Making Sense of Current 12/01/2005

Finally, High Voltage Current Sensing Made Easy 05/01/2005

Boost Converter Drives 1A White LEDs 05/01/2004

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT3436EFE#PBF	16-Lead TSSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT3436EFE#TRPBF	16-Lead TSSOP w/ EP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LT3436EFE#PBF
Pin/Package Drawing
16-Lead TSSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LT3436EFE#TRPBF
Pin/Package Drawing
16-Lead TSSOP w/ EP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3436EFE#PBF

PRODUCTION

LT3436EFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Filter by Model

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3436EFE#PBF

PRODUCTION

LT3436EFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Companion Parts 2

Parts	Product Life Cycle	Description
Silicon Oscillators2
LTC6908		Resistor Set SOT-23 Oscillator with Spread Spectrum Modulation
LTC6909	PRODUCTION	1 to 8 Output, Multiphase Silicon Oscillator with Spread Spectrum Modulation

DC533A

LT3436EFE Demo Board | 3.2V ≤ VIN ≤ to 12V, VOUT = 12V @ up to 2A

DC533A

LT3436EFE Demo Board | 3.2V ≤ VIN ≤ to 12V, VOUT = 12V @ up to 2A

Buy Now View Details

Product Detail

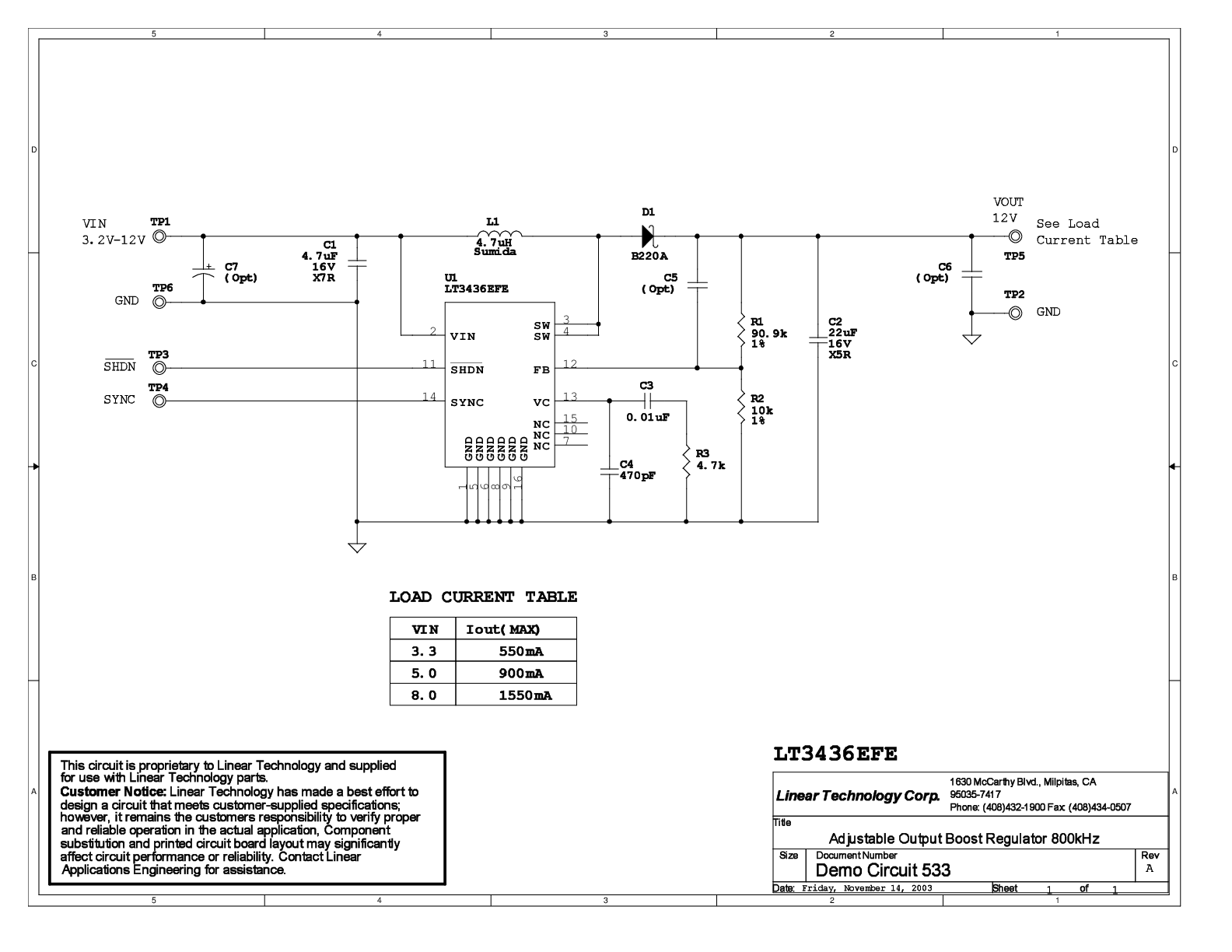

Demonstration circuit 533 is an 800kHz adjustable output boost regulator featuring the LT3436. This current-mode control monolithic (switch included) converter has a wide operating supply voltage of 3V to 25V and a minimum peak switch current rating of 3A, though the demo board has a reduced input voltage range of 3.2V to 12V. It provides 12V at 550mA from a 3.3V input and 12V at 900mA from a 5V input.

Resources

PDF

DC533A - Schematic

80.00K

PDF

DC533A - Demo Manual

1.00M

ZIP

DC533A - Design File

519.00K

DC533A

LT3436EFE Demo Board | 3.2V ≤ VIN ≤ to 12V, VOUT = 12V @ up to 2A

LTspice 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
