Overview

Features and Benefits

  • Quad I2C Adjustable High Efficiency Step-Down DC/DC Converters: 2.5A, 2.5A, 1.5A, 1.5A
  • Three 300mA LDO Regulators (Two Adjustable)
  • Independent Enable Pin-Strap or I2C Sequencing
  • Programmable Autonomous Power-Down Control
  • Warnings and Faults
  • IRQ Pin and IRQ Status Register
  • Power Good Pin and Status Register
  • 150°C TJ Operation (LT3380H)
  • Dynamic Voltage Scaling
  • Selectable 2.25MHz or 1.12MHz Switching Frequency
  • 12µA Standby Current
  • Side Wettable 40-Lead 6mm × 6mm QFN Package
  • AEC-Q100 Qualified for Automotive Applications

Product Details

The LT3380 is a complete power management solution for advanced portable application processor-based systems. The device contains four synchronous step-down DC/DC converters for core, memory, I/O, and system onchip (SoC) rails and three 300mA LDO regulators for low noise analog supplies. An I2C serial port may be used to control regulator enables, power-down sequencing, output voltage levels, dynamic voltage scaling, operating modes, and status reporting.

Regulator start-up is sequenced by connecting outputs to enable pins in the desired order or via the I2C port. The LT3380 outputs may be sequenced off in one of four time slots selected using I2C command registers.

The device is available in a 40-lead 6mm × 6mm QFN with wettable flanks for optical inspection.

APPLICATIONS

  • Automotive
  • Industrial
  • Communications
  • General Purpose Multichannel Power Supplies

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

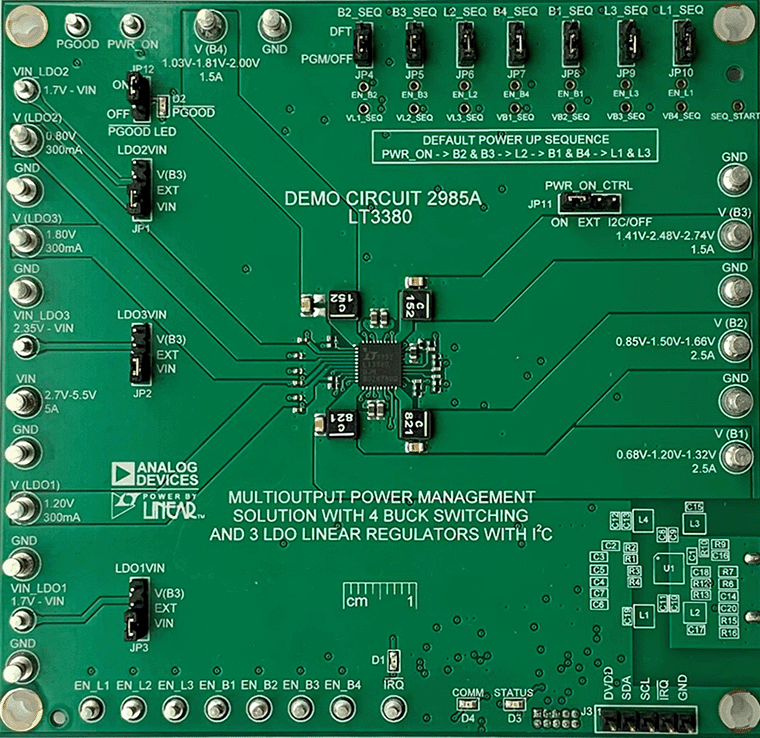

Evaluation Kits (1)
