LT137A/LM137/LT337A/LM337: Negative Adjustable Regulator Data Sheet10/2/2017PDF152K
Overview
Features and Benefits
- The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Analog Devices Are Now Obsolete
- Guaranteed 1% Initial Voltage Tolerance
- Guaranteed 0.01%/V Line Regulation
- Guaranteed 0.5% Load Regulation
- Guaranteed 0.02%/W Thermal Regulation
- 100% Burn-in in Thermal Limit
Product Details
The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Analog Devices Are Now Obsolete

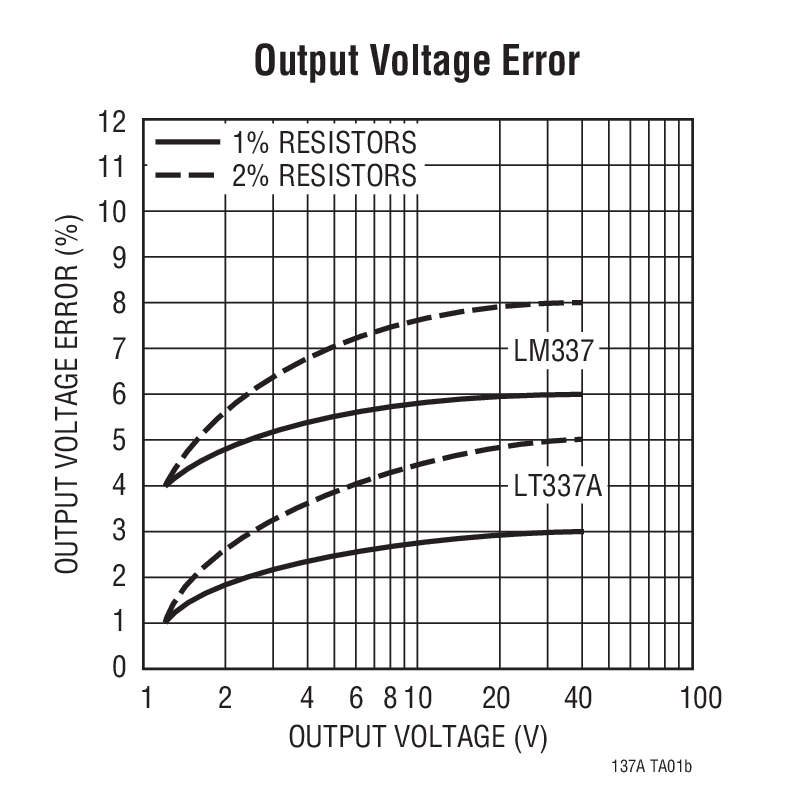

The LT137A/LT337A negative adjustable regulators will deliver up to 1.5Amps output current over an output voltage range of - 1.2V to -37V. We have made significant improvements in these regulators compared to previous devices, such as better line and load regulation, and a maximum output voltage error of 1%.
Every effort has been made to make these devices easy to use and difficult to damage. Internal current and power limiting coupled with true thermal limiting prevents device damage due to overloads or shorts, even if the regulator is not fastened to a heat sink.
Maximum reliability is attained with our advanced processing techniques combined with a 100% burn-in in the thermal limit mode. This assures that all device protection circuits are working and eliminates field failures experienced with other regulators that receive only standard electrical testing.
Applications
- The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Analog Devices Are Now Obsolete
- Adjustable Power Supplies
- System Power Supplies
- Precision Voltage/Current Regulators
- On-Card Regulators
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
R063 Reliability Data3/22/2018PDF20 K
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
---|---|---|---|---|

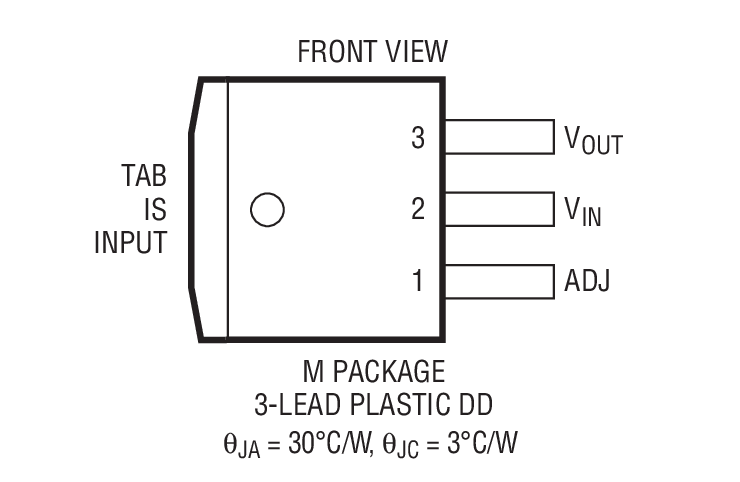

LT337AM#PBF | Material Declaration | Reliability Data | 3-Lead DD Pak | |
LT337AM#TRPBF | Material Declaration | Reliability Data | 3-Lead DD Pak | |

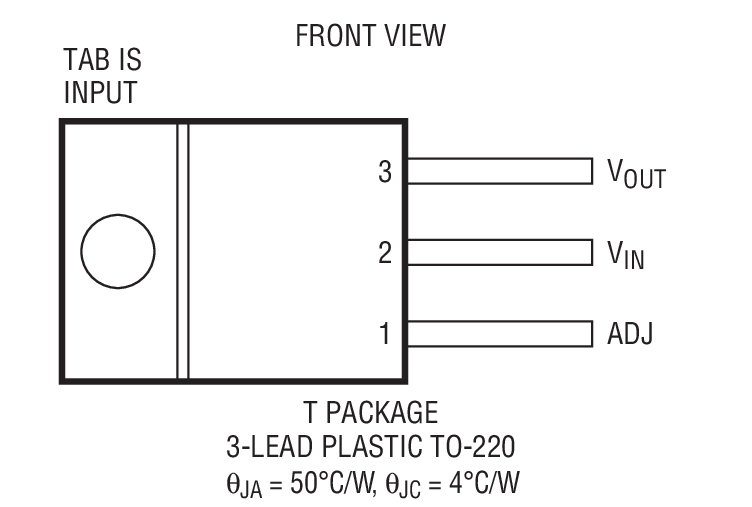

LT337AT#PBF | Material Declaration | Reliability Data | 3-Lead TO-220 | |
Wafer Fabrication Data | R063 Reliability Data |
