LT3066
45V VIN, 500mA Low Noise, Linear Regulator with Programmable Current Limit and Active Output Discharge
Show More
Not the part you were looking for?
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Input Voltage Range: 1.8V to 45V
- Output Current: 500mA
- Active Output Discharge
- Dropout Voltage: 300mV
- Programmable Precision Current Limit: ±10%
- Power Good Flag
- Input Filtering for High PSRR
- Low Noise: 25μVRMS (10Hz to 100kHz)
- Adjustable Output (VREF = VOUT(MIN) = 600mV)
- Output Tolerance: ±2% Over Line, Load and Temperature
- Stable with Low ESR, Ceramic Output Capacitors (3.3μF Minimum)
- Single Capacitor Soft-Starts Reference and Lowers Output Noise
- Current Limit Foldback Protection
- Shutdown Current: <3μA
- Reverse Battery and Thermal Limit Protection
- 12-Lead 4mm × 3mm DFN and 12-lead MSOP Packages
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LT3066 series are micropower, low noise, low dropout voltage (LDO) linear regulators that operate over a 1.8V to 45V input voltage range. The devices supply 500mA of output current with a typical dropout voltage of 300mV. A single external capacitor provides programmable low noise reference performance and output soft-start functionality.
A single external resistor programs the LT3066’s current limit, accurate to ±10% over a wide input voltage and temperature range. A PWRGD flag indicates output regulation.
The LT3066 features an NMOS pull-down that discharges the output if SHDN or IN is driven low.
The LT3066 optimizes stability and transient response with low ESR ceramic capacitors, requiring a minimum of 3.3μF. Internal protection circuitry includes current limiting with foldback, thermal limiting, reverse battery protection, reverse current protection and reverse output protection.
The LT3066 is available in fixed output voltages of 3.3V and 5V, and as an adjustable device with an output voltage range from 0.6V to 19V. The device is offered in the thermally-enhanced 12-lead 4mm × 3mm DFN and MSOP packages.
Applications
- Battery-Powered Systems
- Automotive Power Supplies
- Industrial Power Supplies
- Avionic Power Supplies
- Portable Instruments
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LT3066
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
Reliability Data
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
205.00K
Reliability Data
1
23.66 K
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Solutions Bulletin & Brochure 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
- LT3066EDE#PBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EDE#TRPBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EDE-3.3#PBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EDE-3.3#TRPBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EDE-5#PBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EDE-5#TRPBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EMSE#PBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EMSE#TRPBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EMSE-3.3#PBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EMSE-3.3#TRPBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EMSE-5#PBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066EMSE-5#TRPBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IDE#PBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IDE#TRPBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IDE-3.3#PBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IDE-3.3#TRPBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IDE-5#PBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IDE-5#TRPBF
- Pin/Package Drawing
-
12-Lead DFN (4mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IMSE#PBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IMSE#TRPBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IMSE-3.3#PBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IMSE-3.3#TRPBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IMSE-5#PBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LT3066IMSE-5#TRPBF
- Pin/Package Drawing
-
12-Lead MSOP w/ EP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 4, 2020
- 20_0129
Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC
LT3066EMSE#PBF
PRODUCTION
LT3066EMSE#TRPBF
PRODUCTION
LT3066EMSE-3.3#PBF
PRODUCTION
LT3066EMSE-3.3#TRPBF
PRODUCTION
LT3066EMSE-5#PBF
PRODUCTION
LT3066EMSE-5#TRPBF
PRODUCTION
LT3066IMSE#PBF
PRODUCTION
LT3066IMSE#TRPBF
PRODUCTION
LT3066IMSE-3.3#PBF
PRODUCTION
LT3066IMSE-3.3#TRPBF
PRODUCTION
LT3066IMSE-5#PBF
PRODUCTION
LT3066IMSE-5#TRPBF
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 4, 2020
- 20_0129
Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC
LT3066EMSE#PBF
PRODUCTION
LT3066EMSE#TRPBF
PRODUCTION
LT3066EMSE-3.3#PBF
PRODUCTION
LT3066EMSE-3.3#TRPBF
PRODUCTION
LT3066EMSE-5#PBF
PRODUCTION
LT3066EMSE-5#TRPBF
PRODUCTION
LT3066IMSE#PBF
PRODUCTION
LT3066IMSE#TRPBF
PRODUCTION
LT3066IMSE-3.3#PBF
PRODUCTION
LT3066IMSE-3.3#TRPBF
PRODUCTION
LT3066IMSE-5#PBF
PRODUCTION
LT3066IMSE-5#TRPBF
PRODUCTION
Software & Part Ecosystem
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Surge Stopper, Overvoltage, and Overcurrent Protection1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
High Voltage Surge Stopper with Current Limit |
|||
| Parts | Product Life Cycle | Description |
|---|---|---|
|
|
45V VIN, Micropower, Low Noise, 100mA LDO with Active Output Discharge |
|
|
RECOMMENDED FOR NEW DESIGNS |
45V VIN, Micropower, Low Noise, 200mA LDO with Active Output Discharge |
Evaluation Kits 1
DC2437A

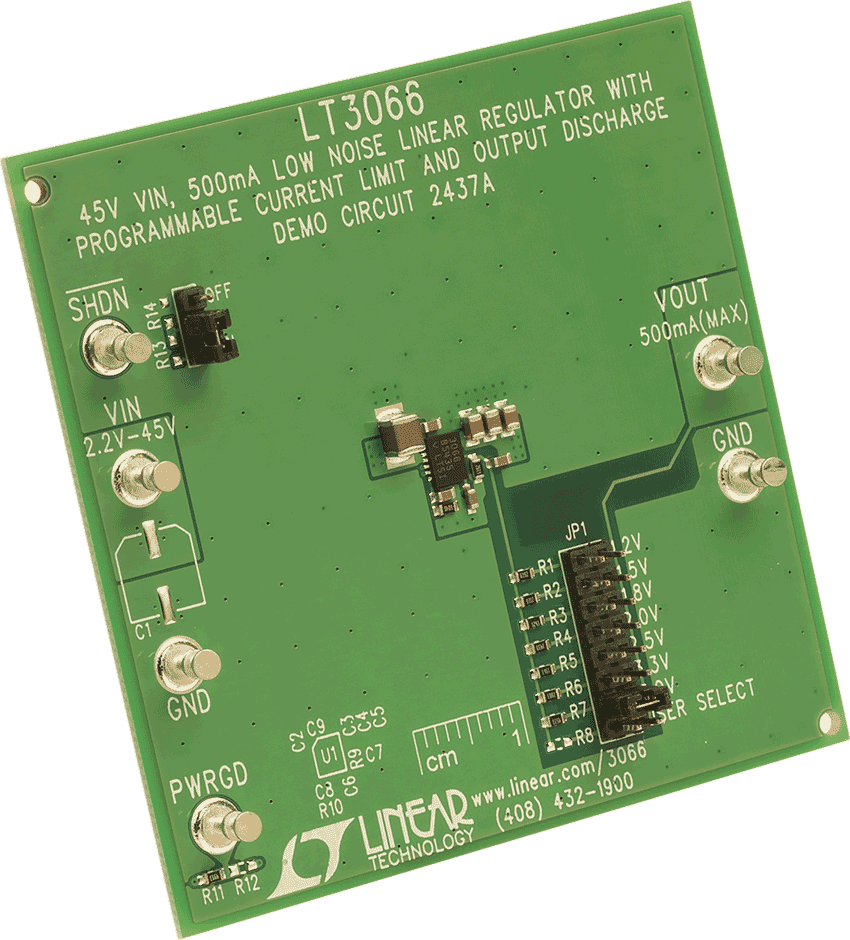

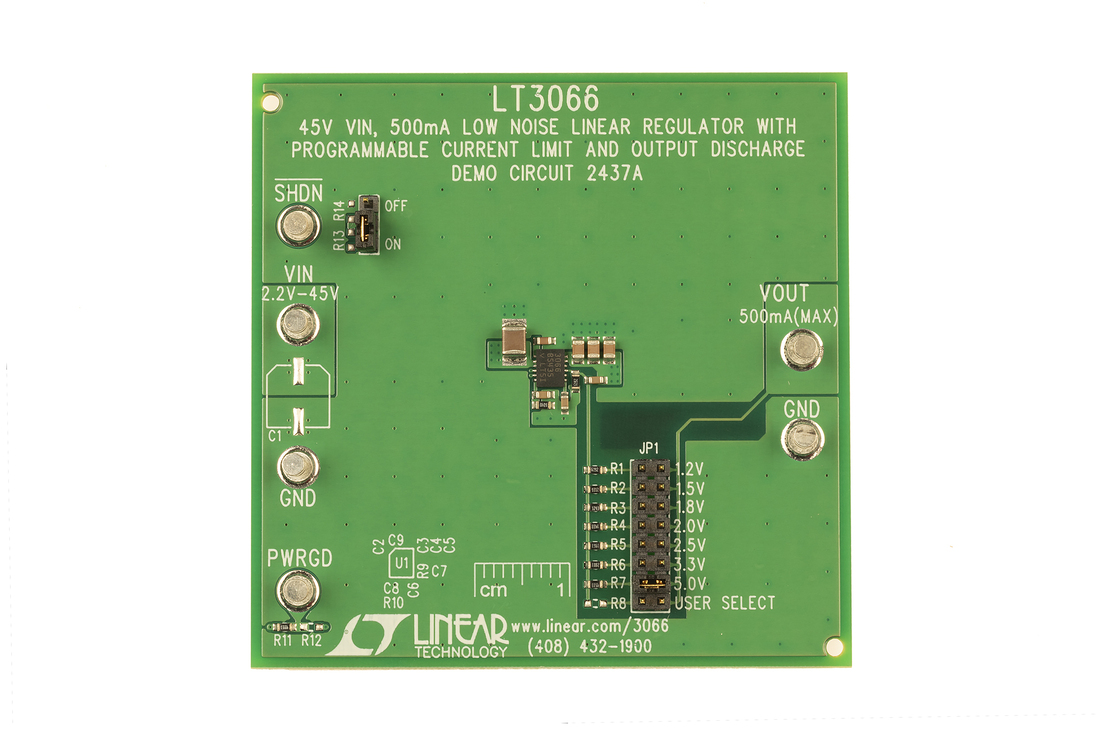

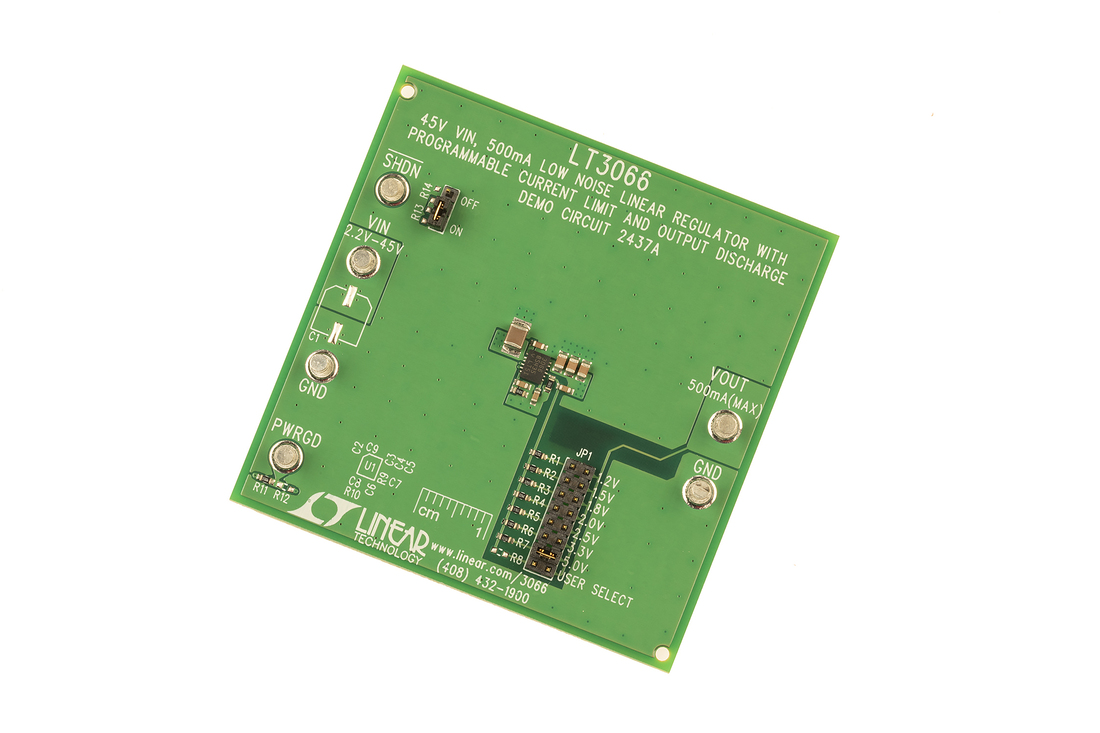

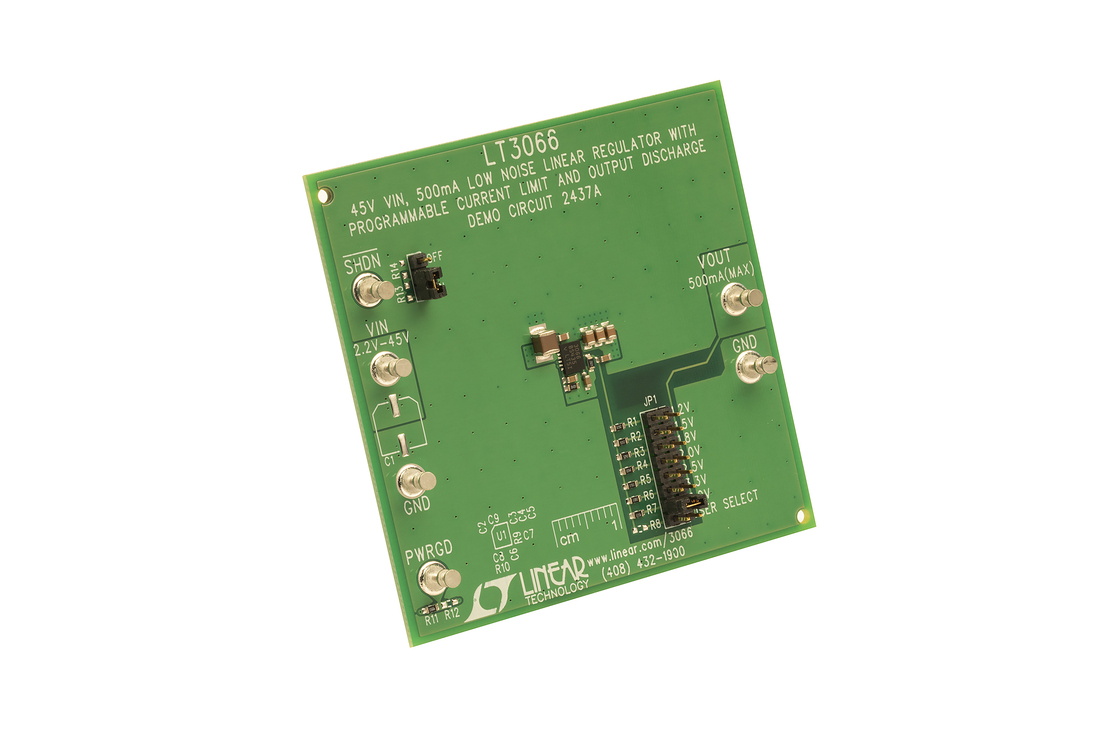

LT3066 Demo Board | Low Noise Linear Regulator, Active Output Discharge, 1.8V ≤ VIN ≤ 45V, VOUT = 1.2/1.5/1.8/2.0/2.5/3.3/5V @ 500mA
Product Detail

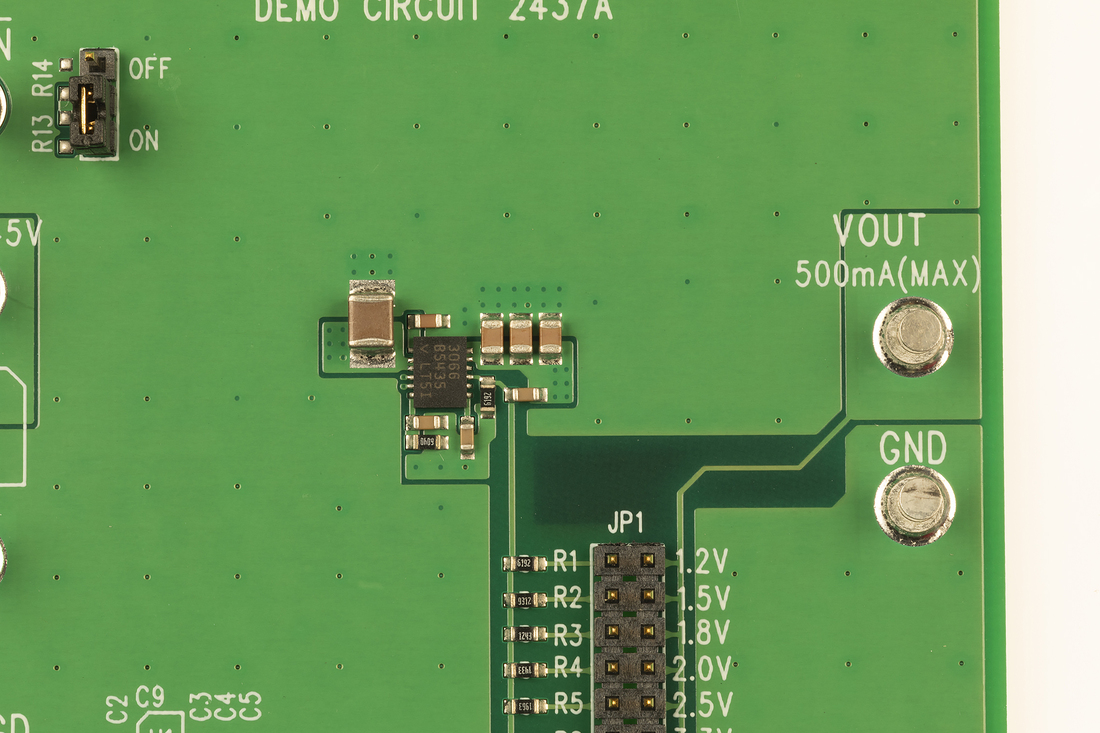

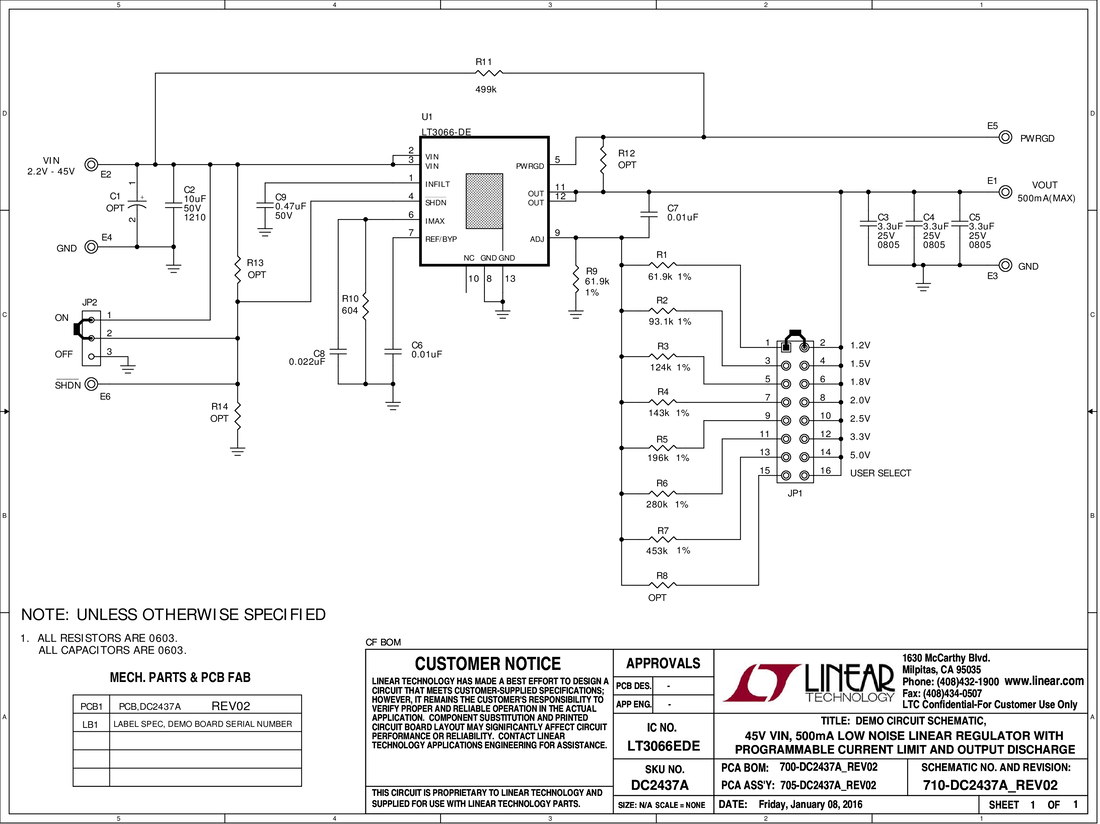

Demonstration circuit 2437A is an adjustable 500mA linear regulator featuring the LT3066. The LT3066 is a micropower, low noise and low dropout voltage linear regulator that operates over a 1.8V to 45V input voltage range. The device supplies 500mA of output current with a typical dropout voltage of 300mV. Jumper-selectable output voltages include 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 3.3V and 5V. A 10nF bypass capacitor reduces output noise to 25μVRMS across a 10Hz to 100kHz bandwidth and soft-starts the reference. The LT3066’s ±45V input voltage rating combined with its precision current limit make the IC an ideal choice for robust, high reliability applications. LT3066 features an NMOS pull-down that discharges the output if SHDN or IN is driven low.
