MIKROE-5468, Click Board, Boost 8 Click2/24/2023
Features and Benefits
- Generates Well-Regulated Positive and Negative Outputs
- Low Quiescent Current:
- 20µA in Active Mode (per Converter)
- <1µA in Shutdown Mode
- Operates with VIN as Low as 1.2V
- Low VCESAT Switch: 250mV at 300mA
- Uses Small Surface Mount Components
- High Output Voltage: Up to ±34V

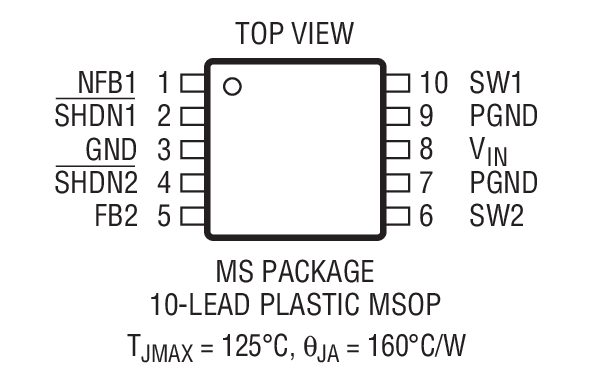

- Tiny 10-Pin MSOP Package
The LT1945 is a dual micropower DC/DC converter in a 10-pin MSOP package. Each converter is designed with a 350mA current limit and an input voltage range of 1.2V to 15V, making the LT1945 ideal for a wide variety of applications. Both converters feature a quiescent current of only 20µA at no load, which further reduces to 0.5µA in shutdown. A current limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current. The 36V switch allows high voltage outputs up to ±34V to be easily generated without the use of costly transformers. The LT1945’s low off-time of 400ns permits the use of tiny, low profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.
- Small TFT LCD Panels
- Handheld Computers
- Battery Backup
- Digital Cameras
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
R365 Reliability Data3/23/2018
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT1945EMS#PBF||Material Declaration||Reliability Data||10-Lead MSOP|
|LT1945EMS#TRPBF||Material Declaration||Reliability Data||10-Lead MSOP|
|LT1945IMS#PBF||Material Declaration||Reliability Data||10-Lead MSOP|
|LT1945IMS#TRPBF||Material Declaration||Reliability Data||10-Lead MSOP|
|Wafer Fabrication Data||R365 Reliability Data|
