LT1944

PRODUCTION

LT1944

Dual Micropower Step-Up DC/DC Converter

PRODUCTION

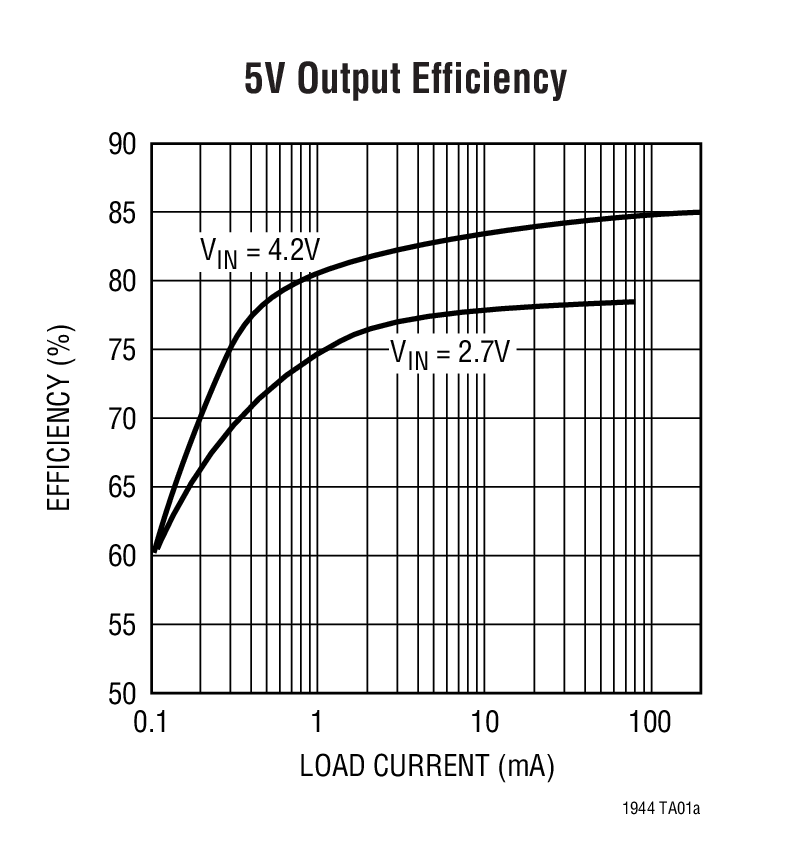

Dual Output (5V, 30V) Boost Converter slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $2.43

Features

Low Quiescent Current:
- 20µA in Active Mode
- <1µA in Shutdown Mode
Operates with V_IN as Low as 1.2V
Low V_CESAT Switch: 250mV at 300mA

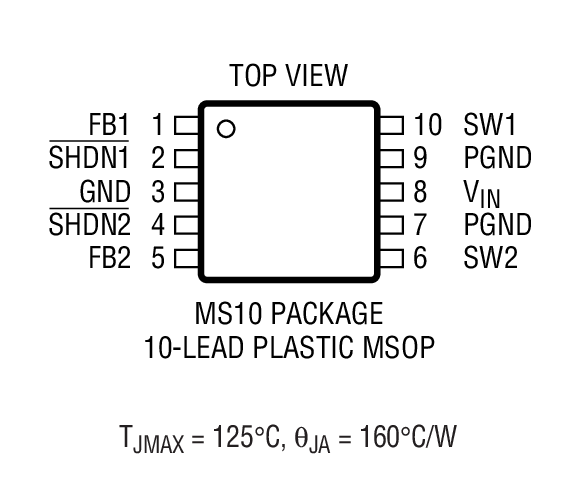

Tiny 10-Pin MSOP Package
Uses Small Surface Mount Components
High Output Voltage: Up to 34V

Additional Details

The LT1944 is a dual micropower step-up DC/DC converter in a 10-pin MSOP package. Each converter is designed with a 350mA current limit and an input voltage range of 1.2V to 15V, making the LT1944 ideal for a wide variety of applications. Both converters feature a quiescent current of only 20µA at no load, which further reduces to 0.5µA in shutdown. A current limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current. The 36V switch allows high voltage outputs up to 34V to be easily generated in a simple boost topology without the use of costlt transformers. The LT1944's low off-time of 400ns permits the use of tiny, low profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.


	Switch Current
LT1944	350mA, 350mA
LT1944-1	100mA, 175mA

Applications

LCD Bias
Handheld Computers
Battery Backup
Digital Cameras
