Overview

Features and Benefits

  • Triple Output TFT Supply with Built-In Power Sequencing
  • Integrated White LED Backlight Driver
  • Integrated Schottky Diodes
  • Active Ballast Circuitry Ensures Precise Current Matching in White LEDs
  • Low Noise 1MHz Fixed Frequency Operation
  • 2.6V to 16V Input Voltage Range
  • Soft-Start Limits Inrush Current
  • TFT Supply Output Voltages Independently Set (Not Charge Pump Derived)
  • Power Good and Output Disconnect for TFT Supply
  • Built-In LED Dimming Capability
  • Open LED Protection for LED Driver
  • 24-Lead QFN Package (4mm × 4mm)

Product Details

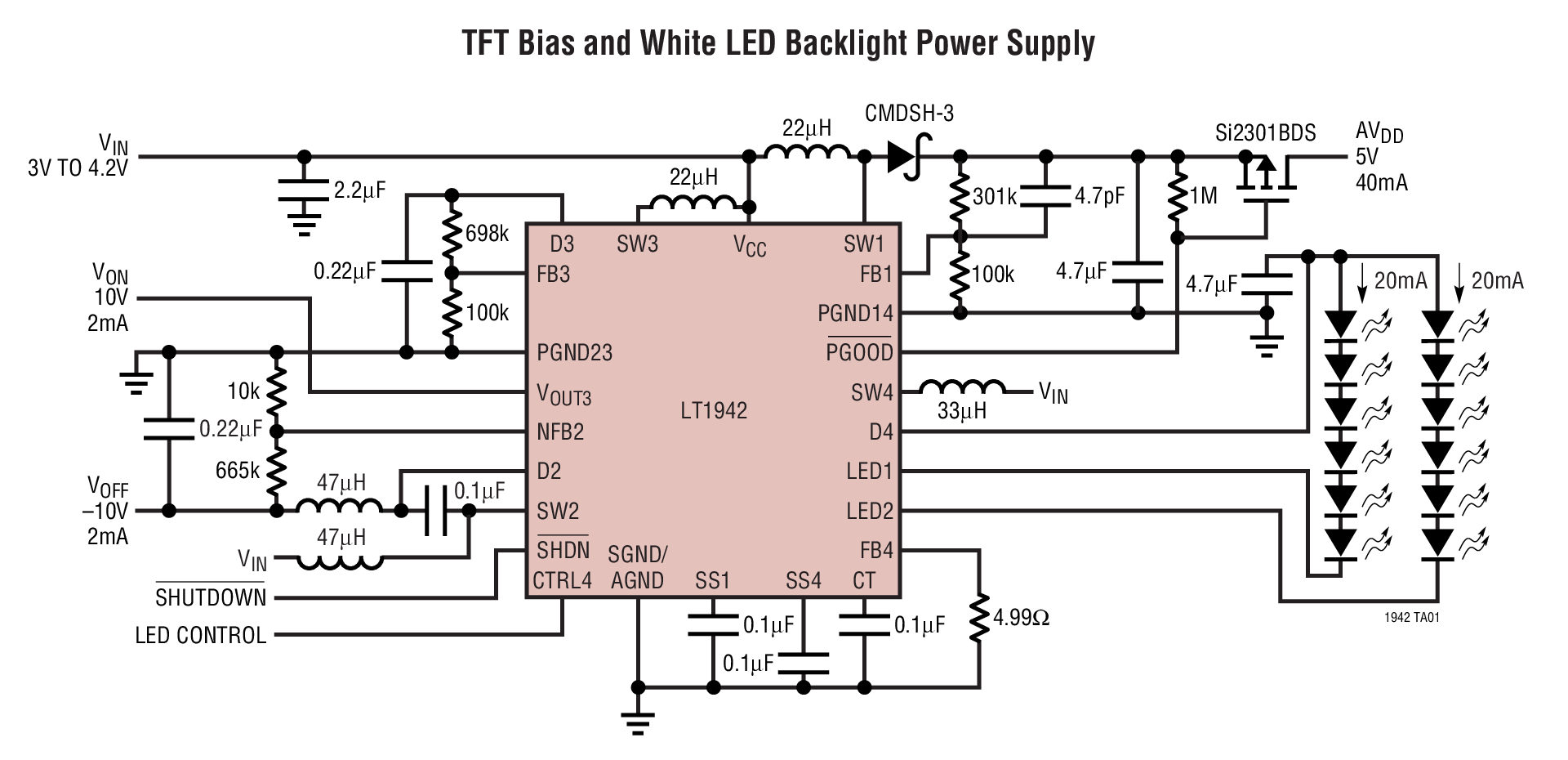

The LT1942 is a highly integrated quad switching regulator designed to provide all necessary power supply functions for TFT displays, including the white LED backlight driver. The TFT supply incorporates two boost and one inverting DC/DC converters. The TFT supply output voltages are independently set, unlike charge pump solutions which have many limitations. Power sequencing for the TFT supply is built into the part and is user programmable.

The LED driver is a boost DC/DC converter that can be independently controlled. The LED driver has built-in dimming control for precise control of LED current. An 8:1 dimming range is achieved by adjusting the CTRL4 voltage. The user can elect to drive a single string or two strings of LEDs. An LED ballast circuit is included to precisely match the LED currents if two strings of LEDs are used. Soft-start is built into the LED driver as well as the primary TFT supply.

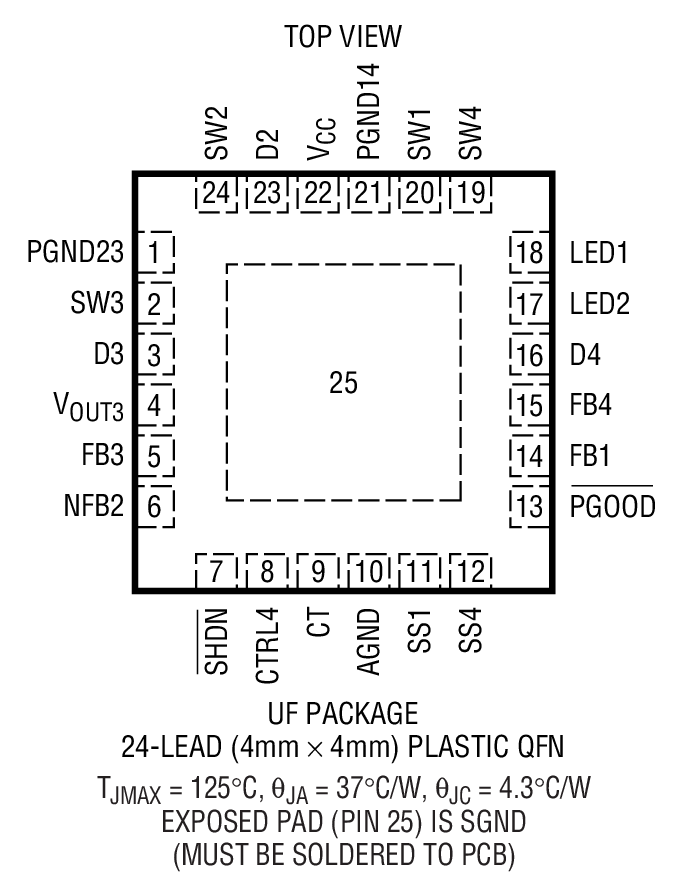

The LT1942 is available in a low profile (0.75mm) 24-lead QFN (4mm × 4mm) package.

Applications

  • Poly-Silicon TFT Displays
  • Amorphous Silicon TFT Displays

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

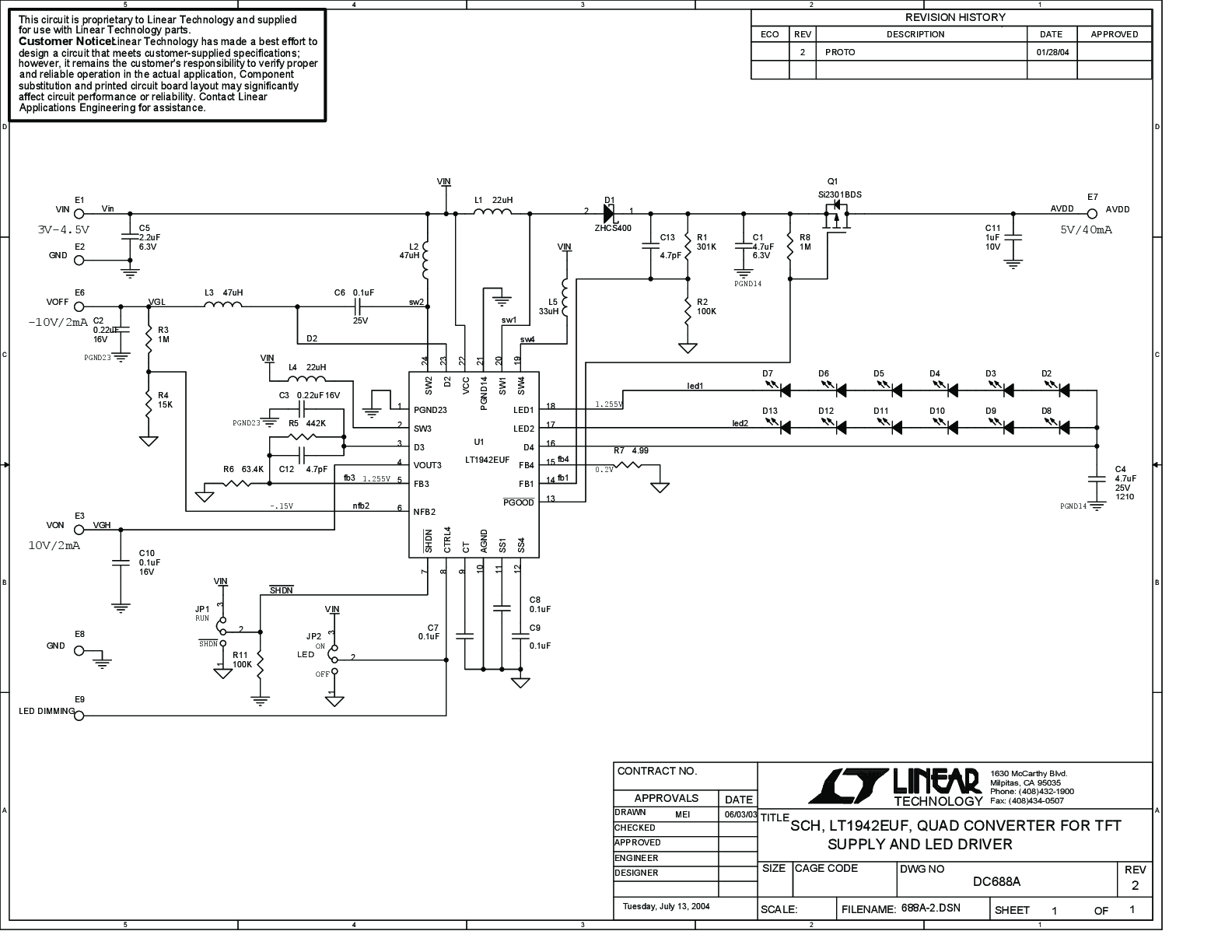

Evaluation Kits (1)

Documentation & Resources

  • View All (4)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Technical Articles (1)
    • Document Type

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT1942EUF#PBF Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
    LT1942EUF#TRPBF Material Declaration Reliability Data 24-Lead QFN (4mm x 4mm x 0.75mm w/ EP)
    Wafer Fabrication Data R365 Reliability Data
