Overview

Features and Benefits

  • Greatly Reduced Conducted and Radiated EMI
  • Low Switching Harmonic Content
  • Independent Control of Output Switch Voltage and Current Slew Rates
  • Greatly Reduced Need for External Filters
  • Single N-Channel MOSFET Driver
  • 20kHz to 250kHz Oscillator Frequency
  • Easily Synchronized to External Clock
  • Regulates Positive and Negative Voltages
  • Easier Layout Than with Conventional Switchers

Product Details

The LT1738 is a switching regulator controller designed to lower conducted and radiated electromagnetic interference (EMI). Ultralow noise and EMI are achieved by controlling the voltage and current slew rates of an external N-channel MOSFET switch. Current and voltage slew rates can be independently set to optimize harmonic content of the switching waveforms vs efficiency. The LT1738 can reduce high frequency harmonic power by as much as 40dB with only minor losses in efficiency.

The LT1738 utilizes a current mode architecture optimized for single switch topologies such as boost, flyback and Cuk. The IC includes gate drive and all necessary oscillator, control and protection circuitry. Unique error amp circuitry can regulate both positive and negative voltages. The internal oscillator may be synchronized to an external clock for more accurate placement of switching harmonics.

Protection features include gate drive lockout for low VIN, soft-start, output current limit, short-circuit current limit-ing, gate drive overvoltage clamp and input supply undervoltage lockout.

Applications

  • Power Supplies for Noise Sensitive Communication Equipment
  • EMI Compliant Offline Power Supplies
  • Precision Instrumentation Systems
  • Isolated Supplies for Industrial Automation
  • Medical Instruments
  • Data Acquisition Systems

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

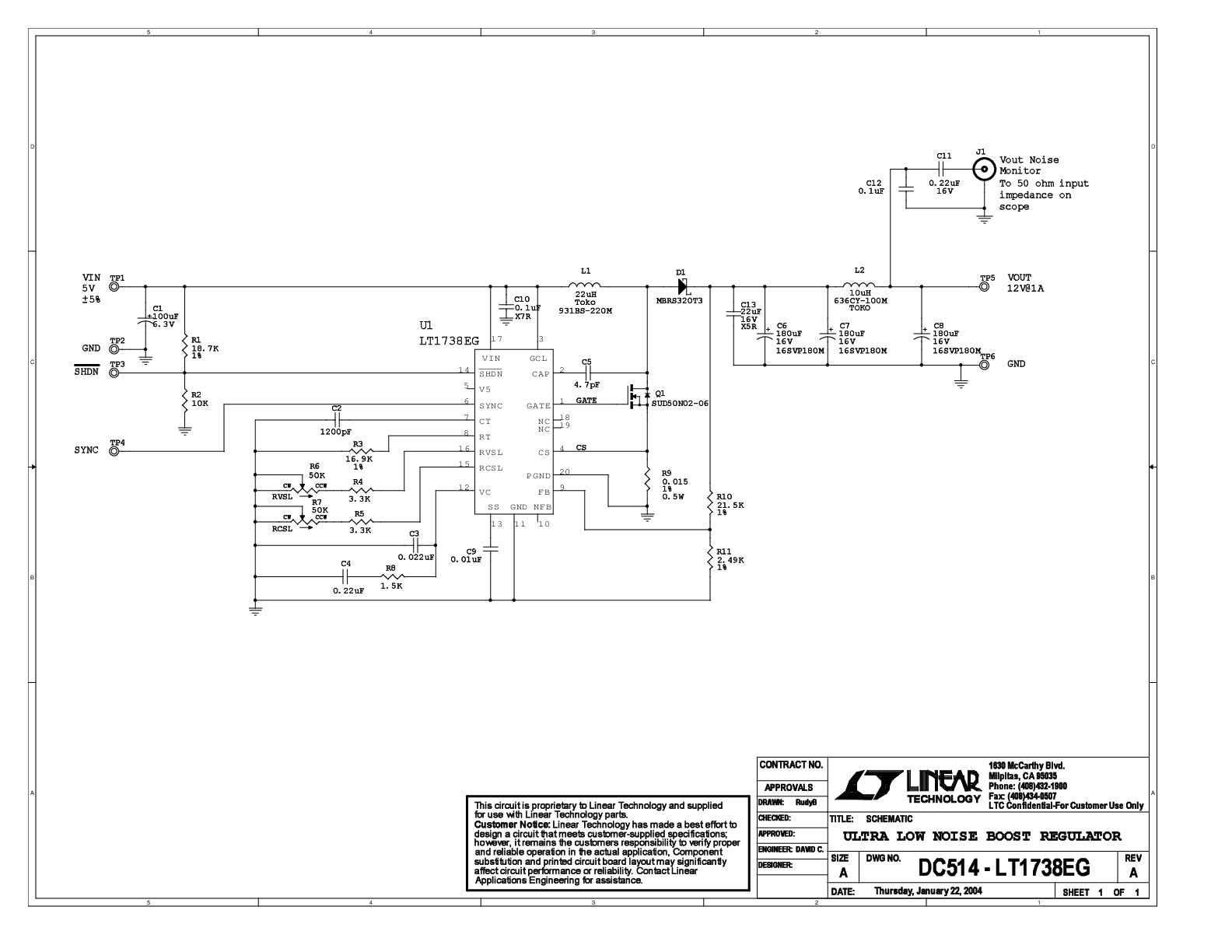

Evaluation Kits (1)

Documentation & Resources

  • View All (4)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Technical Articles (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LT1738

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT1738EG#PBF Material Declaration Reliability Data 20-Lead SSOP
    LT1738EG#TRPBF Material Declaration Reliability Data 20-Lead SSOP
    LT1738IG#PBF Material Declaration Reliability Data 20-Lead SSOP
    LT1738IG#TRPBF Material Declaration Reliability Data 20-Lead SSOP
    Wafer Fabrication Data R303 Reliability Data

    PCN-PDN Information

    Select a model from the dropdown below to subscribe to PCN/PDN notifications and view past notifications as well.

    Select Model for PCN Information
    • LT1738EG#PBF Production
    • LT1738EG#TRPBF Production
    • LT1738IG#PBF Production
    • LT1738IG#TRPBF Production
