LT1634

PRODUCTION

Micropower Precision Shunt Voltage Reference

Data Sheet Product Selection Table

Part Models: 45
1ku List Price: Starting From $3.05

Viewing:

Overview

Initial Voltage Accuracy: 0.05%
Low Operating Current: 10μA

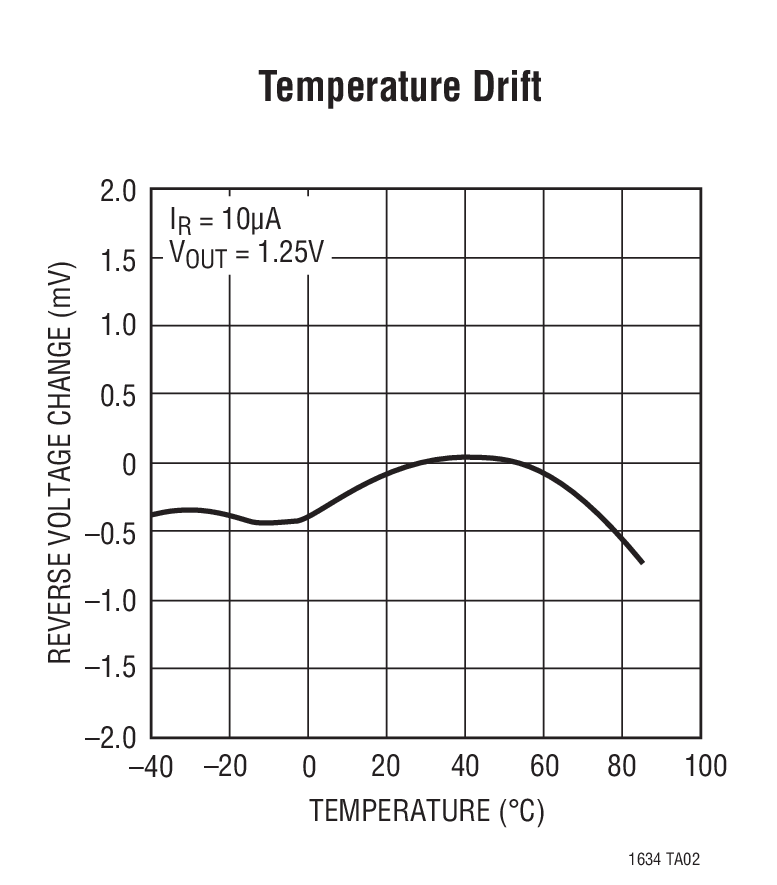

Low Drift: 10ppm/°C Max
Less Than 1Ω Dynamic Impedance
Both Commercial and Industrial Temperature Range Parts Are Available

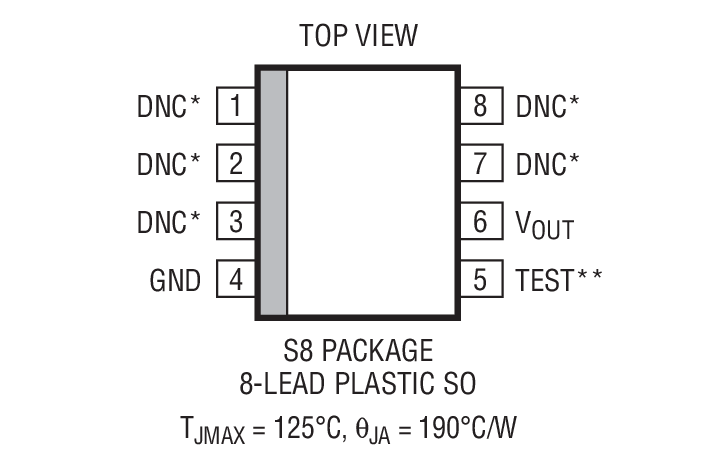

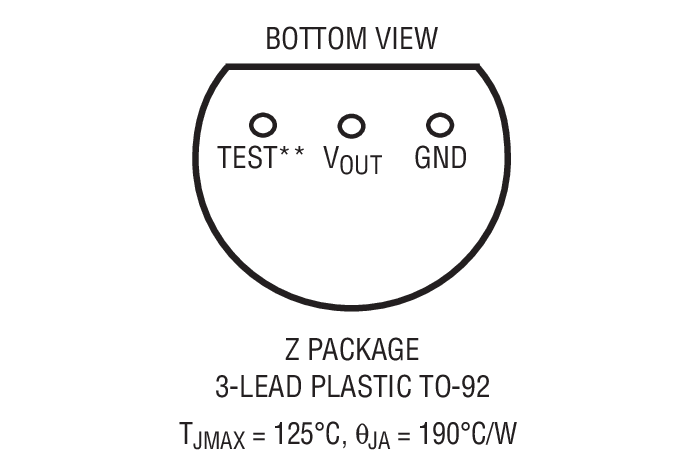

Available in 1.25V, 2.5V, 4.096V and 5V in SO-8 and TO-92 Packages

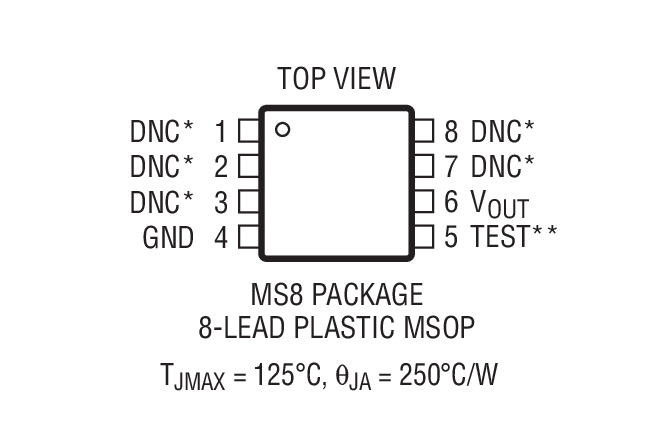

1.25V and 2.5V Available in MSOP Package

The LT1634 is a micropower, precision, shunt voltage reference. The bandgap reference uses trimmed precision thin film resistors to achieve 0.05% initial voltage accuracy.Improved curvature correction technique guarantees 10ppm/°C maximum temperature drift. Advances in design, processing and packaging techniques guarantee 10µA operation and low temperature cycling hysteresis.The LT1634 does not require an output compensation capacitor, but is stable with capacitive loads. Low dynamic impedance makes the LT1634 reference easy to use from unregulated supplies.

The LT1634 reference can be used as a high performance upgrade to the LM185/LM385, LT1004 and LT1034 where lower power and guaranteed temperature drift is required.

Applications

Portable Meters
Precision Regulators
A/D and D/A Converters
Calibrators

Part Models: 45
1ku List Price: Starting From $3.05

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1634-2.5DICE	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634ACS8-1.25#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634ACS8-1.25#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634ACS8-2.5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634ACS8-2.5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634ACS8-4.096#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634ACS8-4.096#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634ACS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634ACS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634AIS8-1.25#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634AIS8-1.25#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634AIS8-2.5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634AIS8-2.5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634AIS8-4.096#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634AIS8-4.096#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634AIS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634AIS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCMS8-1.25#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCMS8-1.25#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCMS8-2.5#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCMS8-2.5#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCS8-1.25#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCS8-1.25#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCS8-2.5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCS8-2.5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCS8-4.096#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCS8-4.096#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BCS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BIS8-1.25#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BIS8-1.25#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BIS8-2.5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BIS8-2.5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BIS8-4.096#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BIS8-4.096#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BIS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634BIS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634CCZ-1.25#PBF	3-Lead TO-92	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634CCZ-1.25#TRPBF	3-Lead TO-92	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634CCZ-2.5#PBF	3-Lead TO-92	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634CCZ-2.5#TRPBF	3-Lead TO-92	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634CCZ-4.096#PBF	3-Lead TO-92	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634CCZ-4.096#TRPBF	3-Lead TO-92	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634CCZ-5#PBF	3-Lead TO-92	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1634CCZ-5#TRPBF	3-Lead TO-92	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 8, 2024 - 24_0236 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0236_Form Material_Report Marking Comparison Delta Qualification Matrix
LT1634ACS8-1.25#PBF	PRODUCTION
LT1634ACS8-1.25#TRPBF	PRODUCTION
LT1634ACS8-2.5#PBF	PRODUCTION
LT1634ACS8-2.5#TRPBF	PRODUCTION
LT1634ACS8-4.096#PBF	PRODUCTION
LT1634ACS8-4.096#TRPBF	PRODUCTION
LT1634ACS8-5#PBF	PRODUCTION
LT1634ACS8-5#TRPBF	PRODUCTION
LT1634AIS8-1.25#PBF	PRODUCTION
LT1634AIS8-1.25#TRPBF	PRODUCTION
LT1634AIS8-2.5#PBF	PRODUCTION
LT1634AIS8-2.5#TRPBF	PRODUCTION
LT1634AIS8-4.096#PBF	PRODUCTION
LT1634AIS8-4.096#TRPBF	PRODUCTION
LT1634AIS8-5#PBF	PRODUCTION
LT1634AIS8-5#TRPBF	PRODUCTION
LT1634BCS8-1.25#PBF	PRODUCTION
LT1634BCS8-1.25#TRPBF	PRODUCTION
LT1634BCS8-2.5#PBF	PRODUCTION
LT1634BCS8-2.5#TRPBF	PRODUCTION
LT1634BCS8-4.096#PBF	PRODUCTION
LT1634BCS8-4.096#TRPBF	PRODUCTION
LT1634BCS8-5#PBF	PRODUCTION
LT1634BCS8-5#TRPBF	PRODUCTION
LT1634BIS8-1.25#PBF	PRODUCTION
LT1634BIS8-1.25#TRPBF	PRODUCTION
LT1634BIS8-2.5#PBF	PRODUCTION
LT1634BIS8-2.5#TRPBF	PRODUCTION
LT1634BIS8-4.096#PBF	PRODUCTION
LT1634BIS8-4.096#TRPBF	PRODUCTION
LT1634BIS8-5#PBF	PRODUCTION
LT1634BIS8-5#TRPBF	PRODUCTION
Jun 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1634ACS8-1.25#PBF	PRODUCTION
LT1634ACS8-1.25#TRPBF	PRODUCTION
LT1634ACS8-2.5#PBF	PRODUCTION
LT1634ACS8-2.5#TRPBF	PRODUCTION
LT1634ACS8-4.096#PBF	PRODUCTION
LT1634ACS8-4.096#TRPBF	PRODUCTION
LT1634ACS8-5#PBF	PRODUCTION
LT1634ACS8-5#TRPBF	PRODUCTION
LT1634AIS8-1.25#PBF	PRODUCTION
LT1634AIS8-1.25#TRPBF	PRODUCTION
LT1634AIS8-2.5#PBF	PRODUCTION
LT1634AIS8-2.5#TRPBF	PRODUCTION
LT1634AIS8-4.096#PBF	PRODUCTION
LT1634AIS8-4.096#TRPBF	PRODUCTION
LT1634AIS8-5#PBF	PRODUCTION
LT1634AIS8-5#TRPBF	PRODUCTION
LT1634BCS8-1.25#PBF	PRODUCTION
LT1634BCS8-1.25#TRPBF	PRODUCTION
LT1634BCS8-2.5#PBF	PRODUCTION
LT1634BCS8-2.5#TRPBF	PRODUCTION
LT1634BCS8-4.096#PBF	PRODUCTION
LT1634BCS8-4.096#TRPBF	PRODUCTION
LT1634BCS8-5#PBF	PRODUCTION
LT1634BCS8-5#TRPBF	PRODUCTION
LT1634BIS8-1.25#PBF	PRODUCTION
LT1634BIS8-1.25#TRPBF	PRODUCTION
LT1634BIS8-2.5#PBF	PRODUCTION
LT1634BIS8-2.5#TRPBF	PRODUCTION
LT1634BIS8-4.096#PBF	PRODUCTION
LT1634BIS8-4.096#TRPBF	PRODUCTION
LT1634BIS8-5#PBF	PRODUCTION
LT1634BIS8-5#TRPBF	PRODUCTION
Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1634BCMS8-1.25#PBF	PRODUCTION
LT1634BCMS8-1.25#TRPBF	PRODUCTION
LT1634BCMS8-2.5#PBF	PRODUCTION
LT1634BCMS8-2.5#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LT1634BCMS8-1.25#PBF	PRODUCTION
LT1634BCMS8-1.25#TRPBF	PRODUCTION
LT1634BCMS8-2.5#PBF	PRODUCTION
LT1634BCMS8-2.5#TRPBF	PRODUCTION
Feb 20, 2022 - 22_0014 Final Packaging Changes for TO-92, TO-5 and TO-46
		PCN22_0014_Form Material_Report Other
LT1634CCZ-1.25#PBF	PRODUCTION
LT1634CCZ-2.5#PBF	PRODUCTION
LT1634CCZ-4.096#PBF	PRODUCTION
LT1634CCZ-5#PBF	PRODUCTION
Mar 6, 2022 - 22_0014 Final Packaging Changes for TO-92, TO-5 and TO-46
		PCN22_0014_Form Material_Report Other
LT1634CCZ-1.25#TRPBF	PRODUCTION
LT1634CCZ-2.5#TRPBF	PRODUCTION
LT1634CCZ-4.096#TRPBF	PRODUCTION
LT1634CCZ-5#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LT1634-1.25
LT1634-2.5
LT1634-4.096
LT1634-5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
