LT1612

PRODUCTION

Synchronous, Step-Down 800kHz PWM DC/DC Converter

Part Models: 4
1ku List Price: Starting From $2.48

Viewing:

Overview

Operates from Input Voltage As Low As 2V
Internal 0.7A Synchronous Switches
Uses Ceramic Input and Output Capacitors
620mV Reference Voltage
800kHz Fixed Frequency Switching
Programmable Burst Mode Operation
Low Quiescent Current: 160µA

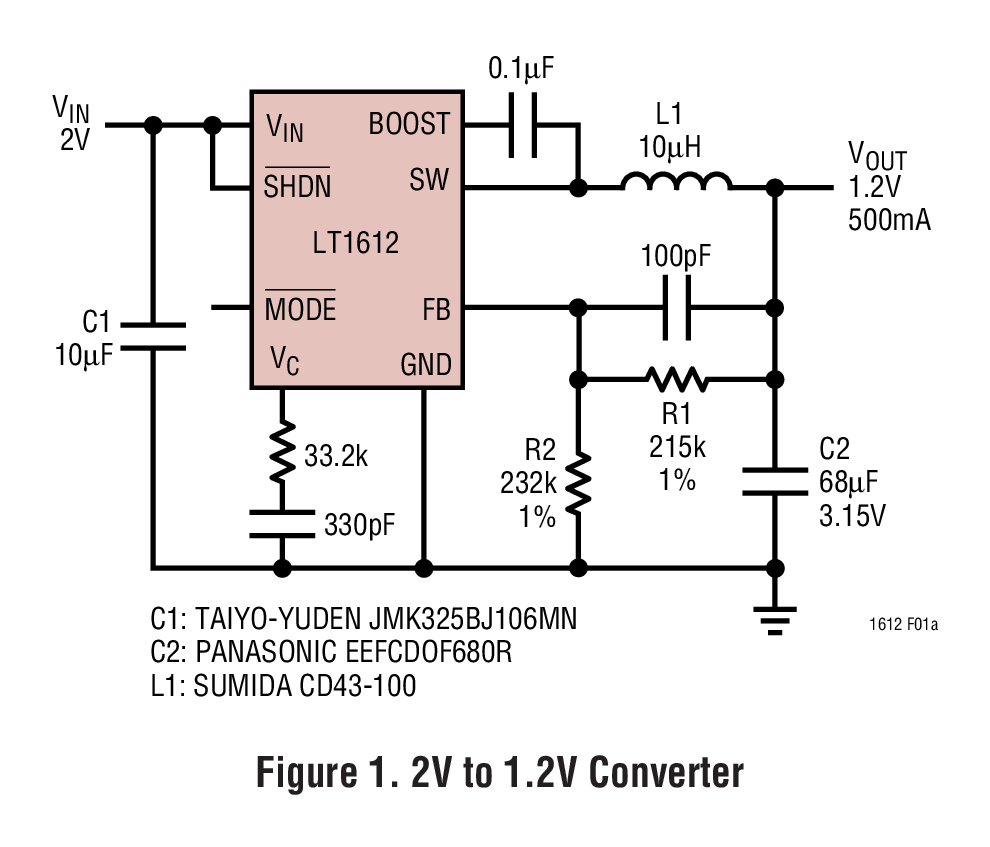

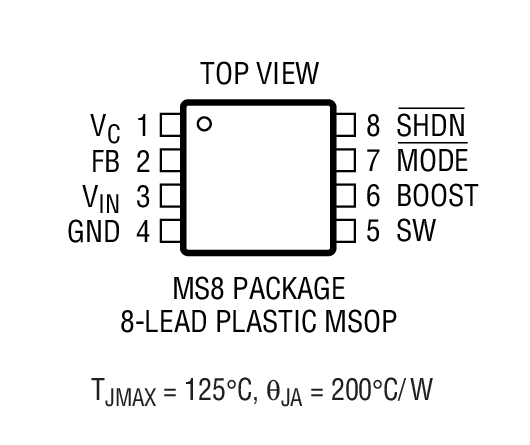

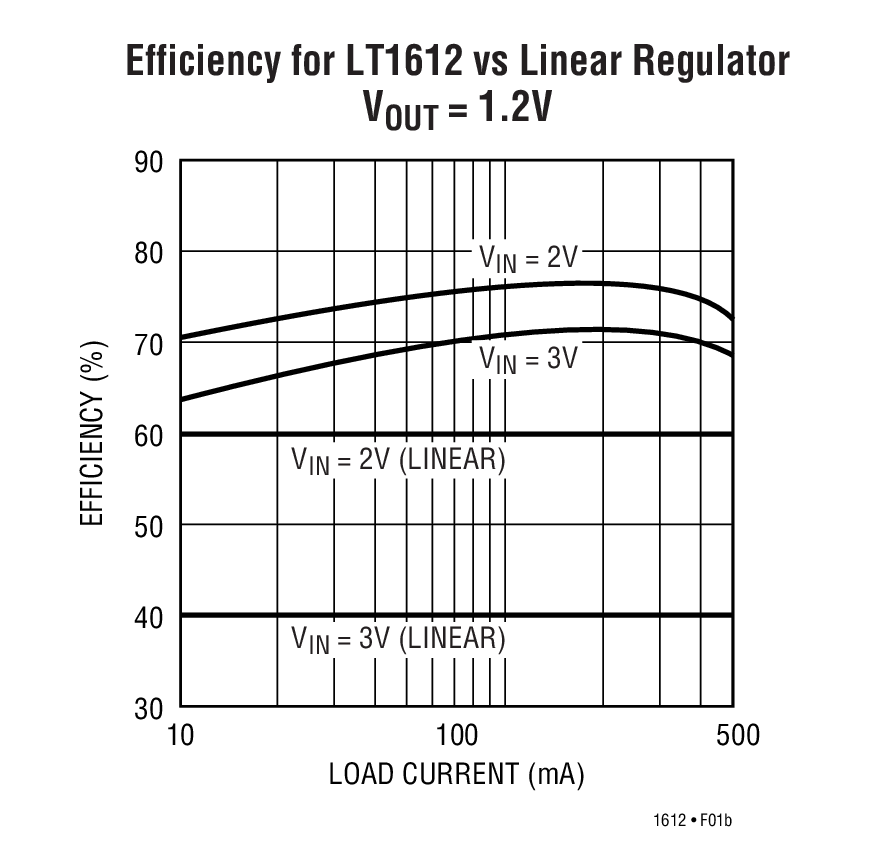

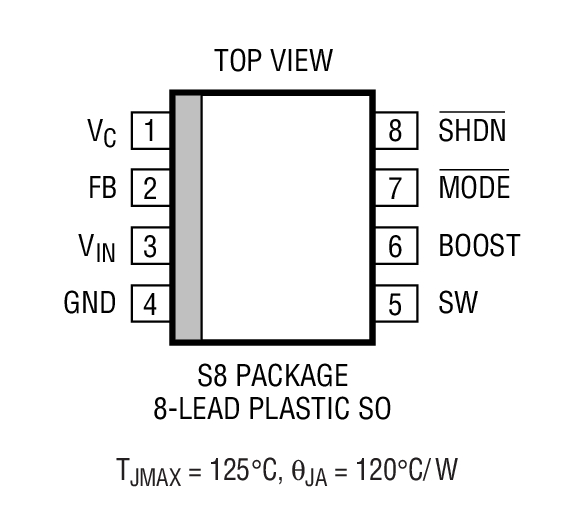

8-Lead MSOP or SO Package

The LT1612 is an 800kHz, synchronous step-down DC/DC converter that operates from an input voltage as low as 2V. Internal 0.45Ohms switches deliver output currents up to 500mA, and the 800kHz switching frequency allows the use of small, low value ceramic input and output capacitors. Input voltage ranges from 5.5V down to 2V and output voltage can be set as low as the 620mV reference. The device features Burst Mode operation, keeping efficiency high at light loads. Burst Mode operation can be defeated by pulling the MODE pin high, enabling constant switching throughout the load range for low noise.

No-load quiescent current is 160µA and shutdown current is less than 1µA. The device is available in 8-lead SO and MSOP packages.

Applications

Portable Devices
Lithium-Ion Step-Down Converters
5V to 3.3V Conversion
2-Cell Alkaline Step-Down Converters

Part Models: 4
1ku List Price: Starting From $2.48

Documentation

Data Sheet 1

LT1612: Synchronous, Step-Down 800kHz PWM DC/DC Converter Data Sheet 08/22/2007

Reliability Data 1

R389 Reliability Data 03/21/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1612EMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1612EMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1612ES8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1612ES8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)
		PCN24_0003_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1612EMS8#PBF	PRODUCTION
LT1612EMS8#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LT1612EMS8#PBF	PRODUCTION
LT1612EMS8#TRPBF	PRODUCTION
Oct 8, 2024 - 24_0236 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0236_Form Material_Report Marking Comparison Delta Qualification Matrix
LT1612ES8#PBF	PRODUCTION
LT1612ES8#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0254 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)
		PCN22_0254_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1612ES8#PBF	PRODUCTION
LT1612ES8#TRPBF	PRODUCTION
Jun 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1612ES8#PBF	PRODUCTION
LT1612ES8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LT1612

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
