LT1309

Obsolete

LT1309

500kHz Micropower DC/DC Converter for Flash Memory

Obsolete

12V, 60mA Flash Memory Programming Supply slide

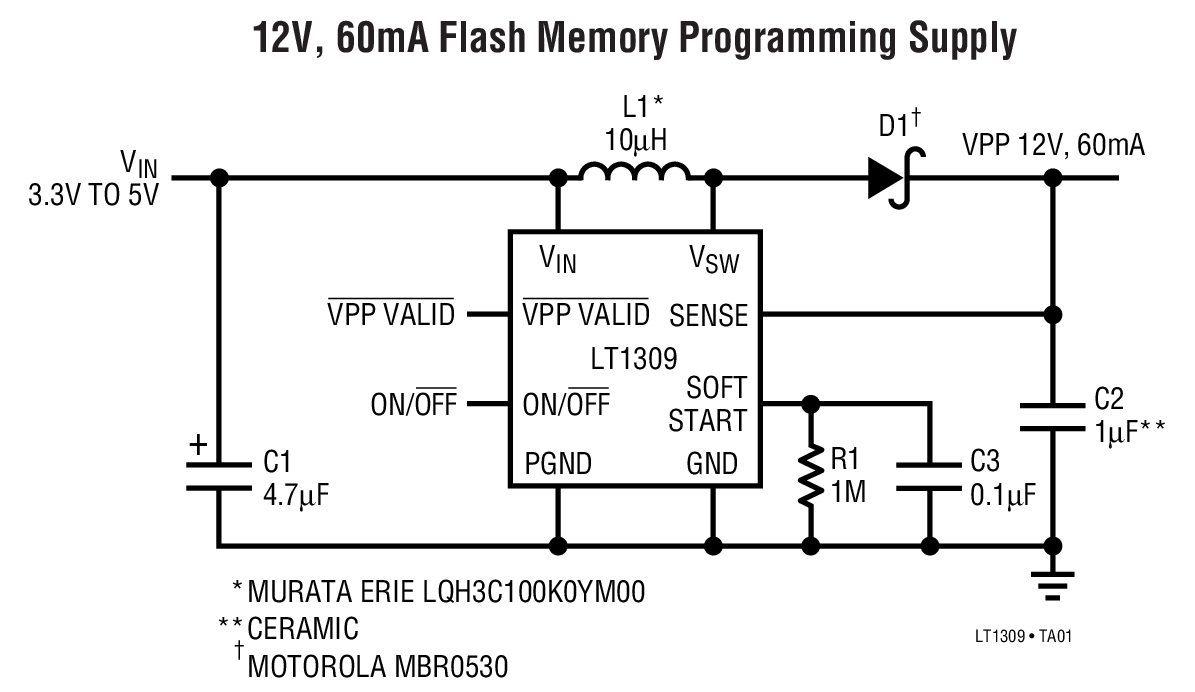

12V, 60mA Flash Memory Programming Supply

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Features

OBSOLETE: For Information Purposes Only. Contact Analog Devices for Potential Replacement.
60mA Output Current at 12V from 3V or 5V Supply
Shutdown to 9µA
VPP VALID Comparator

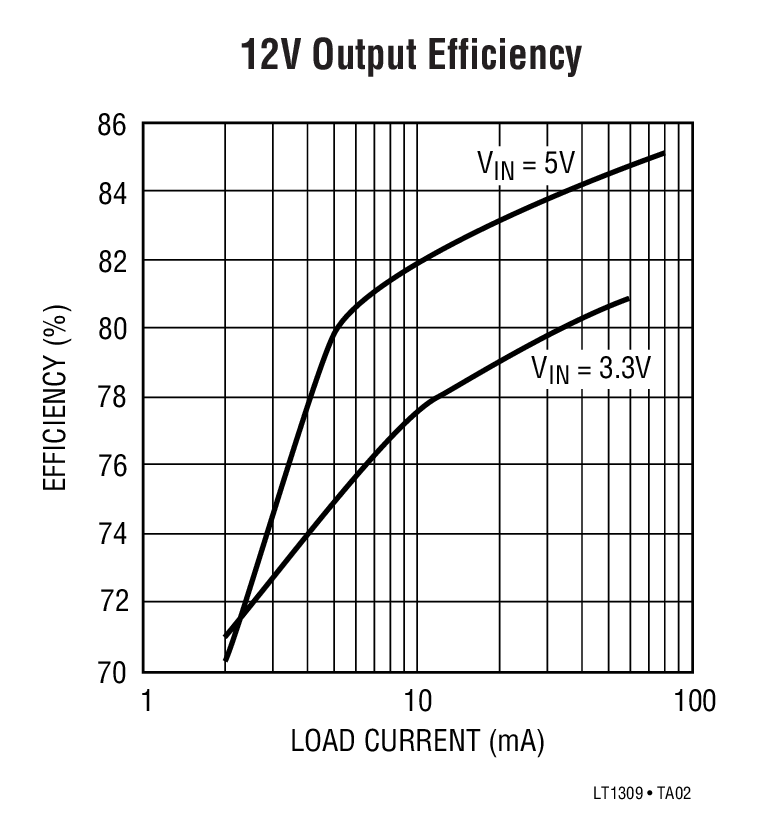

Up to 85% Efficiency
Switching Frequency: 500kHz (Typical)
Quiescent Current: 650µA
Low V_CESAT Switch: 300mV at 0.5A (Typical)
Soft Start Reduces Supply Current Transients
Uses Low Value, Small Size, Surface Mount Inductors

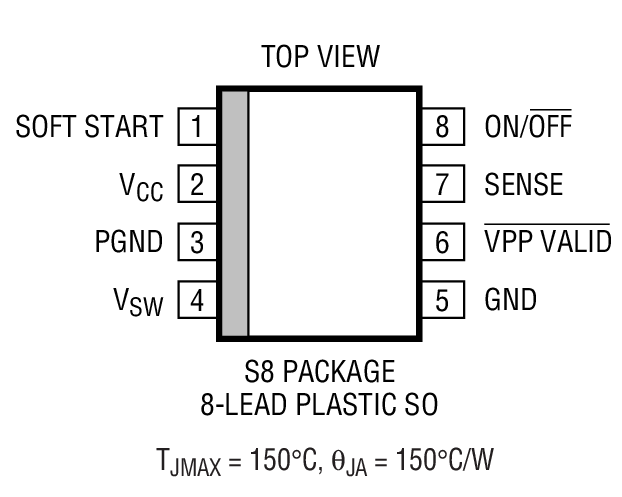

Available in 8-Lead SO Package

Additional Details

OBSOLETE: For Information Purposes Only. Contact Analog Devices for Potential Replacement.

The LT1309 is a 500kHz micropower DC/DC converter for Flash Memory. The regulator features Burst Mode^™ operation with a 0.5A, 300mV switch, enabling 85% efficiency at the fixed 12V output. High frequency operation permits the use of small value, and therefore small size, surface mount inductors and capacitors. The LT1309 comes in an 8-lead SO package allowing extremely compact PC board layouts. These features make the device attractive for PCMCIA cards, cellular phones and other applications where PC board space is limited.

Quiescent current is 650µA decreasing to 9µA when the part shuts down. The device includes a soft start feature which limits supply current transients during turn-on.

The LT1309 contains a VPP VALID comparator with a logic output that goes low when the output voltage is ready to program 12V Flash Memory. This comparator simplifies the interface to external control logic.

Applications

Flash Memory VPP Generators
Type II and III PCMCIA Card DC/DC Converters
3V to 12V, 5V to 12V Converters
Portable Computers and Instruments
Cellular Telephones
DC/DC Converter Module Replacements
