LT1308B
LT1308A
LT1308B
Single Cell High Current Micropower 600kHz Boost DC/DC Converter
Show More
Not the part you were looking for?
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features

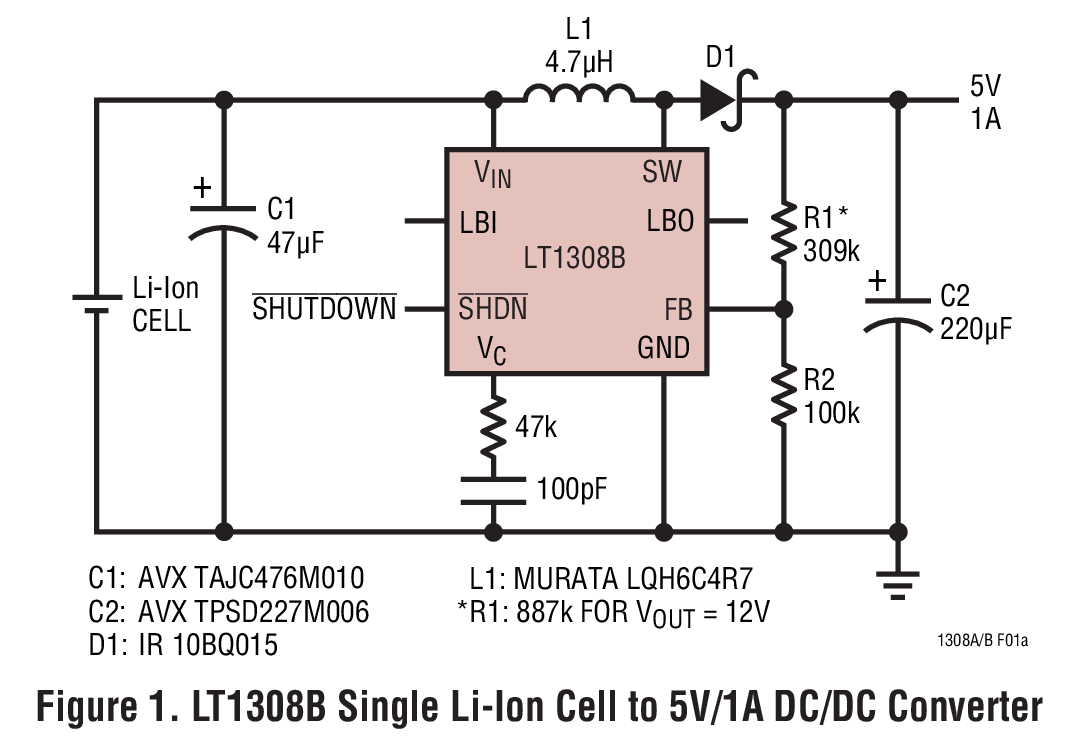

- 5V at 1A from a Single Li-Ion Cell
- 5V at 800mA in SEPIC Mode from Four NiCd Cells
- Fixed Frequency Operation: 600kHz
- Boost Converter Outputs up to 34V
- Starts into Heavy Loads
- Automatic Burst Mode™ Operation at Light Load (LT1308A)
- Continuous Switching at Light Loads (LT1308B)
- Low VCESAT Switch: 300mV at 2A
- Pin-for-Pin Upgrade Compatible with LT1308
- Lower Quiescent Current in Shutdown: 1µA (Max)
- Improved Accuracy Low-Battery Detector Reference: 200mV ±2%

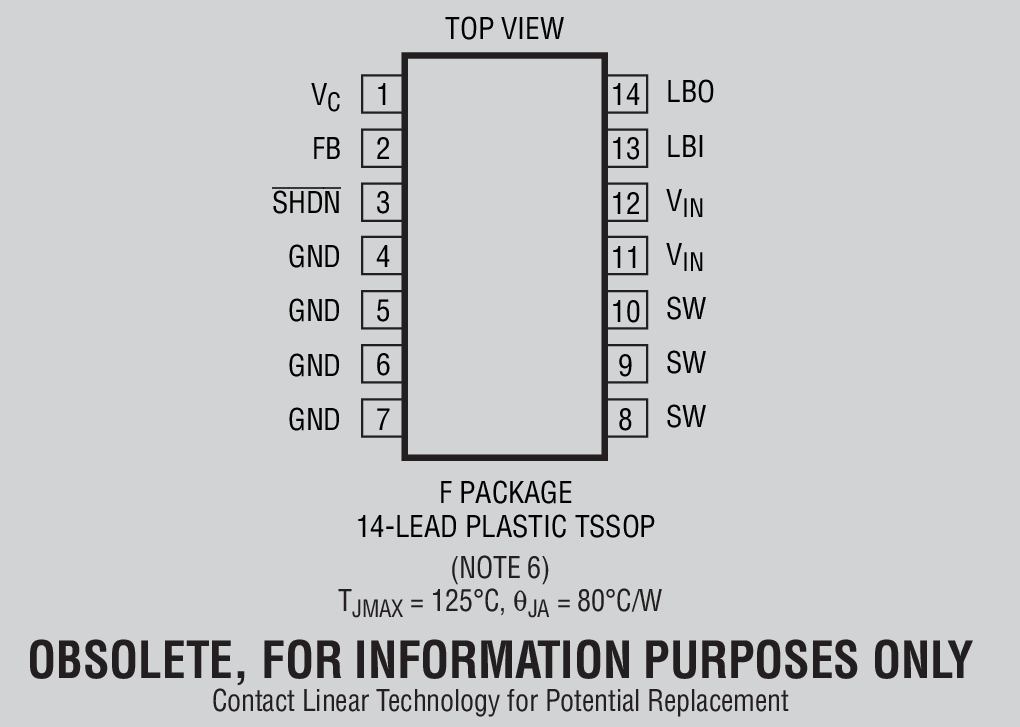

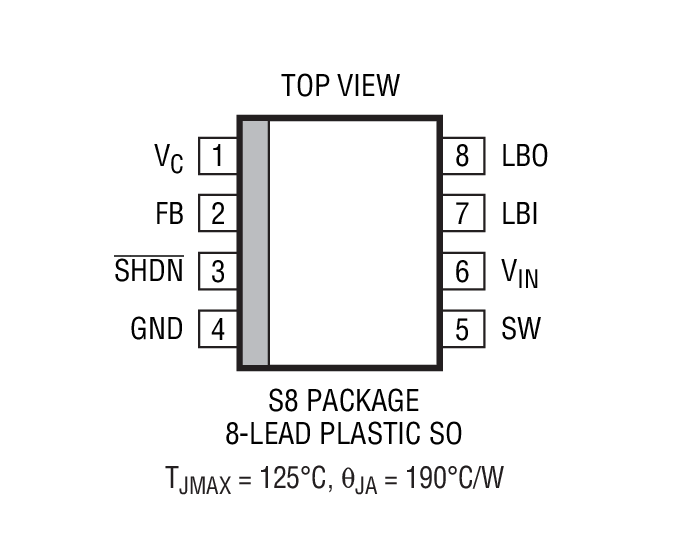

- Available in 8-Lead SO and 14-Lead TSSOP Packages
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

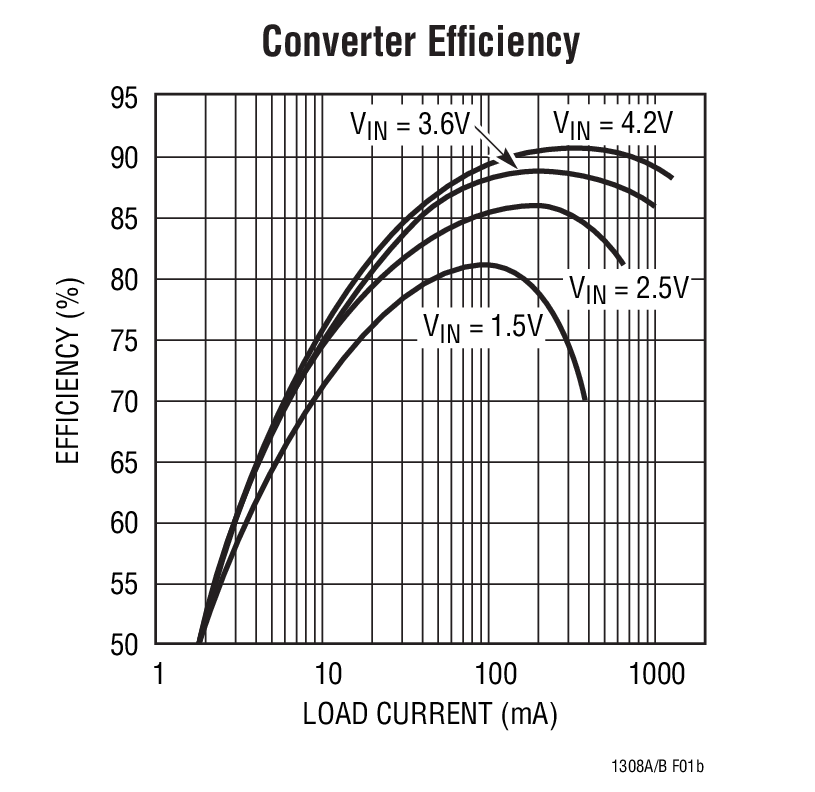

The LT1308A/LT1308B are micropower, fixed frequency step-up DC/DC converters that operate over a 1V to 10V input voltage range. They are improved versions of the LT1308 and are recommended for use in new designs. The LT1308A features automatic shifting to power saving Burst Mode operation at light loads and consumes just 140µA at no load. The LT1308B features continuous switching at light loads and operates at a quiescent current of 2.5mA. Both devices consume less than 1µA in shutdown.
Low-battery detector accuracy is significantly tighter than the LT1308. The 200mV reference is specified at ±2% at room and ±3% over temperature. The shutdown pin enables the device when it is tied to a 1V or higher source and does need to be tied to VIN as on the LT1308. An internal VCC clamp results in improved transient response and the switch voltage rating has been increased to 36V, enabling higher output voltage applications.
The LT1308A/LT1308B are available in the 8-lead SO and the 14-lead TSSOP packages.
| Features | |
| LT1308 | Not Recommended For New Designs |
| LT1308A | Improved Transient Response, Burst Mode |
| LT1308B | Improved Transient Response, Burst Mode Disabled |
