Features and Benefits

  • Output Disconnected from Input During Shutdown
  • Output Voltage Remains Regulated When VIN > VOUT
  • Controlled Input Current During Start-Up
  • 300kHz Current Mode PWM Operation
  • Can Be Externally Synchronized
  • Internal 2A Switches
  • Operates with VIN as Low as 1.8V
  • Automatic Burst Mode Operation at Light Loads
  • Quiescent Current: 160µA
  • Shutdown Current: 9µA Typ

Product Details

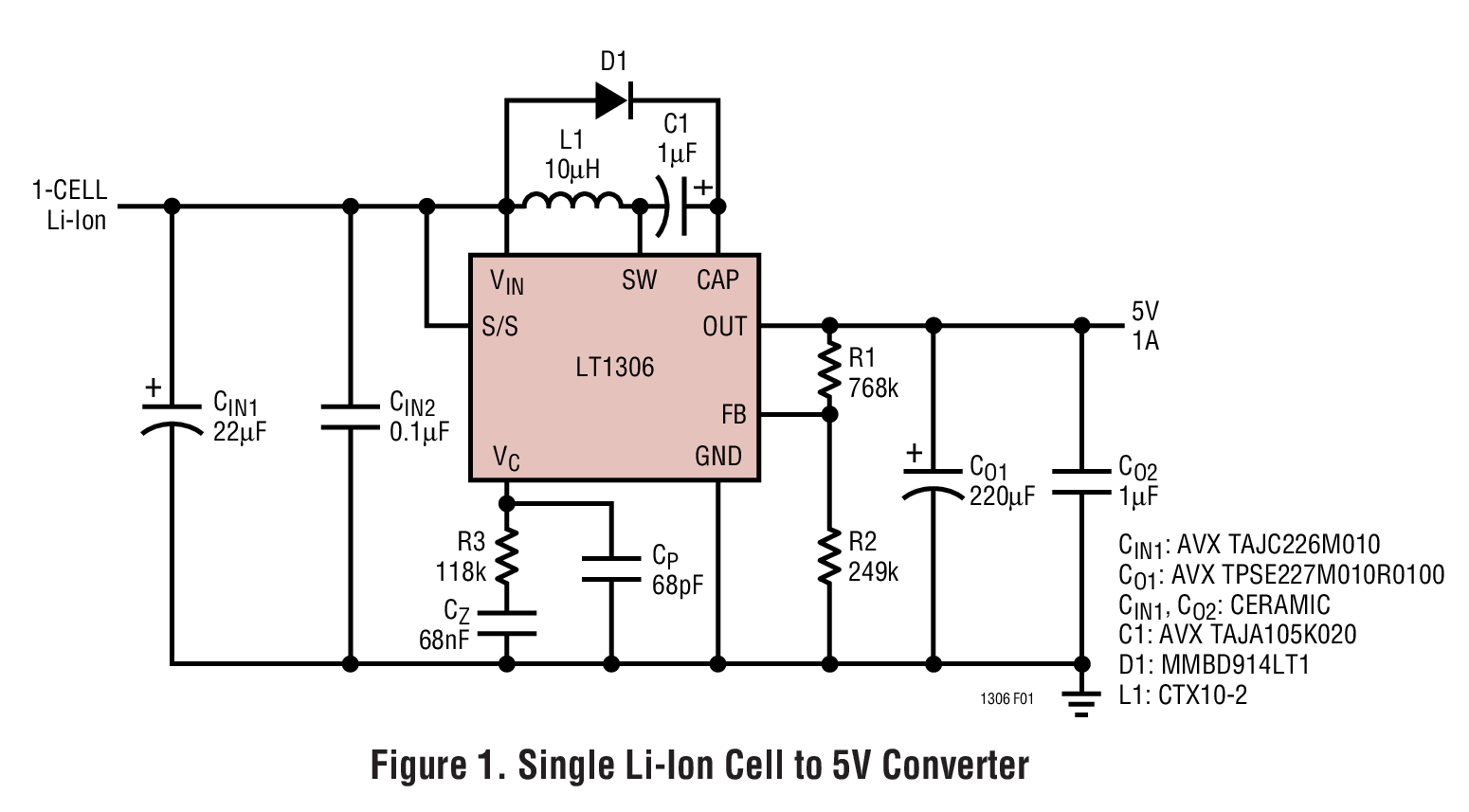

The LT1306 is a fully integrated, fixed frequency synchronous boost converter capable of generating 5V at 1A from a Li-Ion cell. The device contains both the main power switch and synchronous rectifier on chip and automatically disconnects the output from the input in shutdown, eliminating the need for external load disconnect circuitry. Additionally, the output remains regulated when VIN exceeds VOUT, allowing difficult step-up/step-down converter functions to be easily realized using a single inductor.

The internal 300kHz oscillator of the LT1306 can be easily synchronized to an external clock from 425kHz to 500kHz. This allows switching harmonics to be tightly controlled and eliminates any beat frequencies that may result from a multifrequency system. The LT1306 automatically shifts into power saving Burst Mode operation at light loads. At heavy loads the LT1306 operates in fixed frequency current mode. No-load quiescent current is 160µA and reduces to 9µA in shutdown mode.

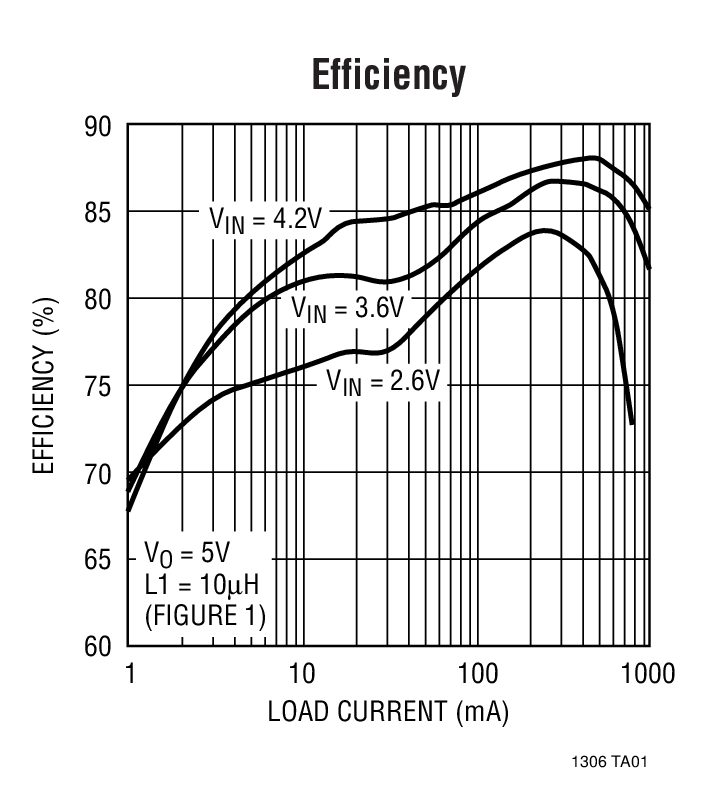

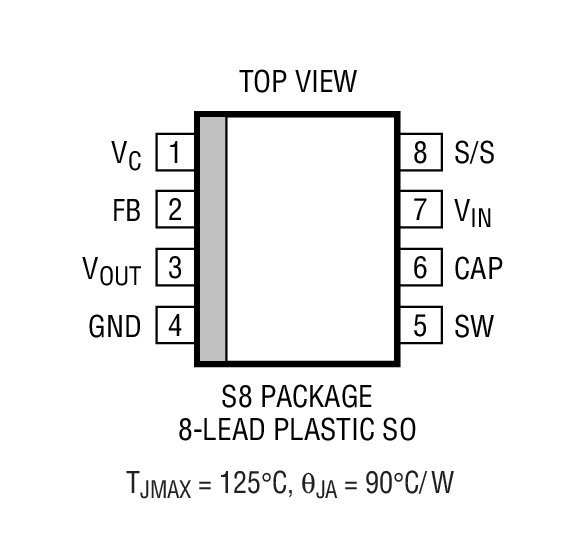

The LT1306 is available in an SO-8 package.


  • Satellite Phones
  • Portable Instruments
  • Personal Digital Assistants
  • Palmtop Computers

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations


LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.


Models for the following parts are available in LTspice:


Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LT1306ES8#PBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
LT1306ES8#TRPBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
Wafer Fabrication Data R303 Reliability Data
