  6. LT1305


Features and Benefits

  • 5V at 400mA from 2V Input
  • Supply Voltage As Low As 1.8V
  • 120µA Quiescent Current
  • Low-Battery Detector
  • Low VCESAT Switch: 310mV at 2A Typ
  • Uses Inexpensive Surface Mount Inductors

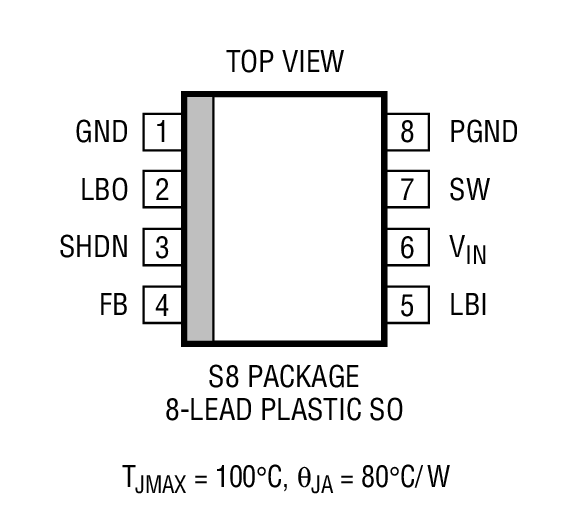

  • 8-Lead SO Package

Product Details

The LT1305 is a micropower step-up DC/DC converter that uses Burst Mode operation. Similar to the LT1303, the LT1305 features a 2A internal low-loss switch and can deliver up to four times the output power of the LT1303.

Quiescent current is only 120µA and the Shutdown pin further reduces current to 10µA. A low-battery detector provides an open-collector output that goes low when the input voltage drops below a preset level. The LT1305 is available in an 8-pin SO, easing board space requirements.

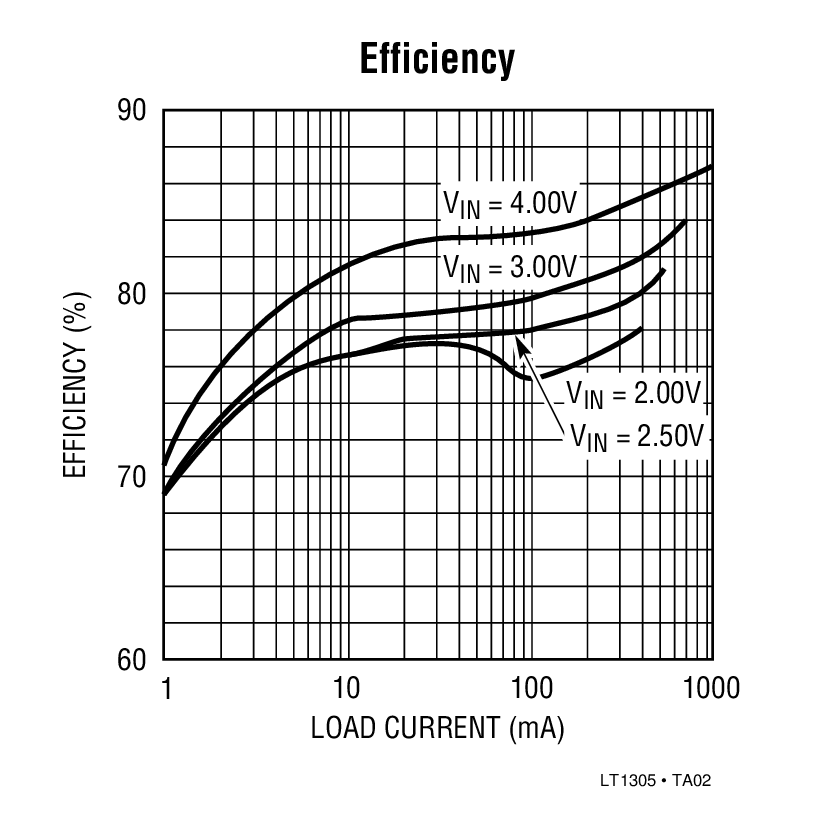

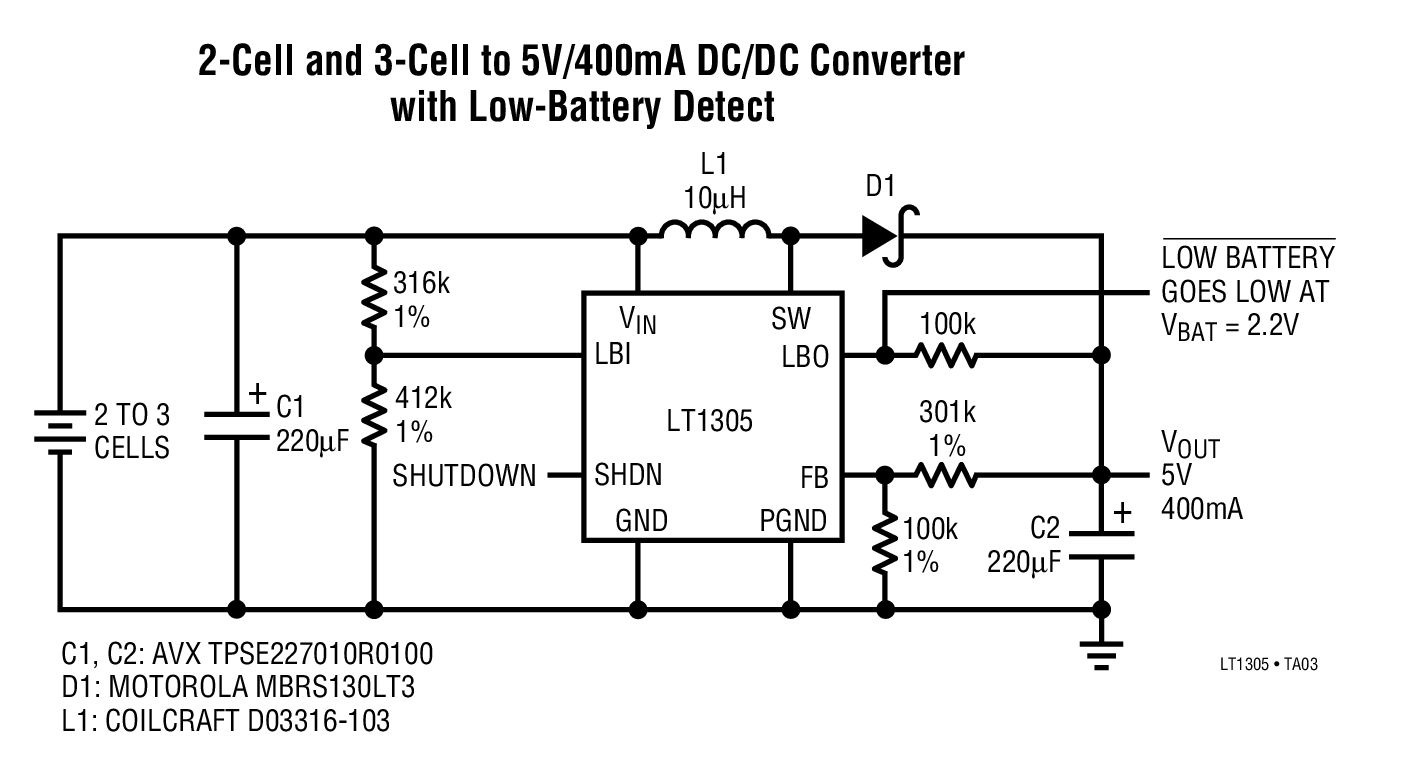

  • 2-Cell and 3-Cell to 5V Conversion
  • EL Panel Drivers
  • Portable Instruments

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
