Features and Benefits
- High Power Factor Over Wide Load Range with Line Current Averaging
- International Operation Without Switches
- Instantaneous Overvoltage Protection
- Minimal Line Current Dead Zone
- Typical 250µA Start-Up Supply Current
- Rejects Line Switching Noise
- Synchronization Capability
- Low Quiescent Current: 9mA
- Fast 1.5A Peak Current Gate Driver
The LT1248 provides active power factor correction for universal off-line power systems. By using fixed high frequency PWM current averaging, without the need for slope compensation, the LT1248 achieves far lower line current distortion with a smaller magnetic element than systems that use either peak-current detection or zero current switching approaches in both continuous and discontinuous modes of operation.
The LT1248 uses a multiplier containing a square gain function from the voltage amplifier to reduce the AC gain at light output load and thus maintains low line current distortion and high system stability. The LT1248 also provides filtering capability to reject line switching noise which can cause instability when fed into the multiplier. Line current dead zone is minimized with low bias voltage at the current input to the multiplier.
The LT1248 provides many protection features including peak current limiting and overvoltage protection, and can be operated at frequencies as high as 300kHz.
- Universal Power Factor Corrected Power Supplies
- Preregulators Up To 1500W
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
R293 Reliability Data3/22/2018
Tools & Simulations
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

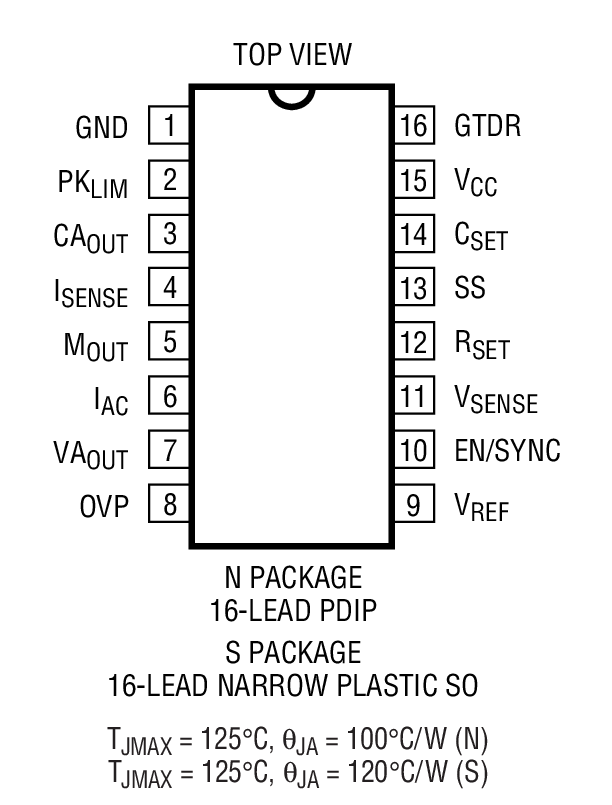

|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|LT1248CN#PBF||Material Declaration||Reliability Data||16-Lead PDIP (Narrow 0.30 Inch)|
|LT1248CS#PBF||Material Declaration||Reliability Data||16-Lead SOIC (Narrow 0.15 Inch)|
|LT1248CS#TRPBF||Material Declaration||Reliability Data||16-Lead SOIC (Narrow 0.15 Inch)|
|LT1248IN#PBF||Material Declaration||Reliability Data||16-Lead PDIP (Narrow 0.30 Inch)|
|LT1248IS#PBF||Material Declaration||Reliability Data||16-Lead SOIC (Narrow 0.15 Inch)|
|LT1248IS#TRPBF||Material Declaration||Reliability Data||16-Lead SOIC (Narrow 0.15 Inch)|
|Wafer Fabrication Data||R293 Reliability Data|
