LT1161

Quad Protected High-Side MOSFET Driver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $4.73
Features
  • 8V to 48V Power Supply Range
  • Protected from -15V to 60V Supply Transients
  • Fully Enhances N-Channel MOSFET Switches
  • Individual Short-Circuit Protection
  • Individual Automatic Restart Timers
  • Programmable Current Limit, Delay Time, and Auto-Restart Period
  • Voltage-Limited Gate Drive
  • Defaults to OFF State with Open Input
  • Flowthrough Input to Output Pinout

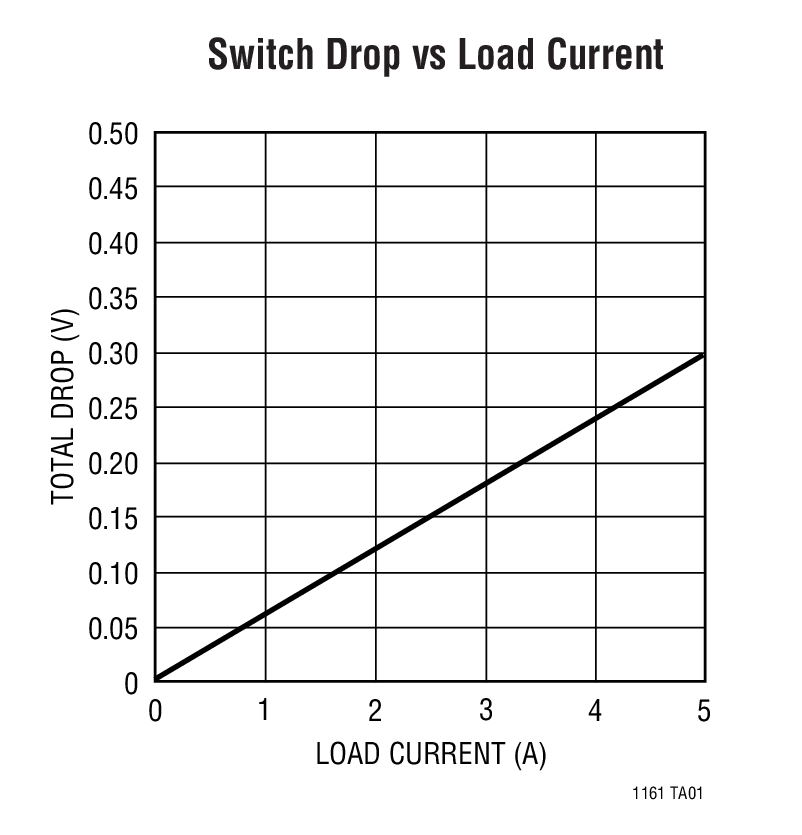

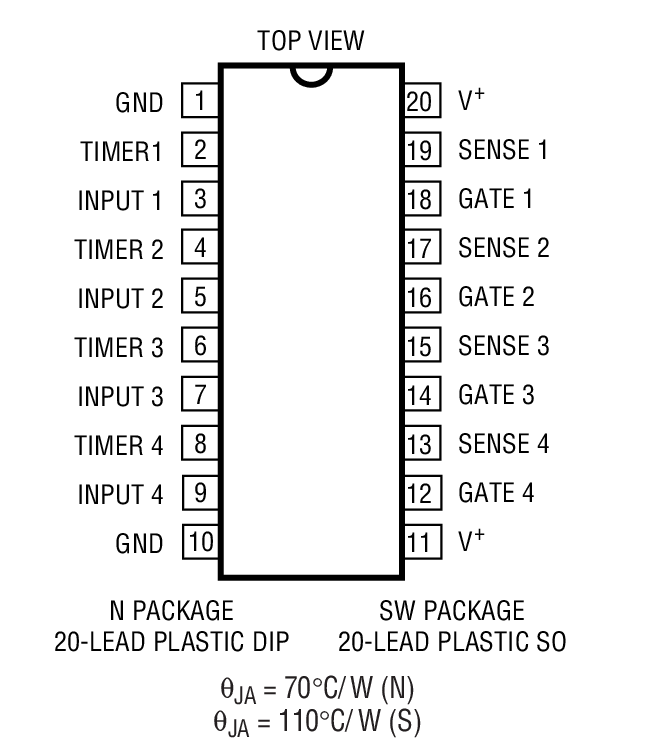

  • Available in 20-Lead DIP or SOL Package
Additional Details
show more Icon

The LT1161 is a quad high-side gate driver allowing the use of low cost N-channel power MOSFETs for high-side switching applications. It has four independent switch channels, each containing a completely self-contained charge pump to fully enhance an N-channel MOSFET switch with no external components.

Also included in each switch channel is a drain sense comparator that is used to sense switch current. When preset current level is exceeded, the switch is turned off. The switch remains off for a period of time set by an external timing capacitor and then automatically attempts to restart. If the fault is still present, this cycle repeats until the fault is removed, thus protecting the MOSFET.

The LT1161 has been specifically designed for harsh operating environments such as industrial, avionics, and automotive applications where poor supply regulation and/or transients may be present. The device will not sustain damage from supply voltages of –15V to 60V.

Applications

  • Industrial Control
  • Avionics Systems
  • Automotive Switches
  • Stepper Motor and DC Motor Control
  • Electronic Circuit Breaker
