Overview

Features and Benefits

  • Operates at Supply Voltages from 2V to 30V
  • Works with Surface Mount Inductors
  • 72kHz Oscillator
  • Only Three External Components Required
  • Step-Up or Step-Down Mode
  • Low-Battery Detector Comparator On-Chip
  • User Adjustable Current Limit
  • Internal 1A Power Switch
  • Fixed or Adjustable Output Voltage Versions

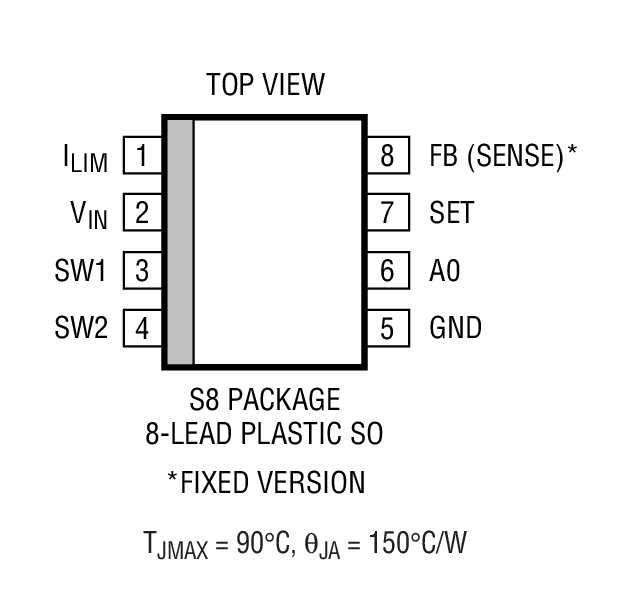

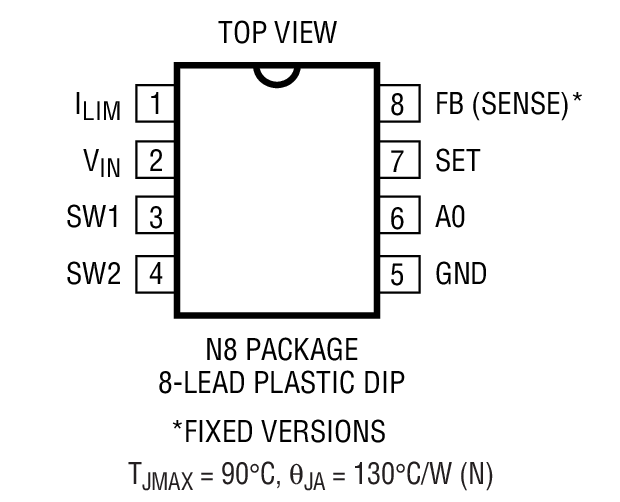

  • Space Saving 8-Pin MiniDIP or SO-8 Package

Product Details

The LT1111 is a versatile micropower DC/DC converter. The device requires only three external components to deliver a fixed output of 5V or 12V. Supply voltage ranges from 2V to 12V in step-up mode and to 30V in step-down mode. The LT1111 functions equally well in step-up, step-down, or inverting applications.

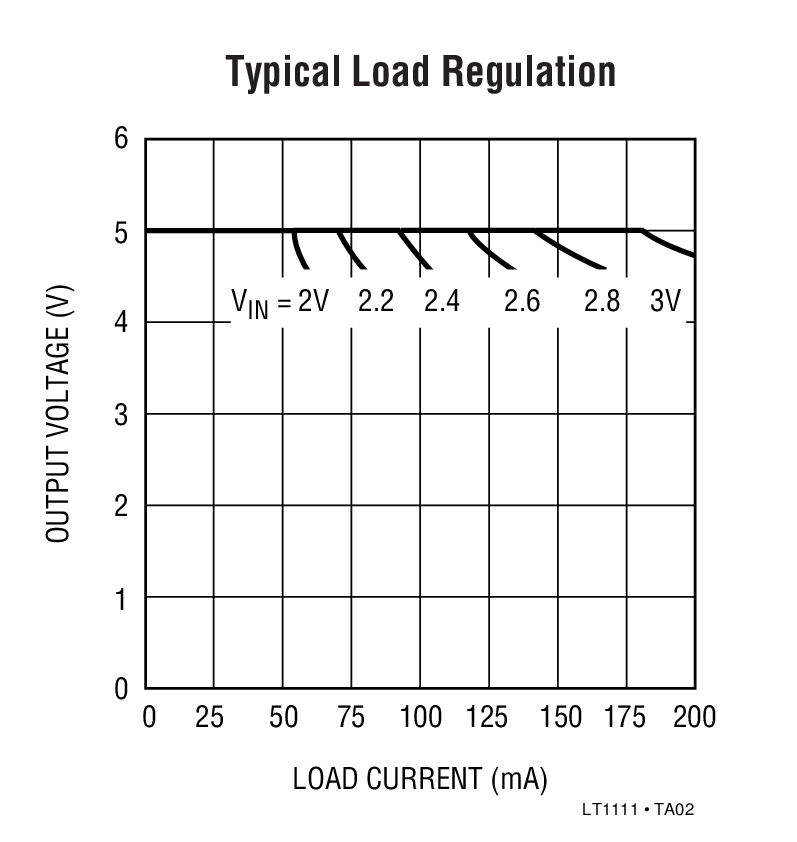

The LT1111 oscillator is set at 72kHz, optimizing the device to work with off-the-shelf surface mount inductors. The device can deliver 5V at 100mA from a 3V input in step-up mode or 5V at 200mA from a 12V input in step-down mode.

Switch current limit can be programmed with a single resistor. An auxiliary open-collector gain block can be configured as a low-battery detector, linear post regulator, undervoltage lock-out circuit, or error amplifier.

For input sources of less than 2V use the LT1110.

Applications

  • 3V to 5V, 5V to 12V Converters
  • 9V to 5V, 12V to 5V Converters
  • Remote Controls
  • Peripherals and Add-On Cards
  • Battery Backup Supplies
  • Uninterruptible Supplies
  • Laptop and Palmtop Computers
  • Cellular Telephones
  • Portable Instruments
  • Flash Memory VPP Generators

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

LTspice

Models for the following parts are available in LTspice:

LT1111
LT1111-12
LT1111-5

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
LT1111CN8#PBF Material Declaration Reliability Data 8-Lead PDIP (Narrow 0.3 Inch)
LT1111CN8-12#PBF Material Declaration Reliability Data 8-Lead PDIP (Narrow 0.3 Inch)
LT1111CN8-5#PBF Material Declaration Reliability Data 8-Lead PDIP (Narrow 0.3 Inch)
LT1111CS8#PBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
LT1111CS8#TRPBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
LT1111CS8-12#PBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
LT1111CS8-12#TRPBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
LT1111CS8-5#PBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
LT1111CS8-5#TRPBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
LT1111IS8#PBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
LT1111IS8#TRPBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
Wafer Fabrication Data R177 Reliability Data
