DS3508

I²C, 8-Channel Gamma Buffer with EEPROM

Low-Power, Low-Cost LCD Gamma Generator with EEPROM

Viewing:

Part Details

  • 8-Bit Gamma DACs, 8 Channels
  • 1 Byte EEPROM and 1 Byte SRAM per Channel
  • Ultra-Low Power (2mA IDD, typ)
  • 400kbps I²C Interface
  • 9.0V to 15.5V Analog Supply
  • 2.7V to 5.5V Digital Supply
  • 20-Pin TSSOP Package
  • Address Pin Allows Two DS3508s to Reside on the Same I²C Bus
DS3508
I²C, 8-Channel Gamma Buffer with EEPROM

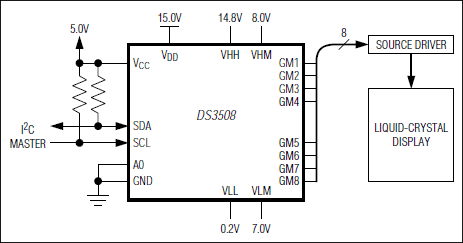

DS3508: Typical Operating Circuit
