DS28E80
Gamma Radiation Resistant 1-Wire Memory
Show MoreLow-Cost Identification or Calibration Solution for Medical Sensors and Accessories with Single-Contact Operation
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- High Gamma Resistance Allows User-Programmable
Manufacturing or Calibration Data Before Medical
Sterilization
- Resistant Up to 75kGy (kiloGray) of Gamma Radiation
- Reprogrammable 248 Bytes of User Memory
- Lower Block Size Provides Greater Flexibility in
Programming User Memory
- Memory is Organized as 8-Byte Blocks
- Each Block Can Be Written 8 Times
- User-Programmable Write Protection for Individual Memory Blocks
- Advanced 1-Wire Protocol Minimizes Interface to Just Single Contact
- Compact Package and Single IO Interface Reduces
Board Space and Enhances Reliability
- Unique Factory-Programmed, 64-Bit Identification Number
- Communicates at 1-Wire Standard Speed (15.3kbps max) and Overdrive Speed (76kbps max)
- Operating Range: 3.3V ±10%, -40°C to + 85°C Reading, 0°C to +50°C Writing
- ±8kV HBM ESD Protection (typ) for IO Pin
- 6-Pin TDFN Package

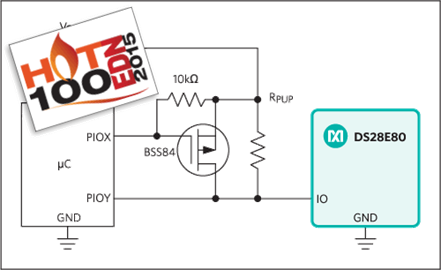

The DS28E80 is a user-programmable nonvolatile memory chip. In contrast to the floating-gate storage cells, the DS28E80 employs a storage cell technology that is resistant to gamma radiation. The DS28E80 has 248 bytes of user memory that are organized in blocks of 8 bytes. Individual blocks can be write-protected. Each memory block can be written 8 times. The DS28E80 communicates over the single-contact 1-Wire® bus at standard speed or overdrive speed. Each device has its own guaranteed unique 64-bit registration number that is factory programmed into the chip. The communication follows the 1-Wire protocol with a 64-bit registration number acting as node address in the case of a multiple-device 1-Wire network.
Applications
- Identification and Calibration Medical Tools/Accessories
- Identification of Medical Consumables
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
DS28E80
Documentation
Filters
1 Applied
Reliability Data
1
26.35K
Technical Articles
4
HTML
HTML
HTML
HTML
Design Note
2
HTML
HTML
Documentation
Data Sheet 1
Reliability Data 1
Design Note 2
Technical Articles 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
DS28E80Q+T | 6-LFCSP-3X3X0.75 |
|
|
DS28E80Q+U | 6-LFCSP-3X3X0.75 |
|
- DS28E80Q+T
- Pin/Package Drawing
- 6-LFCSP-3X3X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- DS28E80Q+U
- Pin/Package Drawing
- 6-LFCSP-3X3X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Software & Part Ecosystem
Parts | Product Life Cycle | Description | ||
---|---|---|---|---|
1-Wire Interface Products1 |
||||
PRODUCTION |
Single-Channel 1-Wire Master with Adjustable Timing and Sleep Mode |
|||
1-Wire Memory (EPROM, EEPROM, ROM)1 |
||||
PRODUCTION |
1024-Bit 1-Wire EEPROM |
|||
1-Wire Secure Authenticators1 |
||||
RECOMMENDED FOR NEW DESIGNS |
DeepCover Secure Authenticator with 1-Wire SHA-256 and 512-Bit User EEPROM |
Parts | Product Life Cycle | Description |
---|---|---|
RECOMMENDED FOR NEW DESIGNS |
DeepCover Radiation Resistant 1-Wire Secure Authenticator |
Evaluation Kits 1
DS28E80EVKIT
Evaluation System for DS28E80
Product Detail
The DS28E80 evaluation system (EV system) consists of a single evaluation kit (EV kit) that includes a package of five DS28E80 devices in a 6-pin TDFN package, a DS9120Q+ socket board with RJ11 cable, and a DS9481R-3C7+ USB-to-1-Wire®/iButton® adapter with USB cable for PC connectivity. This EV system provides the special hardware and software system to exercise the features of the DS28E80. The evaluation software runs under Windows® 8, Windows 7, Windows Vista®, and Windows XP® operating systems (32-bit and 64-bit versions). It provides a handy user interface to exercise the DS28E80 features.
The DS28E80 is a user-programmable nonvolatile memory chip. In contrast to the floating-gate storage cells, the DS28E80 employs a storage-cell technology that is gamma radiation resistant. The DS28E80 has 248 bytes of user memory, organized in blocks of 8 bytes. Individual blocks can be write-protected. Each memory block can be written eight times. The DS28E80 communicates over the single-contact 1-Wire bus at standard speed or overdrive speed. Each device has its own guaranteed unique 64-bit registration number factory programmed into the chip. The communication follows the 1-Wire protocol with a 64-bit registration number acting as node address in the case of a multiple-device 1-Wire network.
Applications
- Identification and Calibration Medical Tools/Accessories
- Identification of Medical Consumables
