DS28E01-100

1Kb Protected 1-Wire EEPROM with SHA-1 Engine

Show More showmore-icon

Provides Low-Cost, World-Class Secure Authentication of Peripherals and Systems

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 5
1ku List Price Starting From $1.25
Features
  • 1024 Bits of EEPROM Memory Partitioned Into Four Pages of 256 Bits
  • On-Chip 512-Bit SHA-1 Engine to Compute 160-Bit Message Authentication Codes (MAC) and to Generate Secrets
  • Write Access Requires Knowledge of the Secret and the Capability of Computing and Transmitting a 160-Bit MAC as Authorization
  • User-Programmable Page Write Protection for Page 0, Page 3, or All Four Pages Together
  • User-Programmable OTP EPROM Emulation Mode for Page 1 ("Write to 0")
  • Communicates to Host with a Single Digital Signal at 15.3kbps or 90.9kbps Using 1-Wire Protocol
  • Switchpoint Hysteresis and Filtering to Optimize Performance in the Presence of Noise
  • Reads and Writes Over a Wide Voltage Range of 2.8V to 5.25V from -40°C to +85°C
  • 6-Lead TSOC and TDFN or 2-Lead TO-92 and SFN Packages

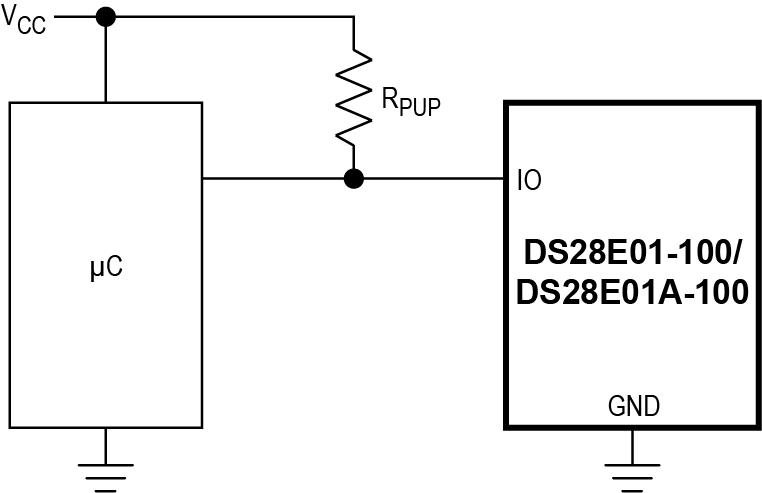

Additional Details
show more Icon

The DS28E01-100 combines 1024 bits of EEPROM with challenge-and-response authentication security implemented with the ISO/IEC 10118-3 Secure Hash Algorithm (SHA-1). The 1024-bit EEPROM array is configured as four pages of 256 bits with a 64-bit scratchpad to perform write operations. All memory pages can be write protected, and one page can be put in EPROM-emulation mode, where bits can only be changed from a 1 to a 0 state. Each DS28E01-100 has its own guaranteed unique 64-bit ROM registration number that is factory lasered into the chip. The DS28E01-100 communicates over the single-contact 1-Wire® bus. The communication follows the standard 1-Wire protocol with the registration number acting as the node address in the case of a multidevice 1-Wire network.

Applications

  • Accessory/PCB Identification
  • Identification and authentication of consumables
  • Ink and Toner Print Cartridge Identification
  • Intellectual Property, License Management
  • Sensor Calibration and Authentication
  • System Programmable Feature Control
Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA). To request an NDA, click here.
Part Models 5
1ku List Price Starting From $1.25

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
DS28E01-100+
  • HTML
  • HTML
DS28E01P-100+
  • HTML
  • HTML
DS28E01P-100+T
  • HTML
  • HTML
DS28E01Q-100+T&R
  • HTML
  • HTML
DS28E01Q-100+U
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 22, 2020

- 1998N

ASSEMBLY

DS28E01-100+

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 22, 2020

- 1998N

arrow down

ASSEMBLY

DS28E01-100+

PRODUCTION

Evaluation Kit

Evaluation Kits 2

DS28E01PMOD

Evaluation Kit for the DS28E01-100 Plug-In Module

zoom

DS28E01PMOD

Evaluation Kit for the DS28E01-100 Plug-In Module

Evaluation Kit for the DS28E01-100 Plug-In Module

Features and Benefits

  • Interfaces to Avnet-Made Xilinx Spartan-6 LX16 Evaluation Kit (Part No.: AES-S6EV-LX16-G)
  • Designed for Use with PicoBlaze SHA-1 Authentication Design
  • On-Board RPUP for 1-Wire Communication to a FPGA I/O at 3.3V
  • 0.1in-Spaced Pin Breakout of DS28E01-100 TDFN
  • Board Size: 1.06in x 0.64in

Product Detail

The DS28E01PMOD provides the necessary hardware to interface a DS28E01-100 1Kb protected 1-Wire® EEPROM with a SHA-1 engine to a Xilinx Spartan®-6 LX16 Evaluation Kit made by Avnet. By using the DS28E01PMOD and the PicoBlaze™ SHA-1 Authentication Design for the Xilinx Spartan-6 LX16 Evaluation Kit, a secure SHA-1 challenge-and-response authentication can be implemented. The PicoBlaze SHA-1 Authentication Design is based upon the Xilinx XAPP780 application note, FPGA IFF Copy Protection Using Dallas Semiconductor/Maxim DS2432 Secure EEPROMs.

Applications

  • Accessory/PCB Identification
  • Identification and authentication of consumables
  • Ink and Toner Print Cartridge Identification
  • Intellectual Property, License Management
  • Sensor Calibration and Authentication
  • System Programmable Feature Control

DSAUTHSK

Evaluation Kit for the DS28E01-100, DS28CN01, and DS2460

zoom

DSAUTHSK

Evaluation Kit for the DS28E01-100, DS28CN01, and DS2460

Evaluation Kit for the DS28E01-100, DS28CN01, and DS2460

Features and Benefits

  • Complete Development System for Applications Using Maxim SHA-1 Products
  • Starter Kit Board Includes Maxim's DS2460, DS2482-100, DS28CN01, and DS28E01 Devices for Rapid Development
  • Other and Future Maxim SHA-1 Authenticators Supported Through Expansion Ports
  • Embedded Host Development Options Supported with PIC18F4550 µC and Xilinx XC3S400A FPGA
  • PC Connectivity with RS-232 and USB 2.0
  • JTAG Connector Mates to Xilinx Platform Cables Through a Single Ribbon Cable
  • 120-Pin Expansion Port for FPGA
  • In-Circuit Debugger Port for PIC18F4550
  • 40-Pin Expansion Port for PIC18F4550 Periphery
  • Extension Ports for I²C and 1-Wire Bus
  • Jumper Configurable for µC or FPGA as I²C Master
  • Jumper Configurable for µC, FPGA, DS2482-100, or External 1-Wire Bus Master
  • Six General-Purpose Pushbuttons and Indicator LEDs
  • LED Indicators for Power and FPGA Load Done
  • Free Evaluation Software Available by NDA

Product Detail

The secure authentication starter kit is a highly programmable hardware/software system for development, lab testing, and demonstration of embedded applications that use Maxim's SHA-1-based secure authentication products. The system supports multiple options for demonstrating and developing both host SHA-1 computation and associated host communication with Maxim's 1-Wire® and I²C-based SHA-1 slave ICs. Multiple options are supported for host SHA-1 computation development including fixed function processing with the Maxim DS2460, microcontroller(FC)-based with a Microchip PIC18F4550, and a Maxim-developed SHA-1 Verilog implementation (DSSHA1) used in conjunction with a Xilinx Spartan®-3A XC3S400A FPGA. Development capabilities for the host interface to Maxim's SHA-1 slaves are similarly supported with multiple options including the Maxim DS2482-100 I²C-to-1-Wire line driver, software generation of 1-Wire waveforms with the PIC18F4550, and a Verilog implementation (DS1WM) with the Xilinx FPGA. The EV kit can be used alone or controlled with a PC over RS-232 or USB interfaces. Microcontroller software can be installed and tested through an in-circuit debugger port. A JTAG port allows changing the FPGA programming through standard Xilinx development tools. With its expansion ports (40 pins for the microcontroller, 120 pins for the FPGA), the board can be the development platform for complex designs.
The free software/firmware is available by request at https://support.maximintegrated.com/1-Wire.

Applications

  • Accessory and Peripheral Identification
  • Equipment Registration and License Management
  • Medical Sensor Authentication and Calibration
  • Network Node Identification
  • Printed Circuit Board Unique Serialization
  • Printer Cartridge Configuration and Monitoring
  • System Intellectual Property Protection
