Overview

Features and Benefits

  • Symmetric-Key-Based Bidirectional Secure Authentication Model Based on SHA-256
  • Strong Authentication with a High-Bit-Count User-Programmable Secret and Input Challenge
  • 512 Bits of User EEPROM Partitioned Into Two Pages of 256 Bits
  • User-Programmable and Irreversible EEPROM Protection Modes Including Write and Read Protect and OTP/EPROM Emulation
  • Unique Factory-Programmed, 64-Bit Identification Number
  • Single-Contact 1-Wire Interfac
  • Operating Range: -40℃ to +85℃
  • ±8kV HBM ESD Protection (typ)
  • Durable Stainless-Steel Enclosure Withstands Harsh Environments and Conditions

Product Details

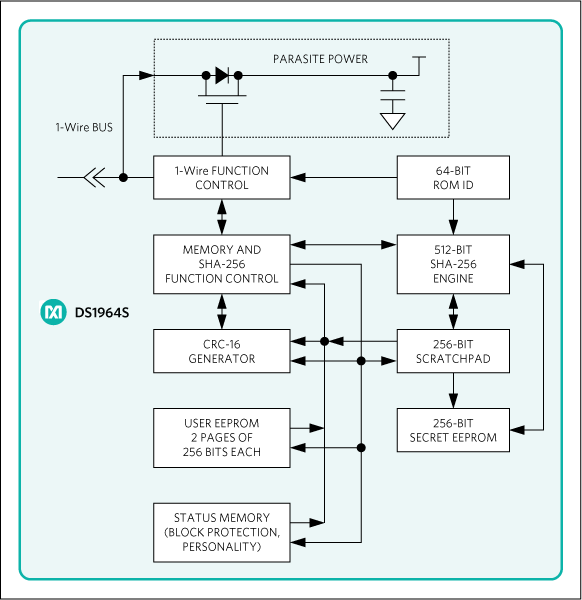

DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible. The DeepCover Secure Authenticator i Button® (DS1964S) combines crypto-strong bidirectional secure challenge-and-response authentication functionality with an implementation based on the FIPS 180-3-specified Secure Hash Algorithm (SHA-256). A 512-bit user-programmable EEPROM array provides nonvolatile storage of application data. Additional protected memory holds a read-protected secret for SHA-256 operations and settings for memory protection control. Each device has its own guaranteed unique 64-bit ROM identification number (ROM ID) that is factory programmed into the chip. This unique ROM ID is used as a fundamental input parameter for cryptographic operations and also serves as an electronic serial number within the application. A bidirectional security model enables two-way authentication between a host system and slave-embedded DS1964S. Slave-to-host authentication is used by a host system to securely validate that an attached or embedded DS1964S is authentic. The DS1964S communicates over the single-contact 1-Wire® bus at overdrive speed. The communication follows the 1-Wire protocol with the ROM ID acting as node address in the case of a multidevice 1-Wire network.

Applications

  • Authentication of Consumables
  • Secure Feature Control

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
