DS1925
iButton High-Density Temperature Logger with 122KB Data-Log Memory
Show More
Provides High-Quality Temperature Exposure Records of an End Product or Process
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Provides High-Quality Temperature Exposure Assessment of an End Product
- Temperature Measurement Accuracy of ±0.5°C with Storage for Up to 125,440 Timestamped Values
- Flexibility to Monitor and Data-Log Long Duration Exposures with Short-Duration Time Intervals
- Unique Factory-Lasered 64-Bit Serial Number Ensures Absolute Traceability Because No Two Parts Are Alike
- Highly Configurable Options for Data Logging and Security
- Programmable Sample Rates from 5min to 273hrs
- Programmable Recording Start Delay After Elapsed Time or Upon a Temperature Alarm Trip Point
- Two-Level Password Protection of All Memory and Configuration Registers
- Measure and Report Internal Battery Level and Output-Logged Data if a Battery is Depleted
- Physically Robust, Operationally Efficient
- Durable Stainless-Steel Enclosure Withstands Harsh Environments and Conditions
- Communicates to a Host System with the Single-Contact 1-Wire Interface
- -40°C to +85°C Operating Temperature Range
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

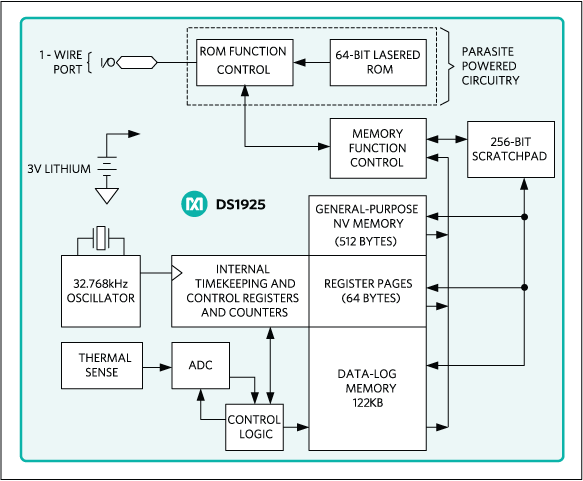

The iButton® temperature logger (DS1925) is a rugged, self-sufficient system that measures temperature and records the result in a protected memory section. The recording is done at a user-defined rate. A total of 122K 8-bit readings or 61K 16-bit readings taken at equidistant intervals ranging from 5min to 273hrs can be stored. In addition, there are 512 bytes of nonvolatile memory for storing application-specific information. A mission to collect data can be programmed to begin immediately, after a user-defined delay, or after a temperature alarm. Access to the memory and control functions can be password protected. The DS1925 is configured and communicates with a host computing device through the serial 1-Wire® protocol, which requires only a single data lead and a ground return. Every DS1925 is factory-lasered with a guaranteed unique 64-bit registration number that allows for absolute traceability. The durable stainless-steel package is highly resistant to environmental hazards such as dirt, moisture, and shock. Accessories permit the DS1925 to be mounted on almost any object, including containers, pallets, and bags.
Applications
- Bio Science
- Food Safety
- Pharmaceutical and Medical Products High-Temperature Logging (Process Monitoring, Industrial Monitoring)
- Temperature Logging in Cold Chain
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
DS1925
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Reliability Data
-
User Guide
-
Design Note
-
Application Note
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
1
Reliability Data
1
60.47K
User Guide
3
Design Note
1
HTML
Application Note
1
HTML
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Application Note 1
Design Note 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| DS1925L-F5# |
<u>i</u>Button F5 MicroCan
|
|
- DS1925L-F5#
- Pin/Package Drawing
-
<u>i</u>Button F5 MicroCan
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 12, 2020
- 2021
ASSEMBLY
DS1925L-F5#
PRODUCTION
Feb 27, 2019
- 1919
ELECTRICAL DATASHEET
DS1925L-F5#
PRODUCTION
Jan 4, 2018
- 1755
ASSEMBLY
DS1925L-F5#
PRODUCTION
Jul 19, 2016
- 1594_AMENDED
ASSEMBLY
DS1925L-F5#
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 12, 2020
- 2021
ASSEMBLY
Feb 27, 2019
- 1919
ELECTRICAL DATASHEET
Jan 4, 2018
- 1755
ASSEMBLY
Jul 19, 2016
- 1594_AMENDED
ASSEMBLY
Evaluation Kits 1
DS1925EVKIT
Evaluation Kit for the DS1925
Features and Benefits
- Starter Kit Evaluates the DS1925L Thermochron iButton Temperature Recording Device with a Microsoft Windows-Based PC
- Easy Setup with USB Adapter
- Free Download of 1-Wire Drivers and OneWireViewer Demonstration Software
- Compatible with Other Thermochron iButtons: DS1921, DS1922L, DS1922T, DS1922E, and DS1923 (Not Included)
Product Detail
The DS1925EVKIT is a Thermochron iButton® starter kit that provides the basic hardware for a quick evaluation of Maxim’s Thermochron iButton family that communicates using the 1-Wire protocol. The kit uses a USB port of a PC running Windows® operation system. The kit includes DS1925L Thermochron iButton and all the hardware required to communicate with it. The DS1925L is a high-capacity Thermochron capable of 122K 8-bit readings or 61K 16-bit readings taken at equal distances. The easy setup process includes the free downloadable 1-Wire® drivers and the OneWireViewer demonstration software to communicate easily with iButtons through the PC’s USB port. Visit the download site for the free 1-Wire drivers and bundled OneWireViewer.
For developers who wish to create custom iButton ecosystems, Maxim provides iButton design resources with links for software resources and iButton accessories found here.
Applications
- Bio Science
- Food Safety
- Pharmaceutical and Medical Products High-Temperature Logging (Process Monitoring, Industrial Monitoring)
- Temperature Logging in Cold Chain
