Overview
Features and Benefits
- Power-fail detection
- Pushbutton reset
- Watchdog timer
- Active high and low resets
- Quiescent current less than 35µA
- Operating ranges:
- -40°C to +85°C
- 3.0V with 20% tolerance or
- 3.3V with 10% or 20% tolerance
Product Details

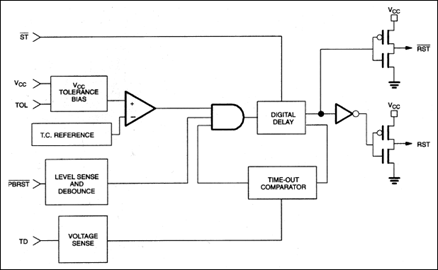

The DS1832 3.3-volt MicroMonitor Chip is pin-compatible with the industry-standard DS1232 and operates in both 3.0- and 3.3-volt environments. Like the DS1232, the DS1832 monitors power supply, software execution, and an external pushbutton override. It is designed with CMOS outputs and is capable of maintaining a valid output on the active low reset to 0 volts with a 100kΩ pull-down resistor. On power-up, the DS1832 holds reset for 250ms to allow the system to stabilize.
Moving a design from 5 volts to 3.3 volts can be as simple as substituting the DS1832 for the DS1232 and removing the pull-up resistor on the active low reset. This makes it a versatile, space- and cost-saving monitor for any processor-driven system requiring reliable operation.
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
DS1832 Reliability Data1/12/2023
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| DS1832+ | Material Declaration | Reliability Data | Plastic Dual-In-Line, Narrow (0.3in) | |
| DS1832S+ | Material Declaration | Reliability Data | Small-Outline IC, Narrow (0.15in) | |
| DS1832S+T&R | Material Declaration | Reliability Data | Small-Outline IC, Narrow (0.15in) | |
| DS1832U+ | Material Declaration | Reliability Data | Micro-MAX, Thin Shrink Small-Outline | |
| DS1832U+T&R | Material Declaration | Reliability Data | Micro-MAX, Thin Shrink Small-Outline | |
| Wafer Fabrication Data | DS1832 Reliability Data |
