Features and Benefits

  • Power-fail detection
  • Resets system during power transients
  • Push-pull active high reset
  • 150ms stabilization pause
  • Maximum quiescent current of 35µA
  • Operating ranges:
    • 3.3V with 5%, 10% or 20% tolerance
    • -40°C to +85°C

Product Details

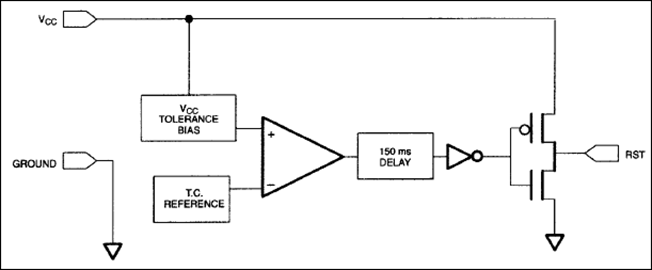

The DS1812 (5V) and DS1817 (3.3V) EconoResets are simple three-pin voltage monitors and power-on resets that hold reset for 150ms for stabilization after power returns to tolerance. The voltage monitor uses precision temperature reference and comparator circuits that detect out-of-tolerance conditions and generate an active high reset.

The output has a push-structure capable of maintaining a valid output to 0 volts with a 100kΩ pull-down resistor. The low-power circuit has a quiescent current consumption of only 40 micro-amps.

The DS1817 replaces discrete components and saves space, particularly in the new SOT-23 package. EconoResets can benefit any system that requires reliable processor operation, especially consumer products like printers, HVAC, energy management, cellular telephones, PDAs, and set-top boxes.

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
DS1817R-10+T&R Material Declaration Reliability Data 3-SOT_23-N/A
DS1817R-20+T&R Material Declaration Reliability Data 3-SOT_23-N/A
Wafer Fabrication Data DS1817 Reliability Data
